2 and 4 Pole Test Plug

Test plugs for use on LSA-type connection and disconnection modules. Ideal for producing test lead assemblies for use in voice, broadcast and other communications environments

Specification PDF

Test plugs for use on LSA-type connection and disconnection modules. Ideal for producing test lead assemblies for use in voice, broadcast and other communications environments

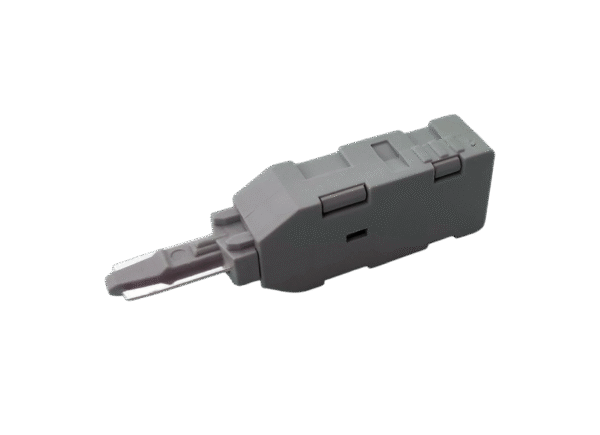

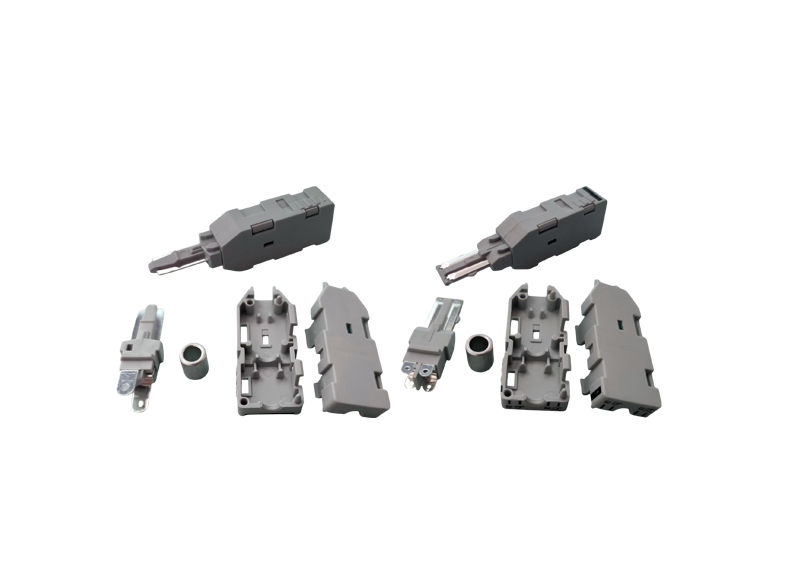

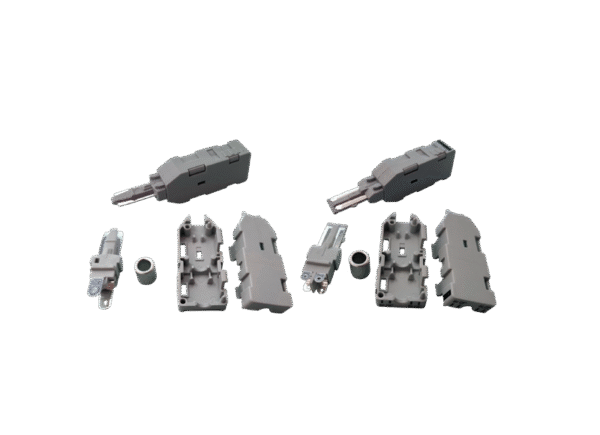

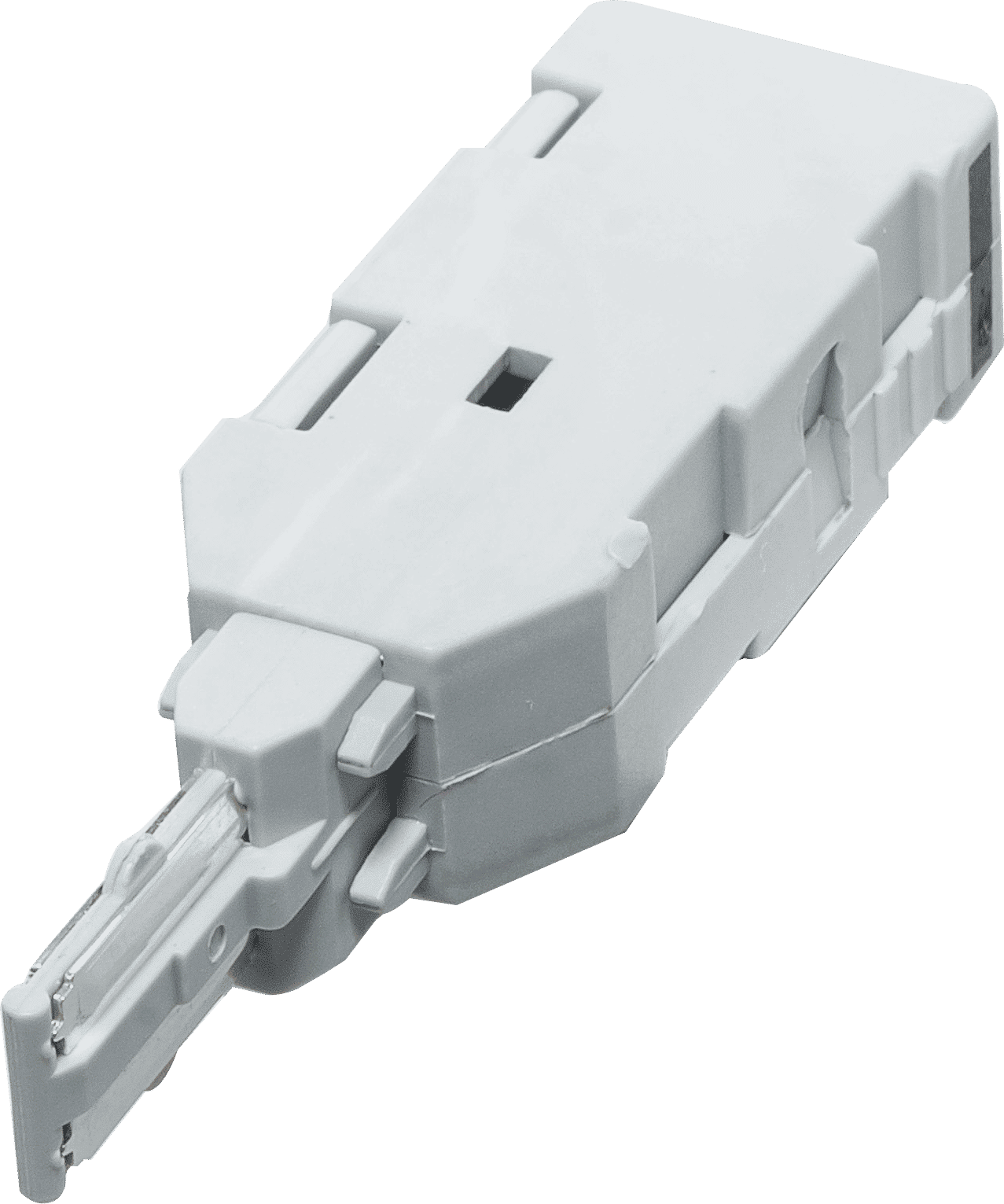

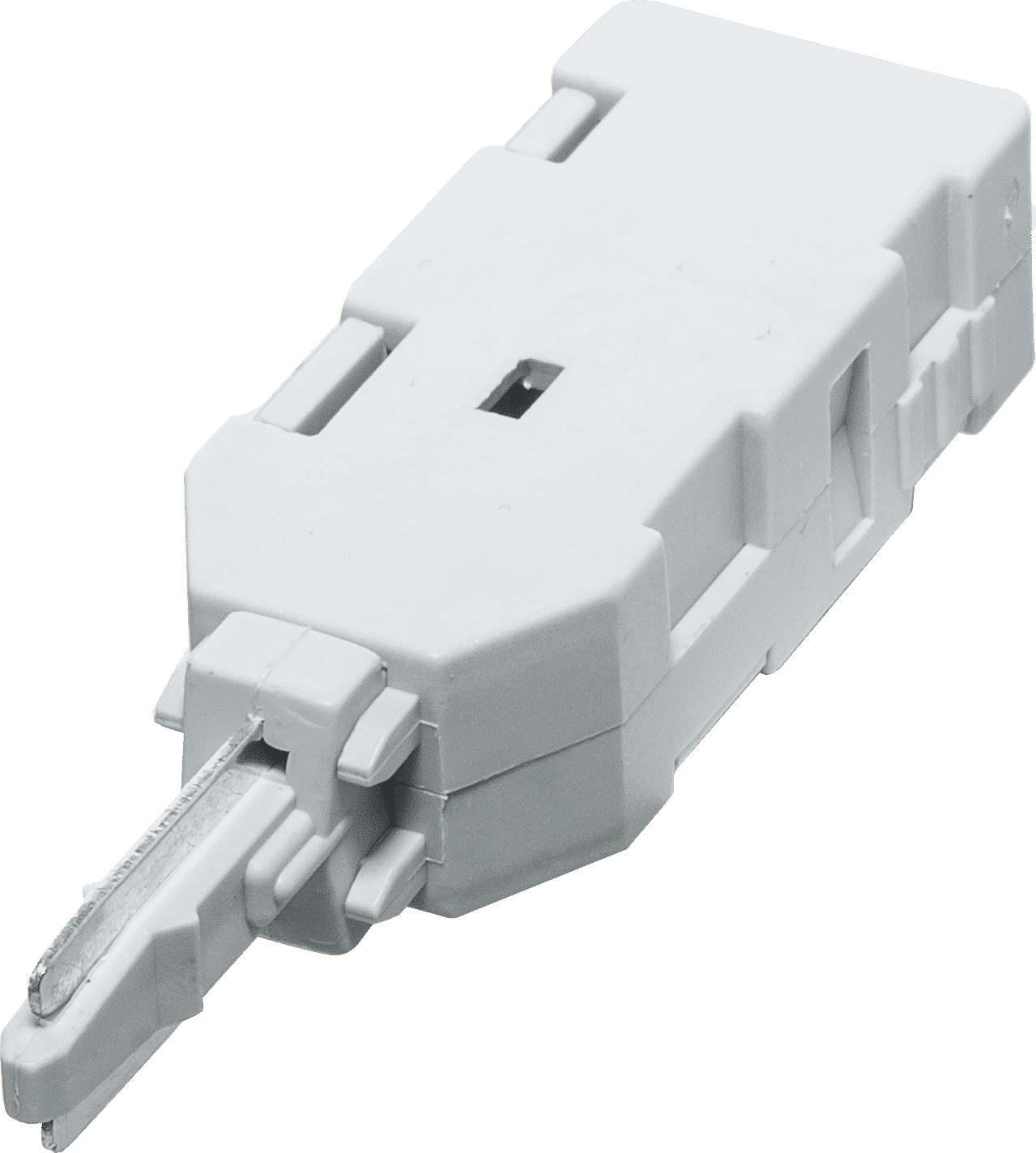

• TL2 Test plug, 2 pole, with retaining piece
Equivalent to BT: 244A
2 contact test plug for use with LSA-Plus connection and disconnection modules

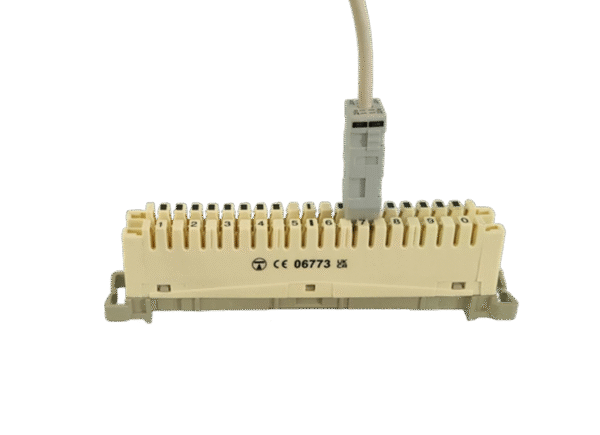

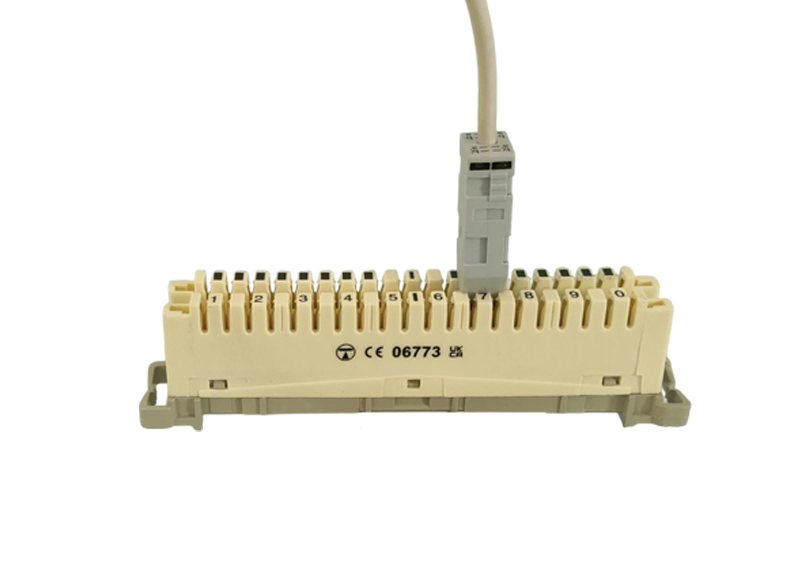

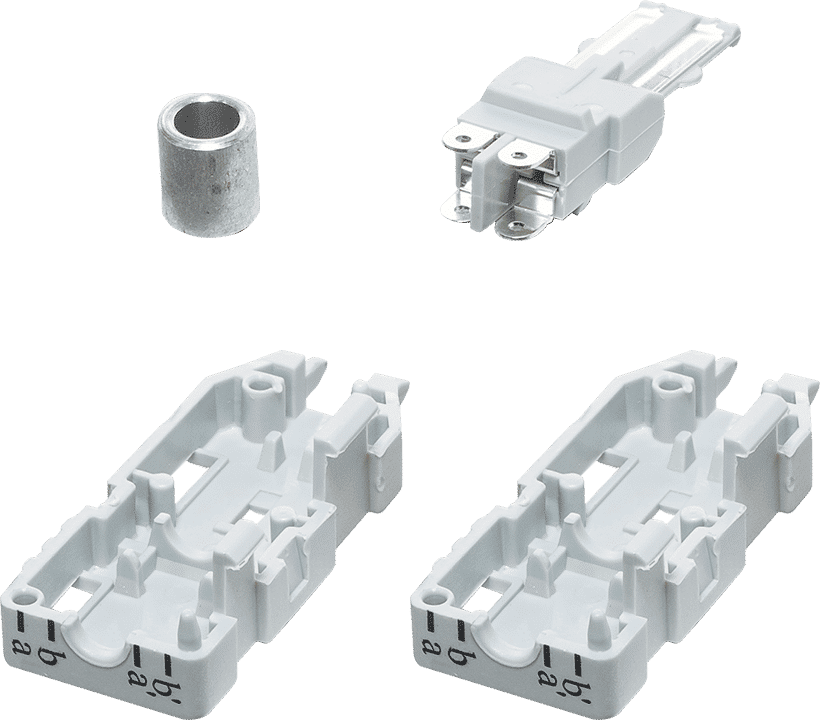

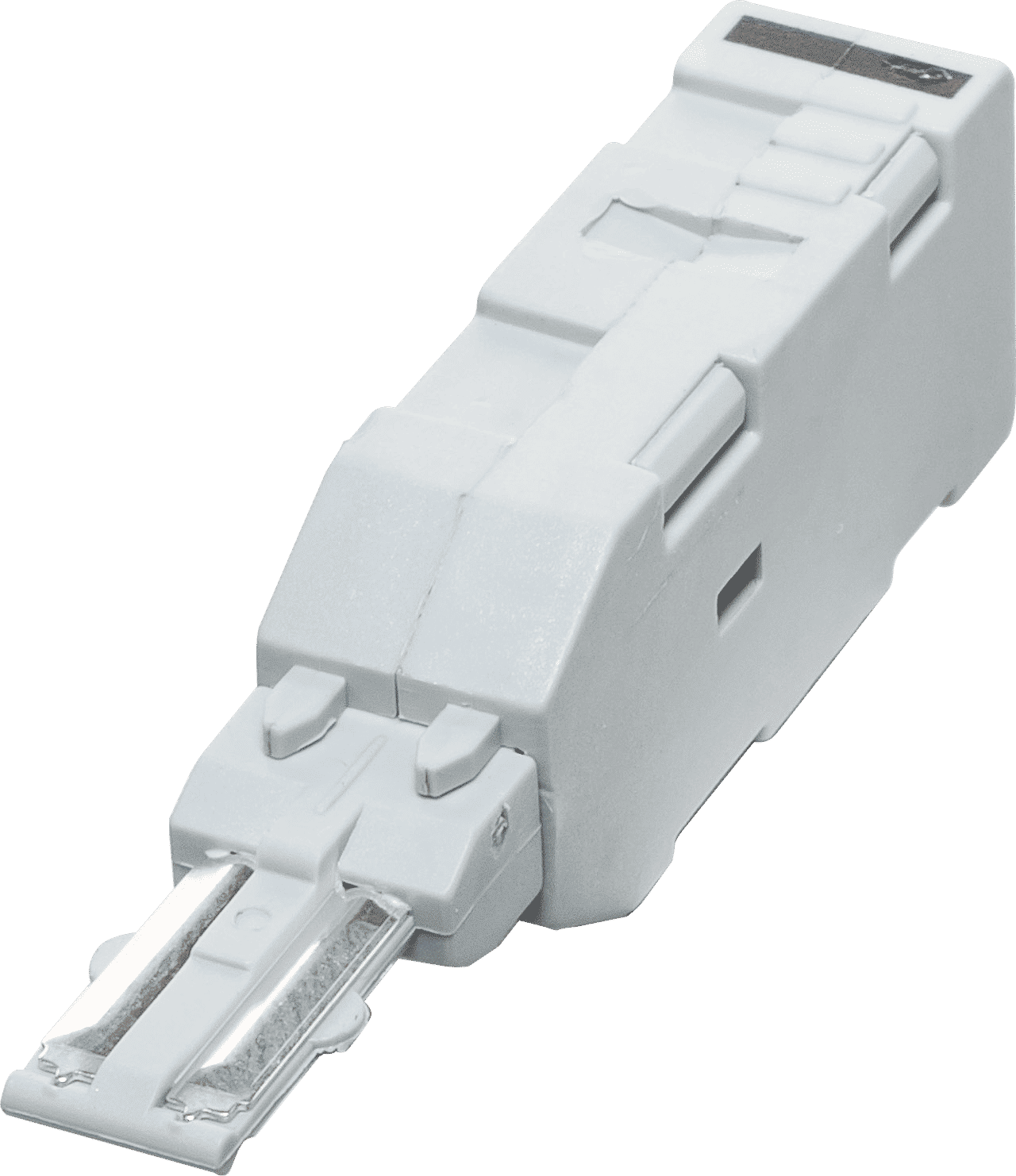

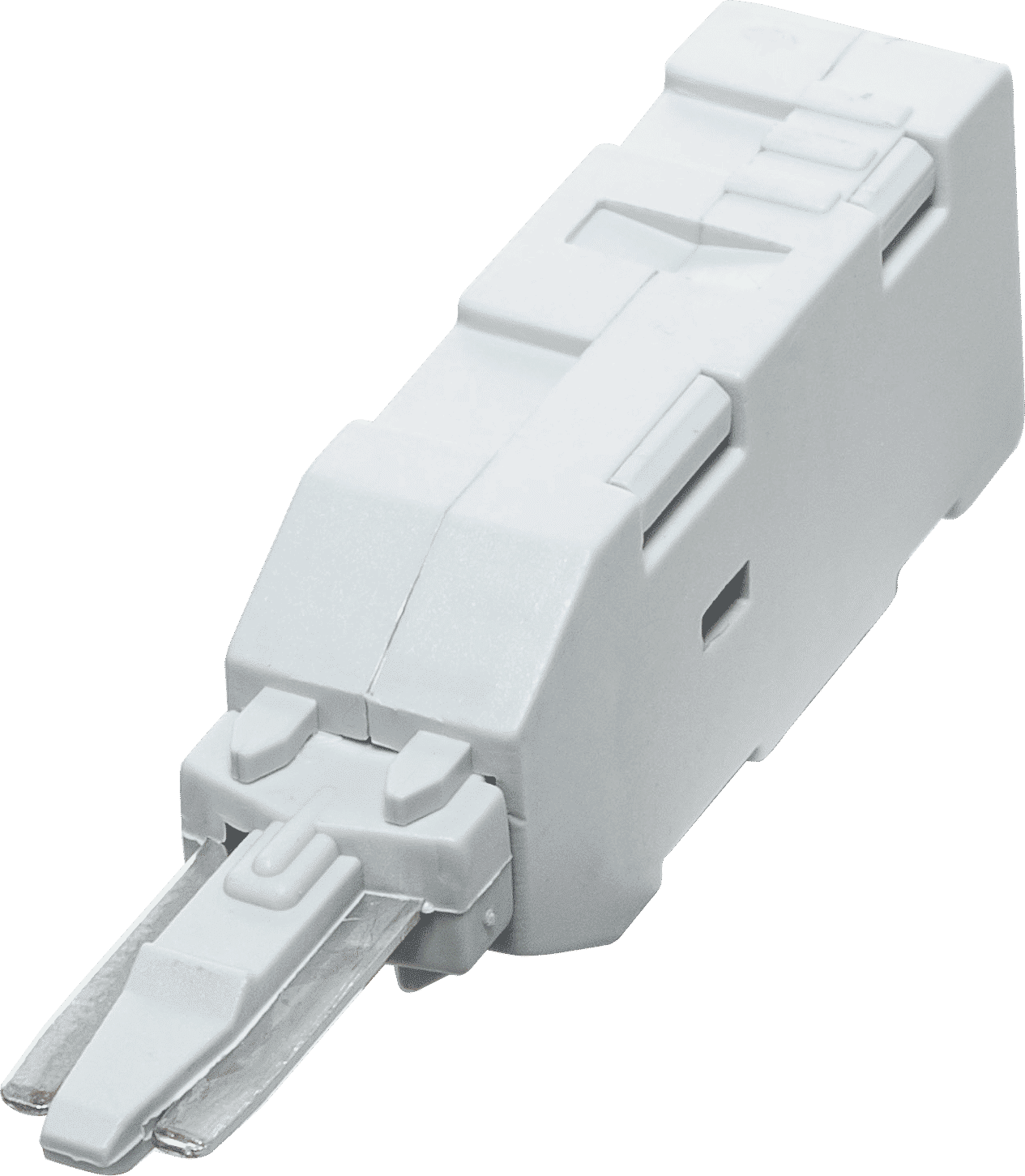

• TL4 Test plug, 4 pole, with retaining piece
Equivalent to BT: 440a
For use with LSA-Plus switching and disconnection modules

• Net weight (in primary packaging):
TL2: 40g (per pack of 10)
TL4: 42g (per pack of 10)

• Dimensions (including primary packaging):
TL2: 140x120x20 mm
TL4: 140x120x20 mm

• Colour: Grey

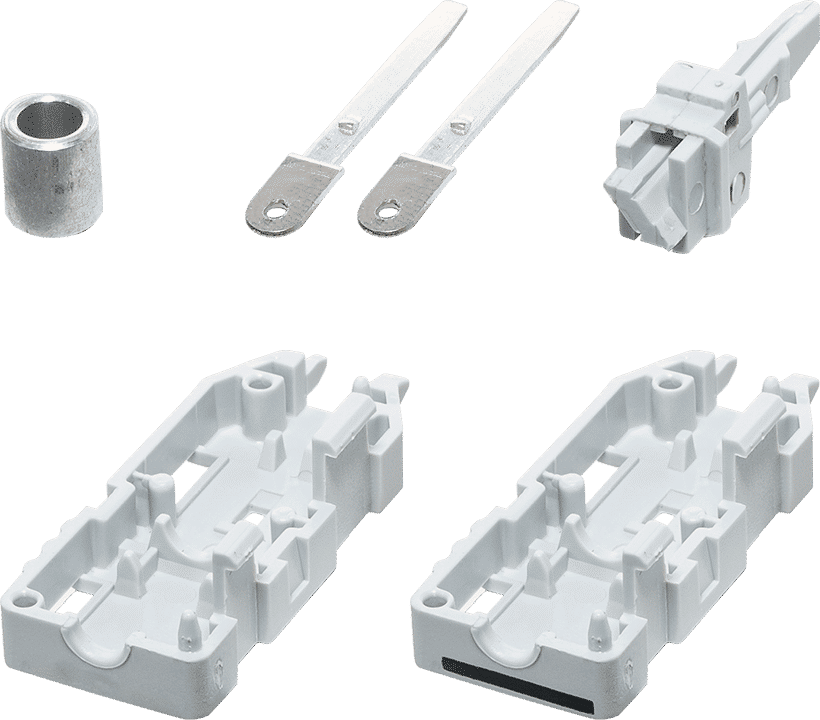

• Materials:
Housing: PBT UL94V-0
Insert: PBT+ 15% Glass-filled polymer UL94V-0
Contacts: Phosphor bronze with silver plating

TL2 Similar to the original Krone 6624/2/201/04

TL4 Similar to the original Krone 6418/2/401/00
