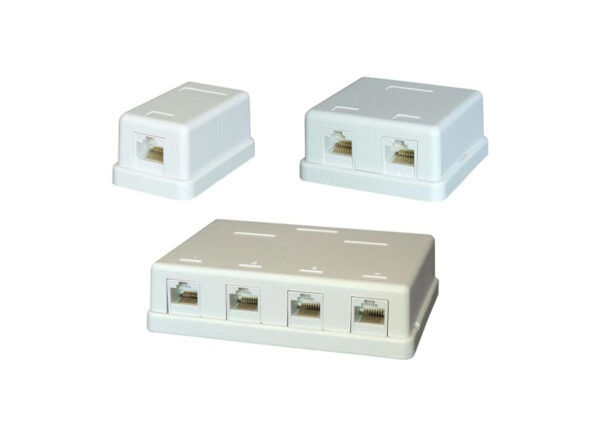

Category 6 surface mount tool-less socket

These surface mount sockets enable Category 6 outlets to be quickly installed without the need for additional back box or trunking.

Product Code(s): SKH1, SKH2, SKH4 Category: Structured Cabling

Specification PDF

These surface mount sockets enable Category 6 outlets to be quickly installed without the need for additional back box or trunking.

– High performance data throughput, meets Category 6 data transfer rates at permanent link level
– Utilises unshielded Category 6 keystones with easy, rapid tool-less termination
– Cable routing 180˚
– Supplied with cable ties + adhesive pads for mounting”

Product Code , Dimensions (LxWxH) , Weight (Approximately) , Adhesivepads
SKH1 , 59 x 35.5 x 28.5 mm , 24g , 45 x 25 mm
SKH2 , 59.0 x 61.5 x 28.5 mm , 40g , 45 x 40 mm
SKH4 , 84.0 x 114.0 x 29.5 mm , 112g , 45 x 40 mm (2)

– Housing: Fireproof ABS UL 94V-0
– Socket Body: ABS UL 94V-0
– Contact: 50µ”/1.27µm gold plating over nickel plated phosphor bronze
