Contractor Grade Category 5e SPEEDY RJ45 Plug

Contractor Grade Category 5e SPEEDY RJ45 Plug

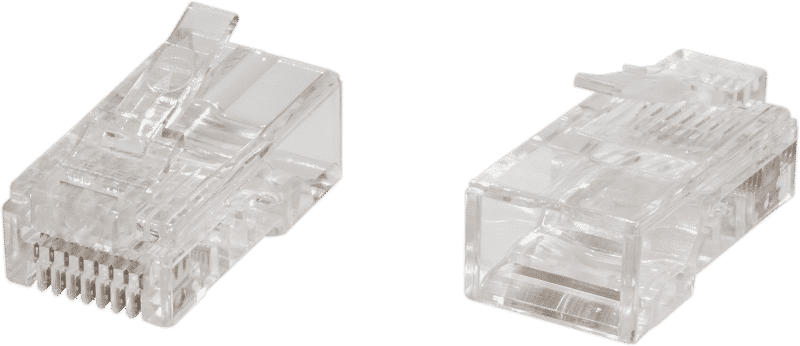

Our contractor grade, Category 5e SPEEDY RJ45 plug is an ideal low-cost solution for time-saving and high-quality connections.

Product Code(s): PXSPDY5b#10, PXSPDY5b Category:
Specification PDF

Distributor(s)

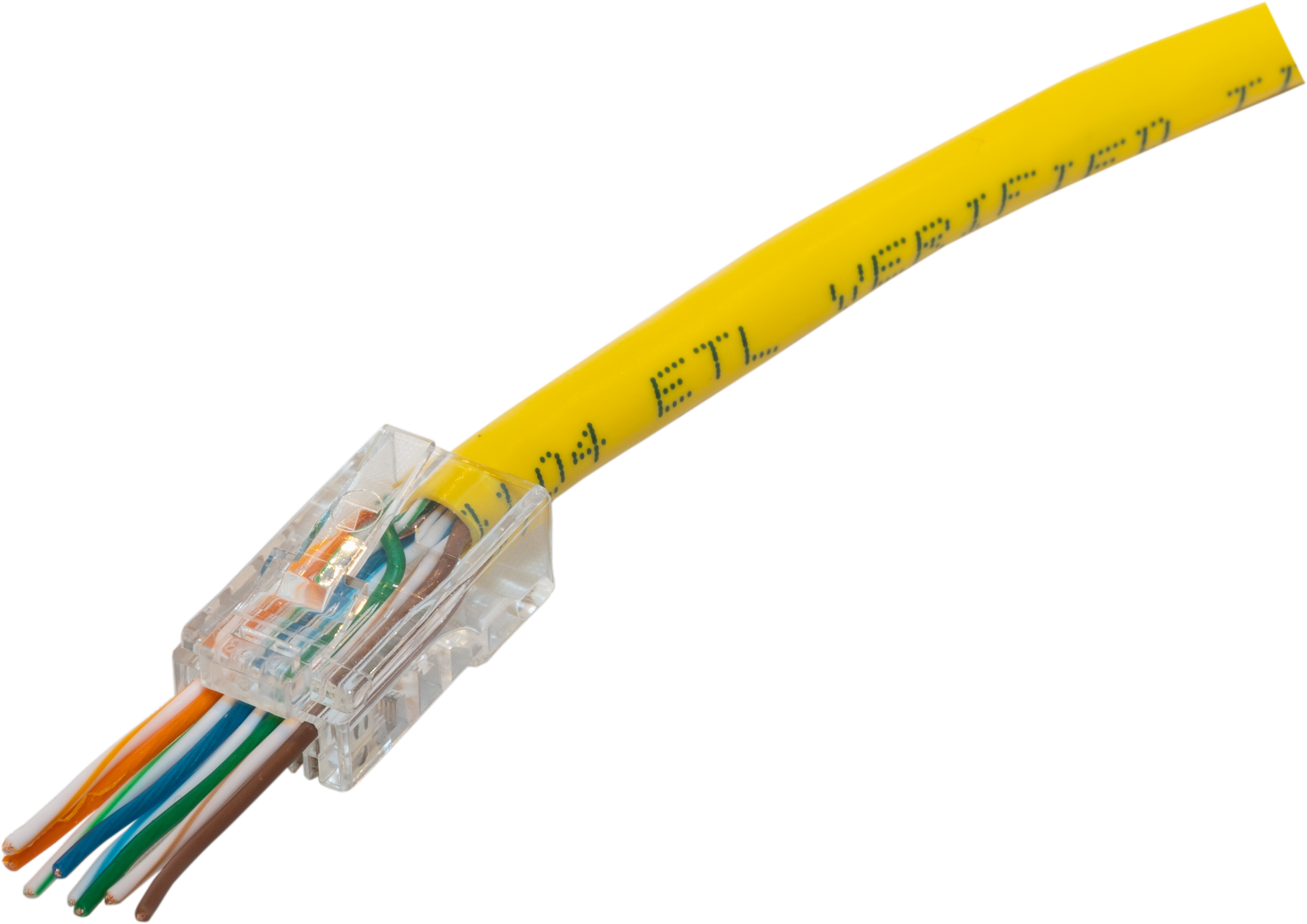

Our SPEEDY RJ45 plugs are designed to simplify twisted pair terminations by allowing the wire pairs to be easily inserted through the plug and out of the front. This allows the installer to easily check the wiring order before crimping the connector. Twist is maintained more easily enabling a better performing crimp. Waste is minimised and the plugs are suitable for either stranded or solid wires.

• Housing colour: transparent
• Housing material: Polycarbonate UL94V-0
• 3 prong, Copper alloy, 50µ”/1.27µm Gold plated contact for solid or stranded cores
• Designed for use with flush strain relief boots PS6* and PSPDY6

Weight (net weight including packaging)
• PXSPDY5b#10: 16g
• PXSPDY5b#100: 178g
• PXSPDY5b#200: 304g
• PXSPDY5b#500: 910g
• PXSPDY5b#1000: 1534g

Dimensions (in primary packaging)
• PXSPDY5b#10: 110 x 85 x 15mm
• PXSPDY5b#100: 260 x 190 x 50mm
• PXSPDY5b#200: 300 x 200 x 20mm
• PXSPDY5b#500: 360 x 250 x 100mm
• PXSPDY5b#1000: 370 X 260 X 80mm
• Operating temperature: -10˚C to 60˚C

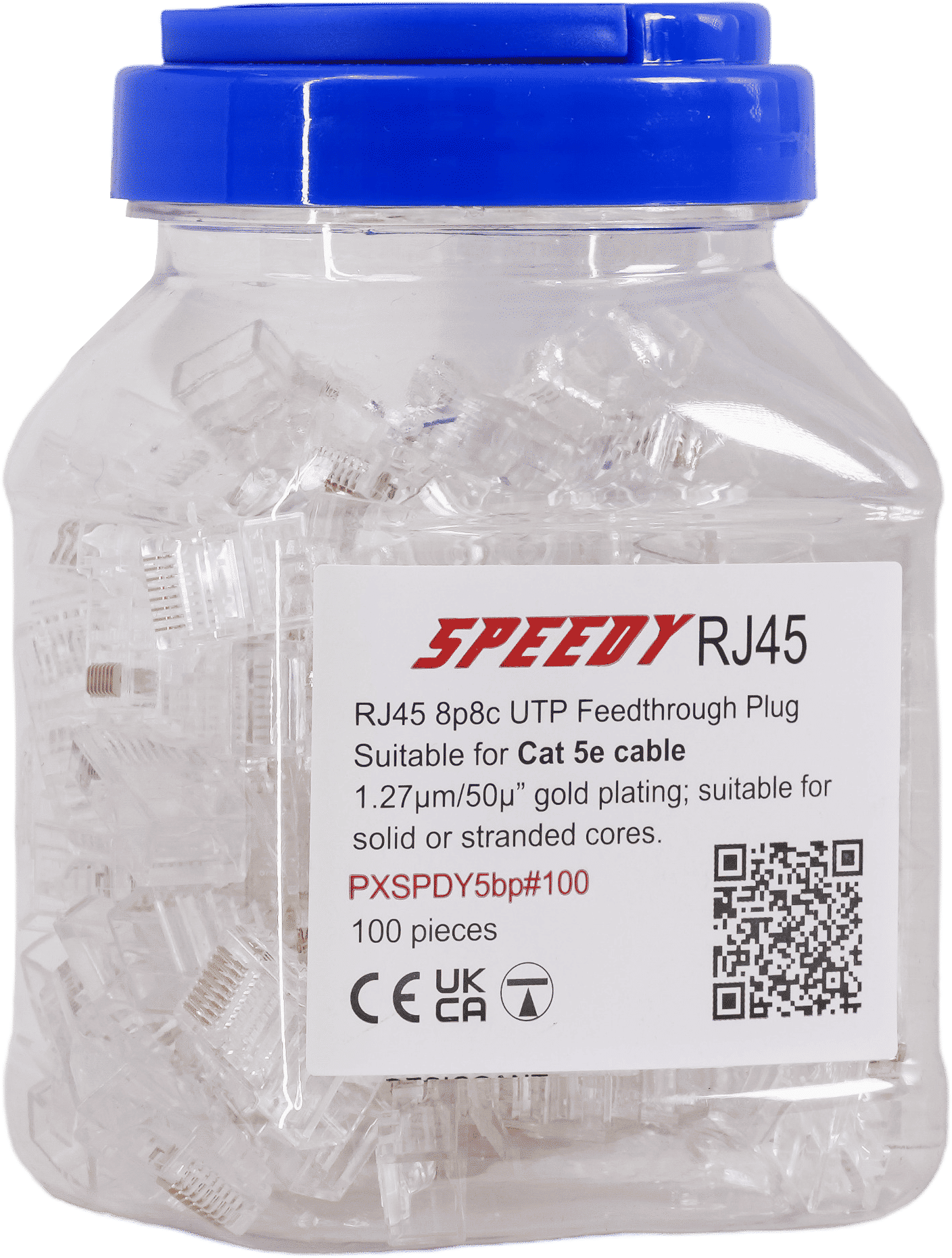

Supplied in polybags of 10 then 100 then 500. Also available with reduced packaging as bags of 200 then
1000

  • 10: PXSPDY5b#10
  • 100: PXSPDY5b#100
  • 200: PXSPDY5b#200 (Supplied loose in bag)
  • 500: PXSPDY5b#500
  • 1000: PXSPDY5b#1000 (Supplied in polybags of 200)</li
Colour

Transparent

Country of Origin

Taiwan

Commodity code

85444920

EAN

5055386510372, 5055386510389, 5055386510396, 5055386510402, 5055386510419
