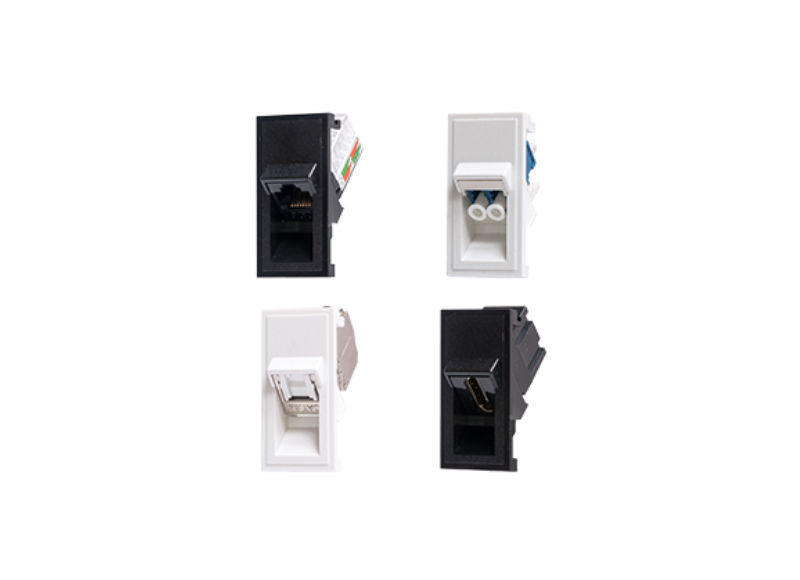

TUKs euro shutterless range offers a comprehensive selection of audio, video and data connectors.
Euro Shutterless Range
TUKs euro shutterless range offers a comprehensive selection of audio, video and data connectors.
Distributor(s)
TUK’s Euro range is designed for standard faceplates fitting 25 x 50mm connectors. Available in white and black, 86 x 86mm faceplates can be supplied to match; decorative faceplates are also available to order.
The angled faceplate adaptor is made of robust black or white polycarbonate. The design allows close access to the connector, maximising the connection with, for example, HDMI and USB connectors. The angle reduces the need for a shutter in faceplate installations and assists with bend radius issues.
All connectors are made to relevant standards. Category 6 and 6A connectors are made, for example, to FCC68 and to TIA/EIA 568B and have an insertion life of >750 mating cycles. All products are CE compliant (i.e including ROHS and REACH)
Each item is supplied as a kit. Kit includes coupler/socket and faceplate adaptor.
For specifications of couplers and sockets, see separate web pages as follows:
- Category 6A shielded socket: https://tuk.co.uk/product/category-6a-shielded-keystone-jack/
- F connector female to female coupler: https://tuk.co.uk/product/f-connector-female-to-female-keystone-coupler/
- HDMI female to female coupler: https://tuk.co.uk/product/hdmi-female-to-female-keystone-coupler/
- USB2 A female to A female coupler: https://tuk.co.uk/product/usb-2-0-a-female-to-a-female-keystone-coupler/
- UK telephone master / secondary socket: https://tuk.co.uk/product/uk-telephone-keystone-master-or-secondary-socket/
- RJ12 6p6c socket: https://tuk.co.uk/product/rj12-6p6c-keystone-socket/
- Speaker connector: https://tuk.co.uk/product/keystone-speaker-connector/
- USB 2 A screw termination socket: https://tuk.co.uk/product/usb2-a-screw-termination-keystone-socket/
- LC MM fibre connector: https://tuk.co.uk/product/fibre-keystone-coupler/
- LC SM fibre: https://tuk.co.uk/product/fibre-keystone-coupler/
- Category 6 component level socket: https://tuk.co.uk/product/category-6-component-level-keystone-socket/
| Product Codes | Connector type – Angled Shutterless 25 x 50mm Euro style in black (bk) or white (wh) |

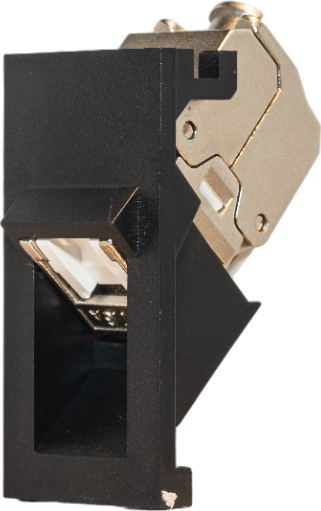

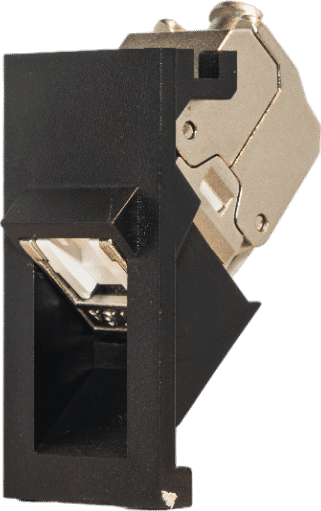

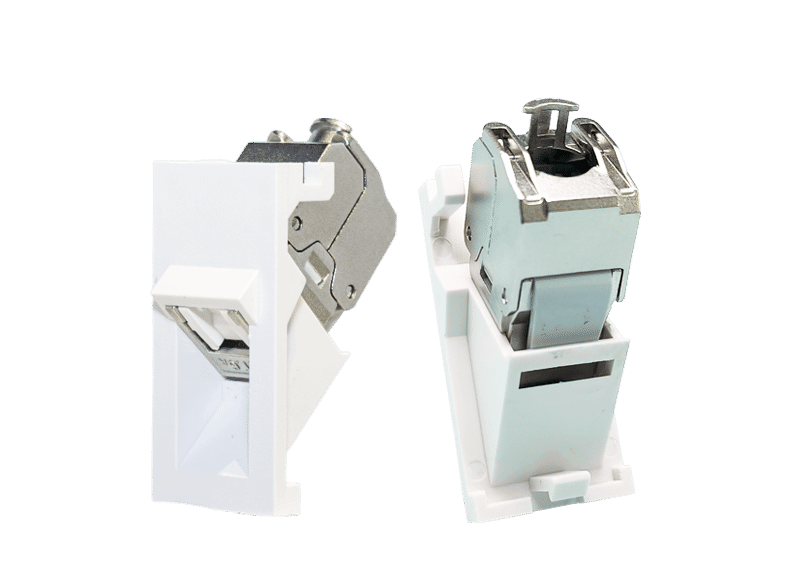

| SGKS45bk/whax | Category 6A STP toolless socket |
| KCF45bk/whax | F connector female to female coupler |

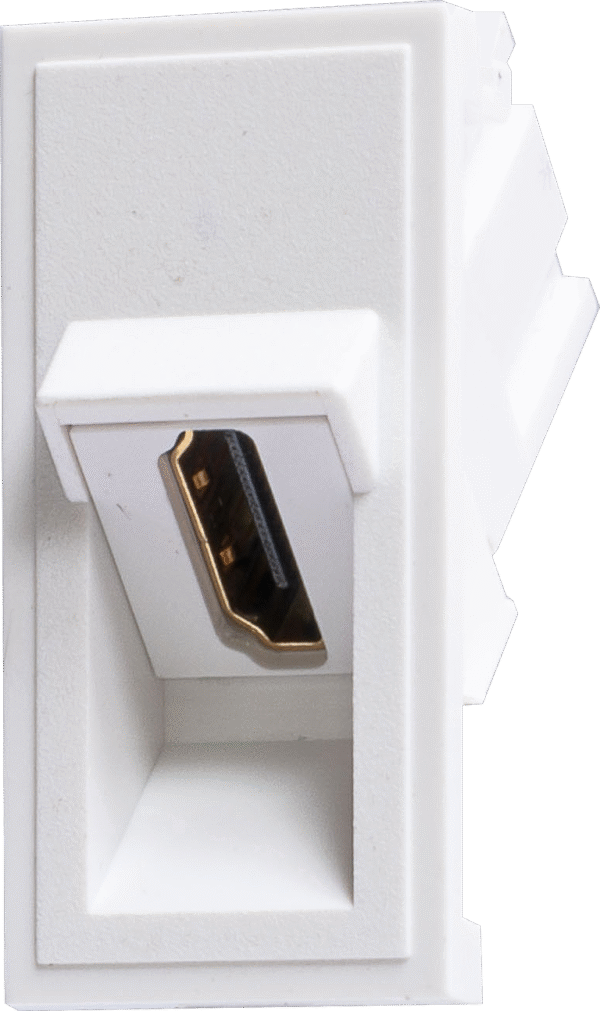

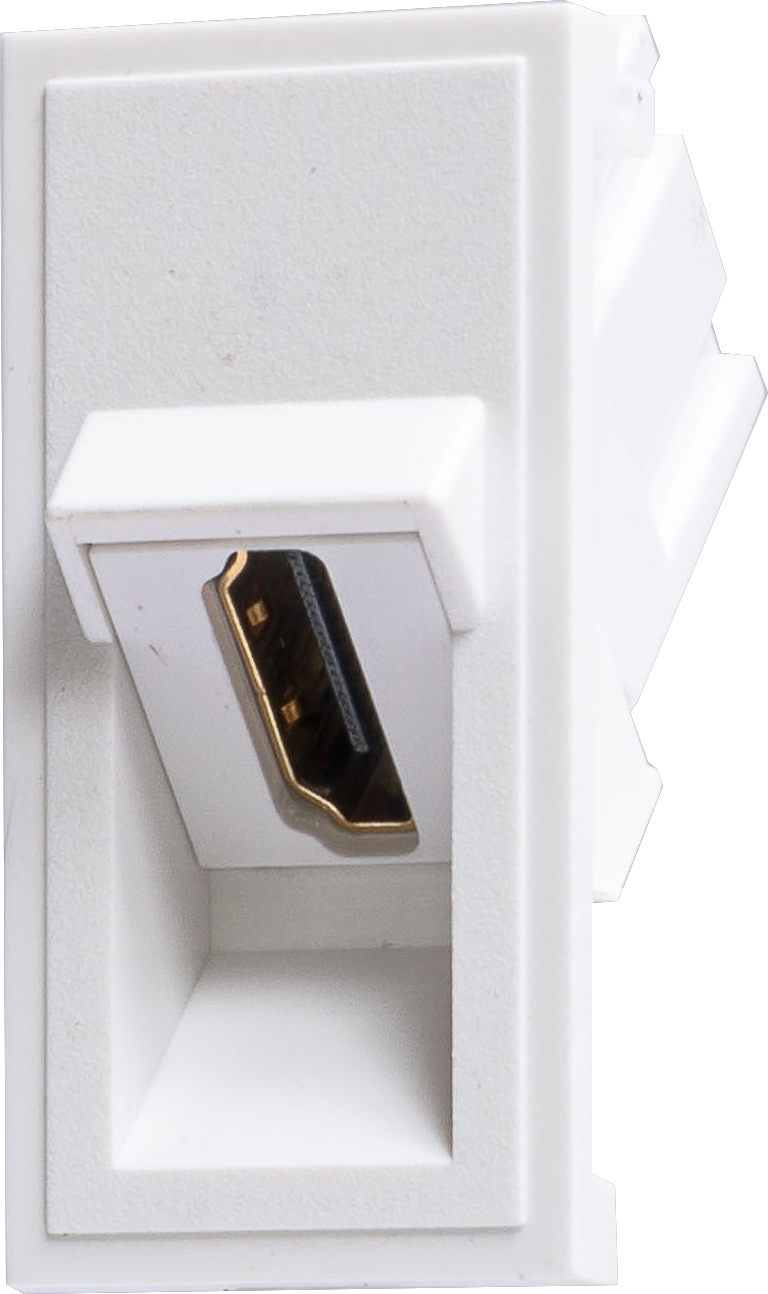

| KCHD45bk/whax | HDMI female to female coupler |
| KCUAA245bk/whax | USB2 A female to A female coupler |
| KGB145bk/whax | UK telephone master socket |
| KGB345bk/whax | UK telephone secondary socket |
| KSH6645bk/whax | RJ12 6p6c socket |
| KSPBK45bk/whax | Speaker connector – with black elastic identifier |
| KSPRD45bk/whax | Speaker connector – with red elastic identifier |
| KUA245bk/whax | USB 2 A Screw termination socket |
| OL45mmbk/whax | Angled Fibre LC multimode connector |
| OL45smbk/whax | Angled fibre LC single mode connector |

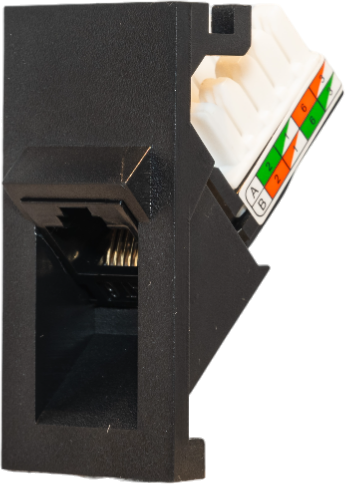

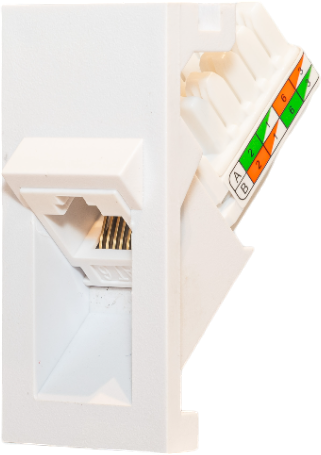

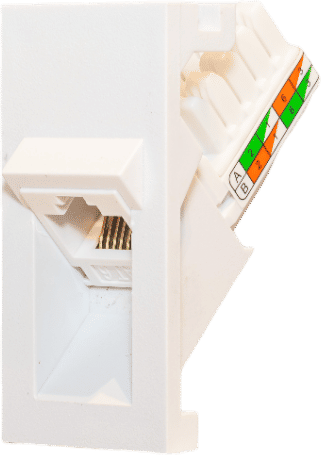

| SKmc45bk/whax | Category 6 UTP LSA/110 type socket |
