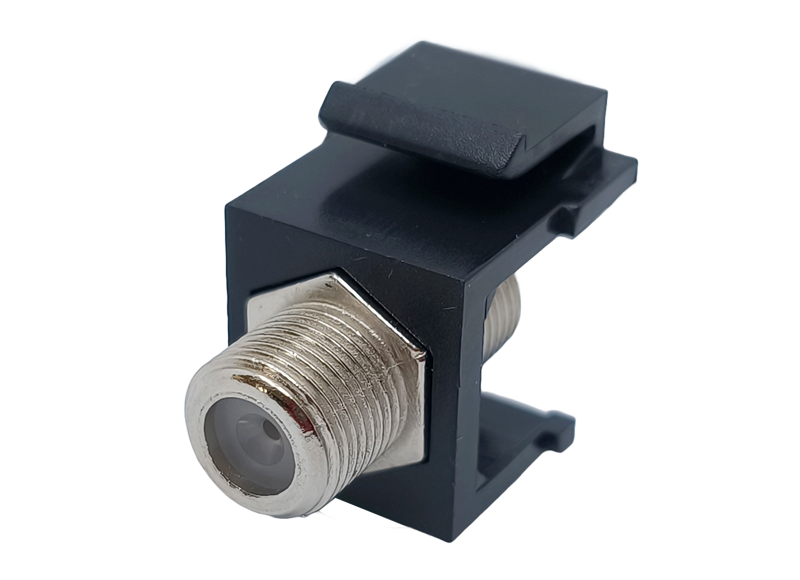

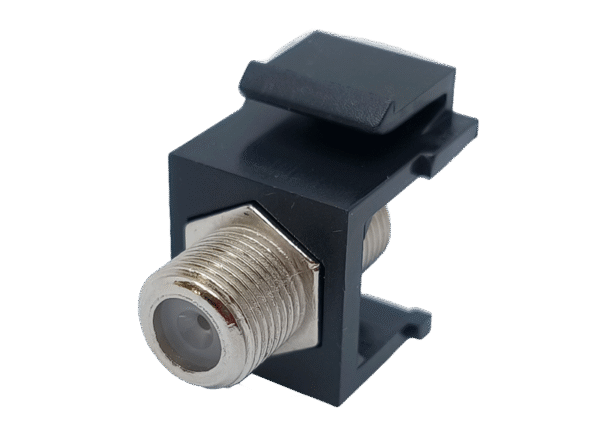

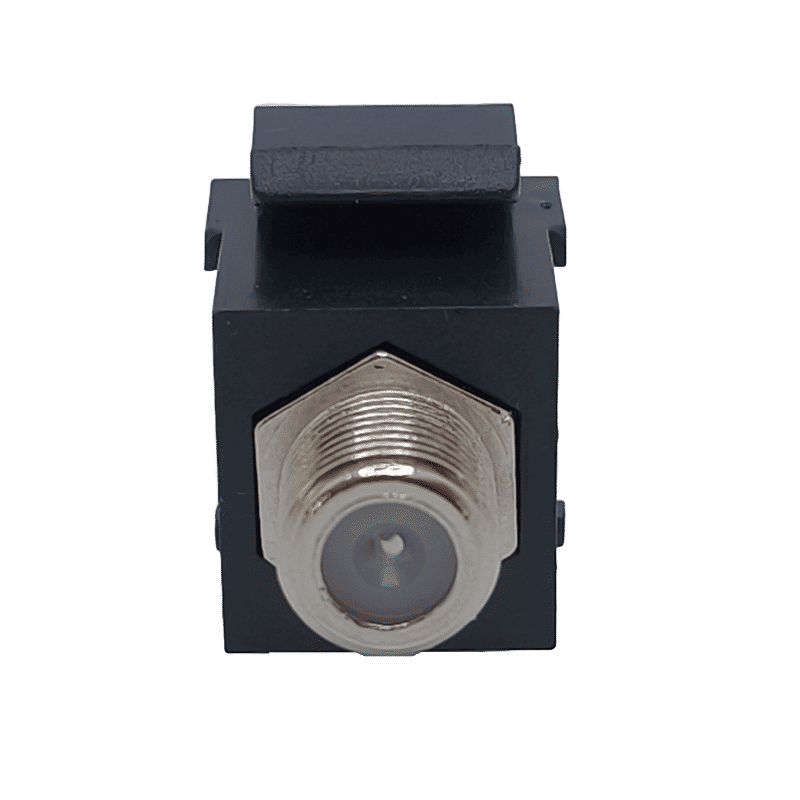

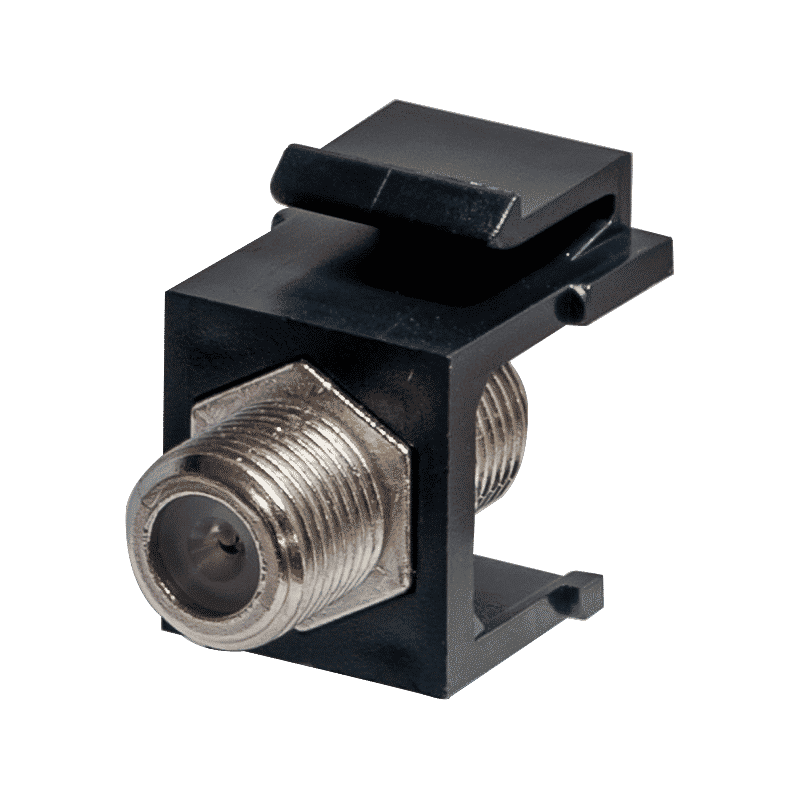

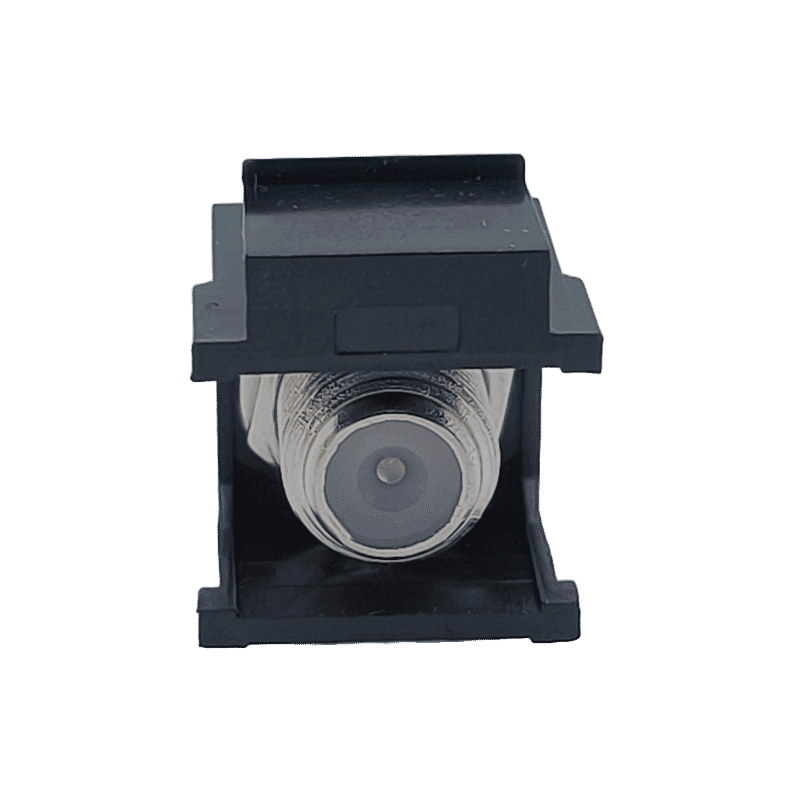

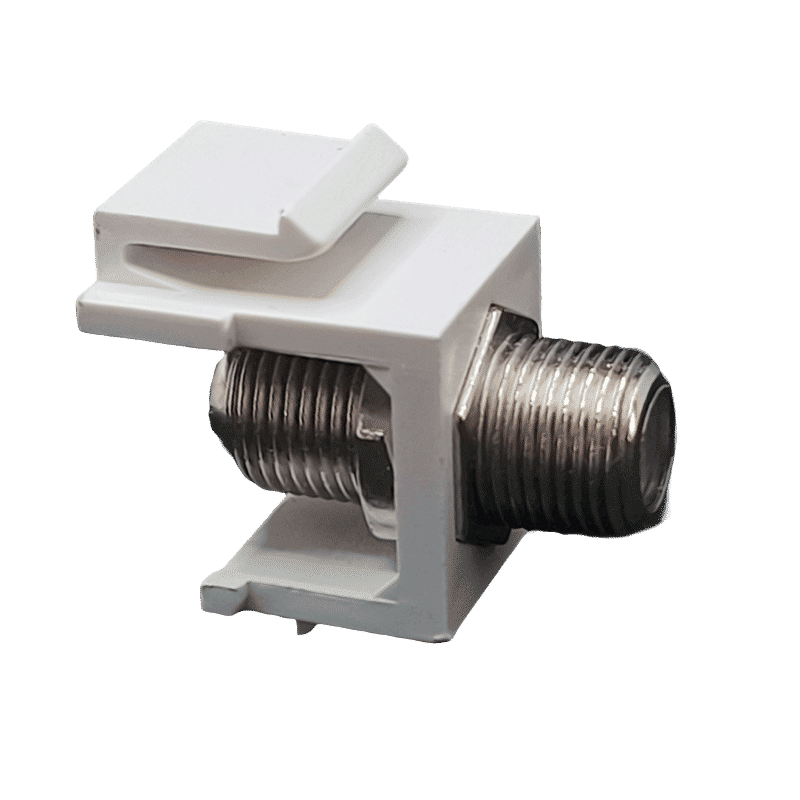

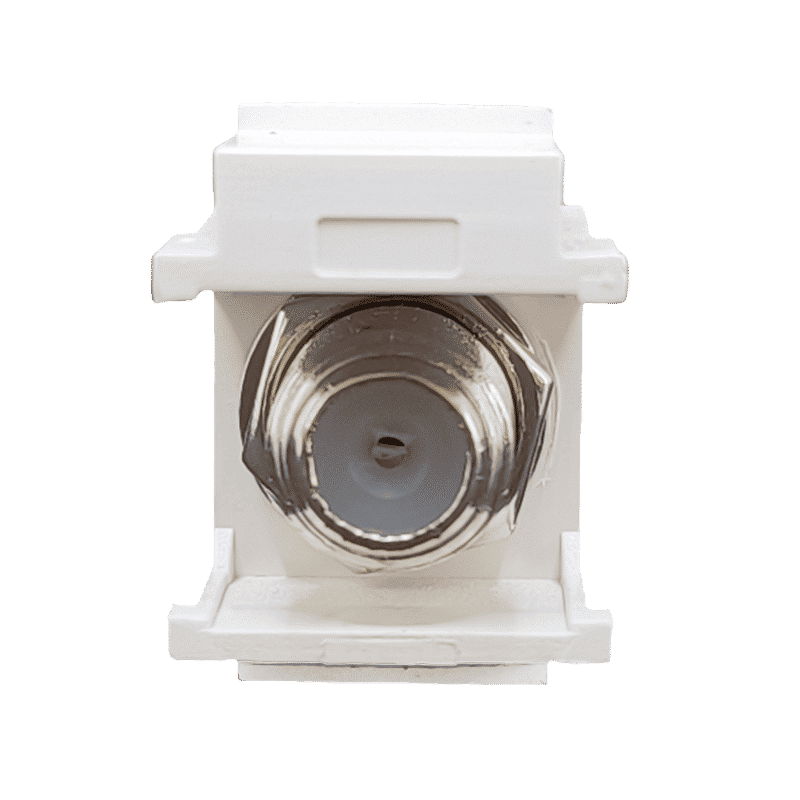

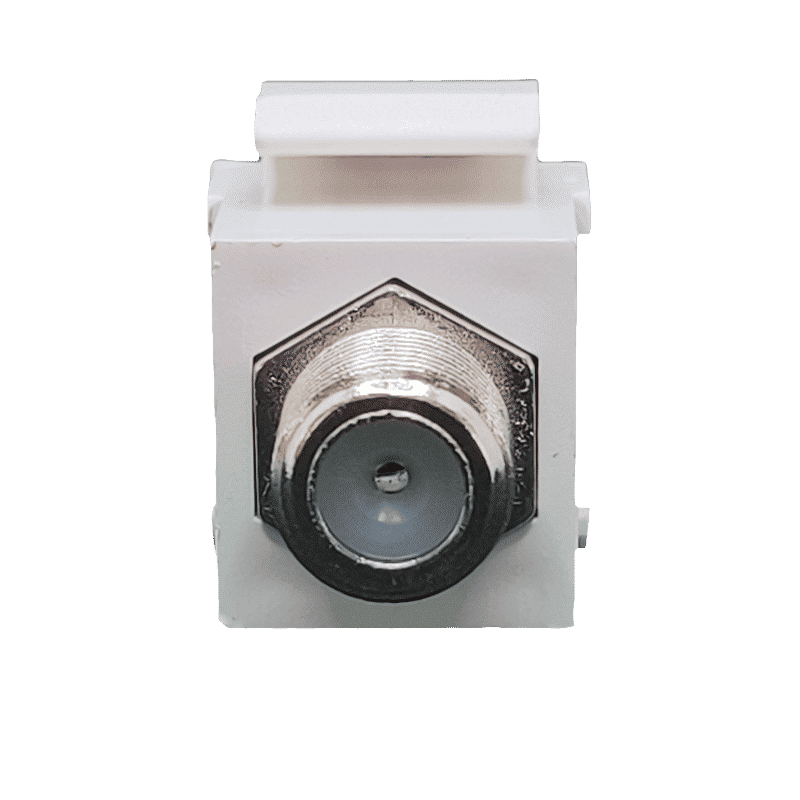

F connector female to female keystone coupler

F connector female to female keystone coupler

This module can be used to extend an F-connection. With its standardised dimensions, it can be used for easy snap-in mounting in e.g, a keystone patchpanel, face plate or suface-mount box.

Product Code(s): KCFbk, KCFwh Category:
Specification PDF

Distributor(s)

This module can be used to extend an F-connection. With its standardised dimensions, it can be used for easy snap-in mounting in e.g, a keystone patchpanel, face plate or suface-mount box.

– Connector: F female to F female
– Impedance: 75 Ohm
– Easy screw connector on both sides
– Ideal for satellite installations

– Dimensions: 25.5 x 16.3 x 22.3mm (LxWxH)
– Colour: Black or White
– Weight: 6g approx.
– Length in front of the panel: 8.1 mm

– Connector body: Nickel-plated zinc
– Keystone mount/ Housing: Fire retardant ABS UL 94V-0

Colour

Black and White

Weight (approx)

6g
