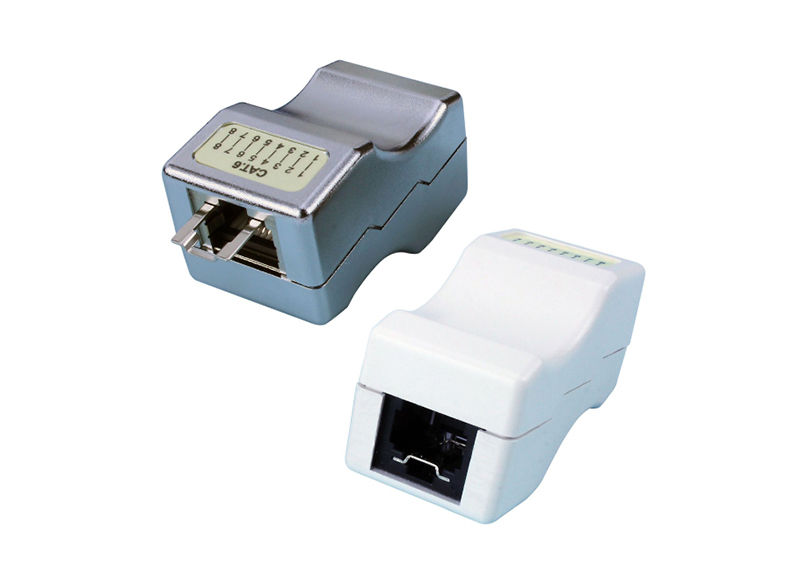

These LOKJAC locking couplers enable cables to be easily extended and sockets to be temporarily relocated. The locking/blocking facility prevents unauthorised use of the connection and avoids unintended disconnection where vibration or interference is a concern.
These LOKJAC locking couplers enable cables to be easily extended and sockets to be temporarily relocated. The locking/blocking facility prevents unauthorised use of the connection and avoids unintended disconnection where vibration or interference is a concern.
– Transmission performance in compliance with Category 6 EIA/TIA 568B standard
– Robust and stylish design
– Cables are locked securely into place with LOKJAC key, with easy lock and release mechanism
– Locking bar blocks unauthorised access to unused socket
– Compliant with IEC 60512-99-001 – suitable for use with IEEE 802.3at (POE+) applications
– N.B. Cannot be used without LOKJAC key (TLJ) – supplied separately”
– Electrical specifications:
– Insulation resistance: 500M Ω (min.)
– Contact resistance: 20m Ω (max.)
– Current rating: 1.5 Amps
– DC resistance: 0.1 Ω (max.)
– Withstanding voltage: 1000 VAC RMS @ 60Hz/ 1 min.
– Mechanical specifications: Jack Insertion cycle: over 2000 cycles (min.)
– Lock bar tension: 15 kgs (min.)
– Operation temperature: -40˚C ̴ +70˚C
– Dimension: 26 x 34.5 x 47.5 mm
– Body: unshielded: fireproof ABS UL-94V0
– shielded: chrome plated ABS
– Jack: 8p8c 50µ”/1.27 µm gold plating
– PCB: FR-4/UL-94V0
– Locking bar: cold rolled steel (SPCC)
| Colour | White and silver |
|---|---|
| Weight (approx) | 24g |
