This affordable outlet which performs to Category 6 TIA/EIA-568-C.2-1 at permanent link level, can be quickly and easily terminated and fits into most standard faceplates.

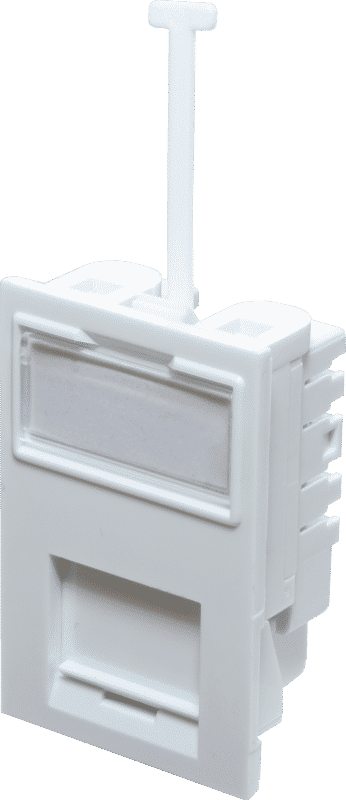

Low-Cost Category 6 6c Outlet
This affordable outlet which performs to Category 6 TIA/EIA-568-C.2-1 at permanent link level, can be quickly and easily terminated and fits into most standard faceplates.
- Performs to Category 6 at permanent link level
- Low profile design, shuttered front aperture protects against dust

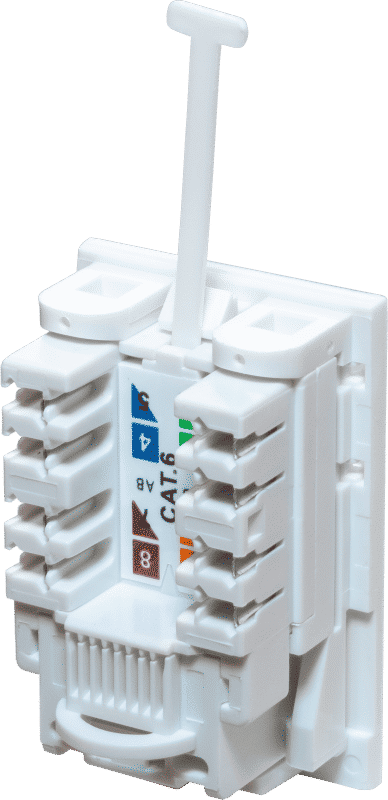

- Fitted with industry standard Krone (LSA+) type IDC connections
- Compatible with most 6c faceplates
- ‘Slip-in’ label facility for port identification

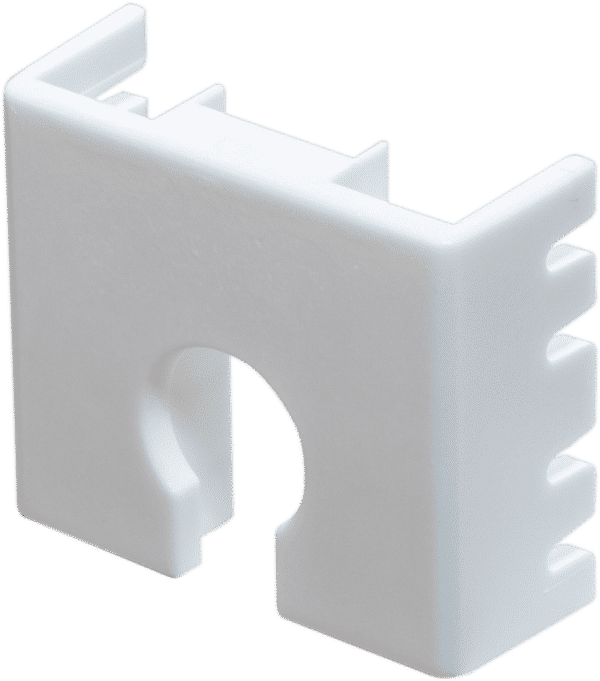

- Integral cable tie point. Cable retention clip also supplied along with additional flexible cable tie facility.
- Available in individual polythene bags or in “bulk packs” of 24 without individual poly bags
- Weight:
SJ6whje: 18g approx.
SJ6whje#24: 356g approx. - Dimensions (as packed):
SJ6whje: 40 x 60 x 20mm
SJKjewh#24: 240 x 225 x 30mm - Colour: White (RAL 9003)
- T568A and T568B wiring sticker
- Insertion force: 20N max.
- Retention strength: 7.7kg between jack and plug
- Operating temperature: -10˚C to 60˚C
- Suitable for 22-26 AWG stranded and solid wire with Krone (LSA+) type punch down tool.
| Colour | White (RAL 9003) |
|---|---|
| Commodity code | 84733020 |
| Country of Origin | China |
| Product Name | Category 6, Outlets |
