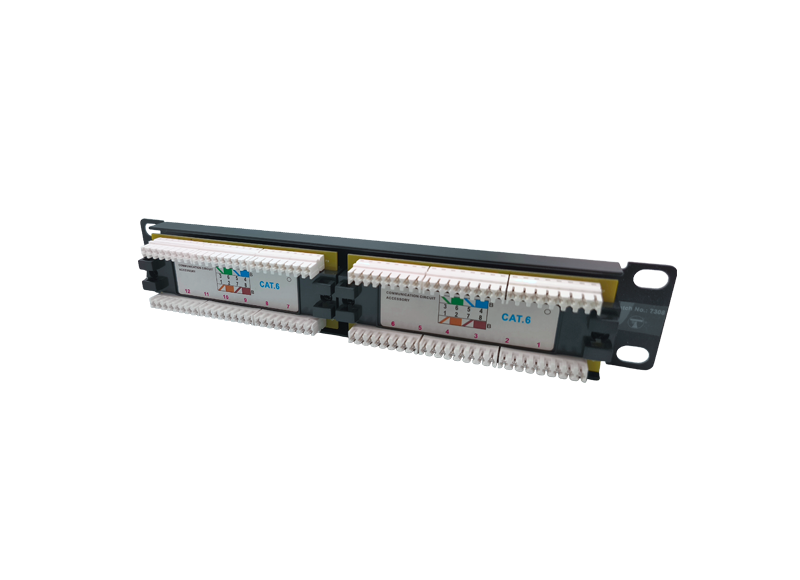

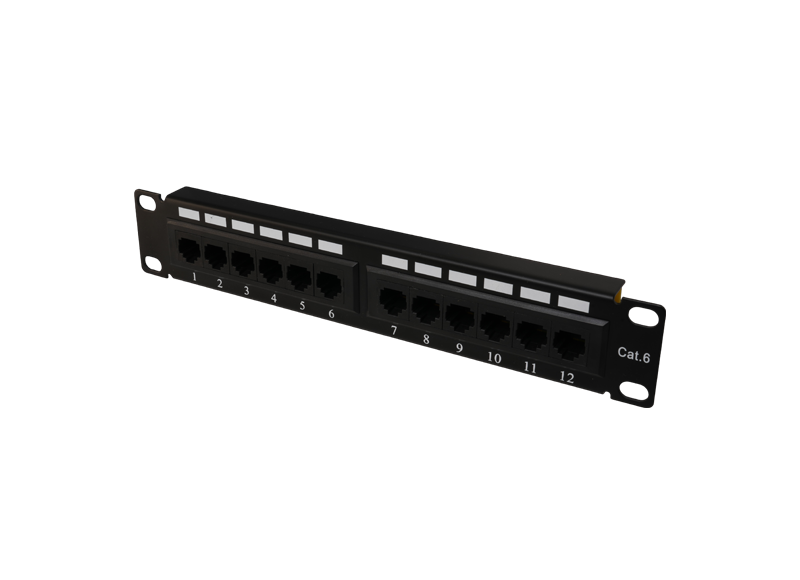

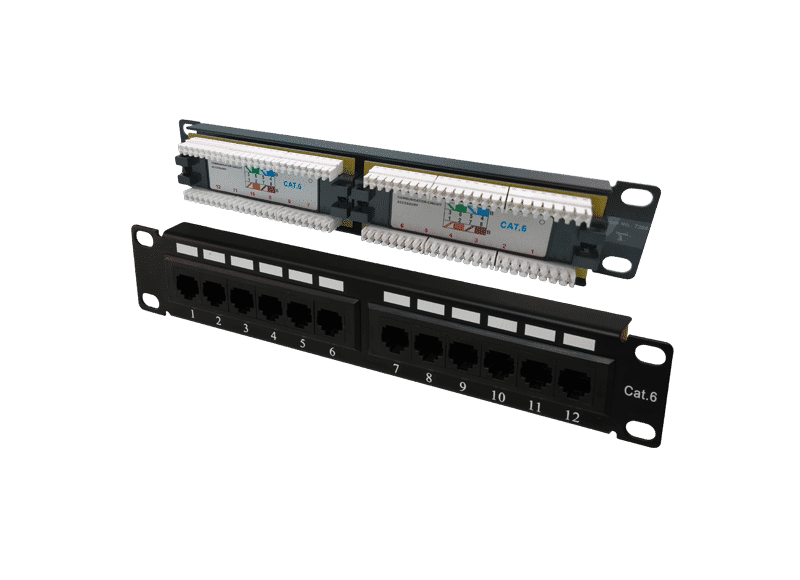

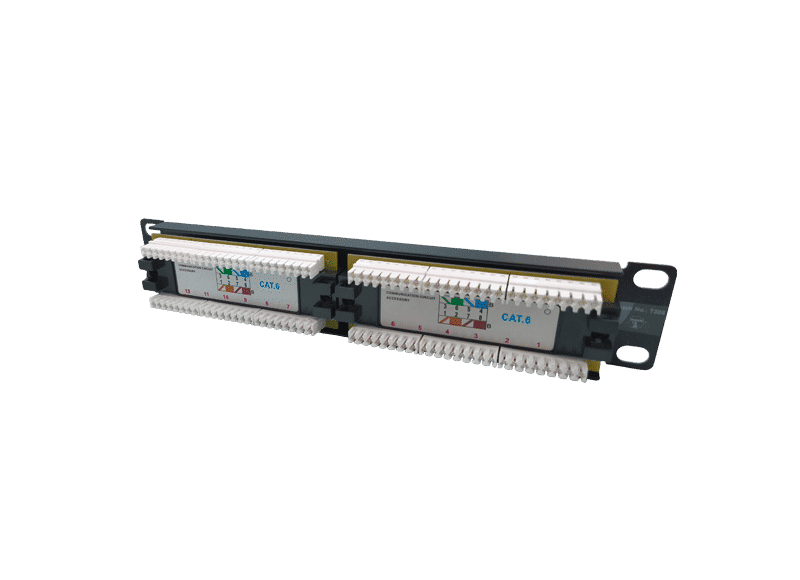

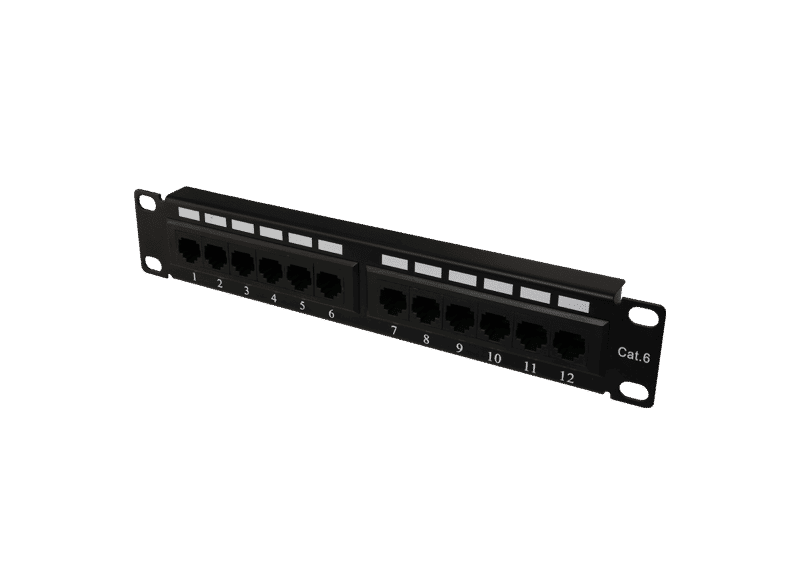

miniMEDIA Category 6 10” 12 port UTP contractor grade PCB based patch panel
miniMEDIA Category 6 12 Port Contractor Grade Patch Panel
miniMEDIA Category 6 10” 12 port UTP contractor grade PCB based patch panel
- Performs to Category 6 permanent link level
- Accommodates LSA+ type termination tools
- Supplied with cage nut kit and 4 long and 12 short cable ties
- Printed with numbered ports
- Straightforward T568B rear labelling
- Suitable for use with POE
- Designed to complement the full range of miniMEDIA Cabinets
- Weight: 354g (including primary packaging)
- Dimensions: 185x80x60mm (in primary packaging)
- Colour: Black
- Materials: Frame – powder coated 1.5mm cold rolled steel
- Housing – ABS
- PCB – FR-4
- Contacts: Socket – 15µ”/0.381µm gold over nickel over phosphor bronze
IDC – Nickel plated phosphor bronze
- Durability – Jack: 250 insertion cycles, IDC: 100 insertions
- Suitable for cores 22-26 AWG
- Operating temperature 00 to 700 C
