XLR Type Category 6A STP Coupler

XLR Type Category 6A STP Coupler

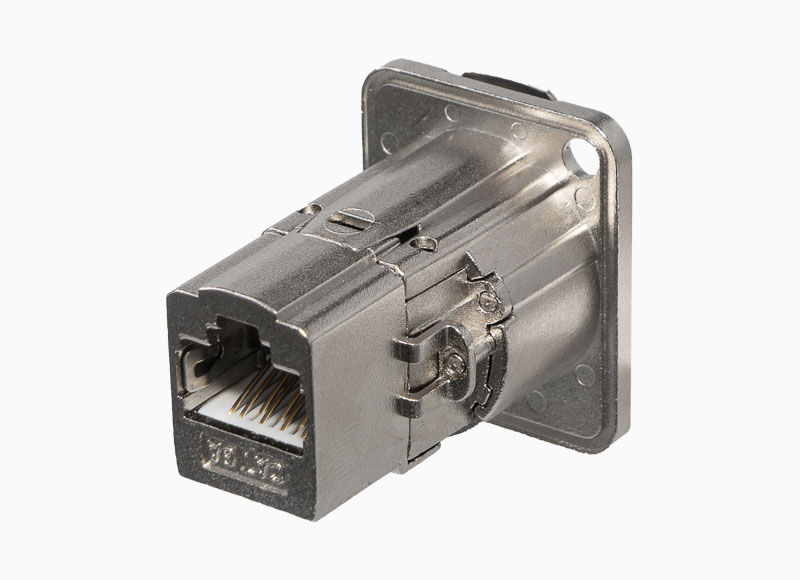

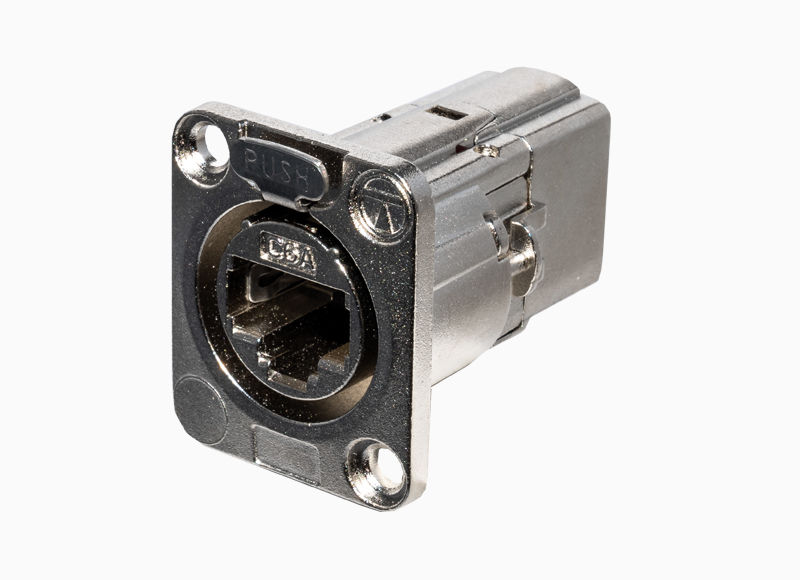

This die-cast, ruggedised XLR style STP coupler is built to be used in challenging environments. Using the industry standard, XLR latch-locking mechanism, it offers a robust connection and at the same time comfortably performs to Category 6A. Easily mounted into suitable cut-outs, this high quality coupler offers the convenience of rapid connection and disconnection together with durability and reliability enabling hundreds of connections.

Product Code(s): SGACDpmc Category:
Specification PDF

This die-cast, ruggedised XLR style STP coupler is built to be used in challenging environments. Using the industry standard, XLR latch-locking mechanism, it offers a robust connection and at the same time comfortably performs to Category 6A. Easily mounted into suitable cut-outs, this high quality coupler offers the convenience of rapid connection and disconnection together with durability and reliability enabling hundreds of connections.

  • Compliant with:
    • IEEE standard for PoE+ and 4PPoE IEEE 802.3
    • Standard for high performance shielded 8 way connectors IEC 60603-7-51
    • Category 6A standard for Balanced Twisted-Pair Components TIA-568.2-D
    • Standard for generic premise cabling to Class EA/Cat 6A ISO/IEC 11801-1
  • Fully shielded, die-cast body offers a durable, sturdy design with outstanding performance in eliminating alien cross-talk
  • Industry standard XLR latch-locking mechanism
  • Please note: Not suitable for use with 6p4c (RJ11 type) or 6p6c (RJ12 type) plugs
  • Not compatible with Neutrik male connector NE8MC6-MO and NKE6S* cables
  • Net weight (including primary packaging): 43 g
  • Dimensions: 32 x 30 x 40 mm
  • Colour: Silver
  • Materials:
    • Internal connector: Impact resistant, UV stabilised ABS+PC 94V0 plastic
  • Housing: Nickel-plated zinc alloy
  • Contact plating: 50µ”/1.27µm over contact area
  • Operating temperature: -40˚C to 66˚C
  • Plug insertion tested to over 750 times
  • Suitable for use with our PGSDbk and with Neutrik Category 6A NE8MX6, NE8MX6-B, NE8MX6-T and NE8MX6-B-T as well as Cat 5e connectors. Also suitable for use with Amphenol XLRnet connectors.
  •  An alternative to Neutrik etherCon NE8FDX-P6 couplers
  •  Not backwards compatible to Neutrik Cat 6 connectors
