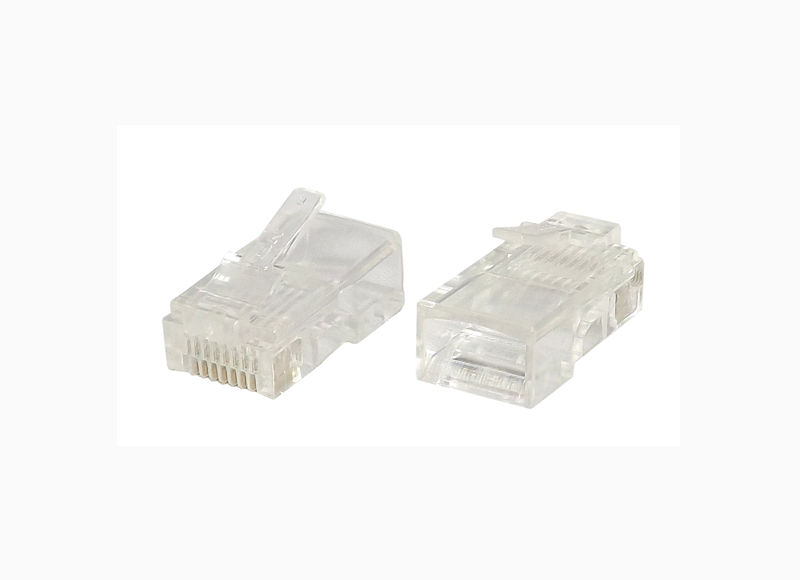

8p8c Modular Plug

Available in shielded and unshielded for flat or round cable. UL listed. Contact blades are suitable for solid and stranded wire from 24-26 AWG. Known as RJ45.

Product Code(s): P88FB15, P88FB50, P88FB50S, P88RB15, P88RB50, P88RB50S Category: Plugs for Data and Voice

Specification PDF

Distributor(s)

8 position 8 contact plug used mainly for data cabling systems (eg Category 3, 4 and 5e). Know mainly as
RJ45 connector but also used in RJ48 and RJ61 applications.

Suitable for round or flat cable
UL listed
Contact blades are suitable for stranded and/or solid wire from 24-26 AWG
Available for UTP (unshielded) and FTP (shielded) cable
Also available in keyed version known as RJ45S (PCU88k) and 10 position 10 contact
versions known as RJ50 (PCW1010 and PGW1010) see ‘Other Modular Plugs’
Customised logos and colours are available to order

Housing: Polycarbonate, UL94V
Contacts: Available in 15µ”/0.38µm and 50µ”/1.27µm gold plating over 100u” / 2.54µm Nickel plate over Phosphor Bronze
Maximum cable O.D. 6mm
Core diameter 0.95 – 1.0mm
