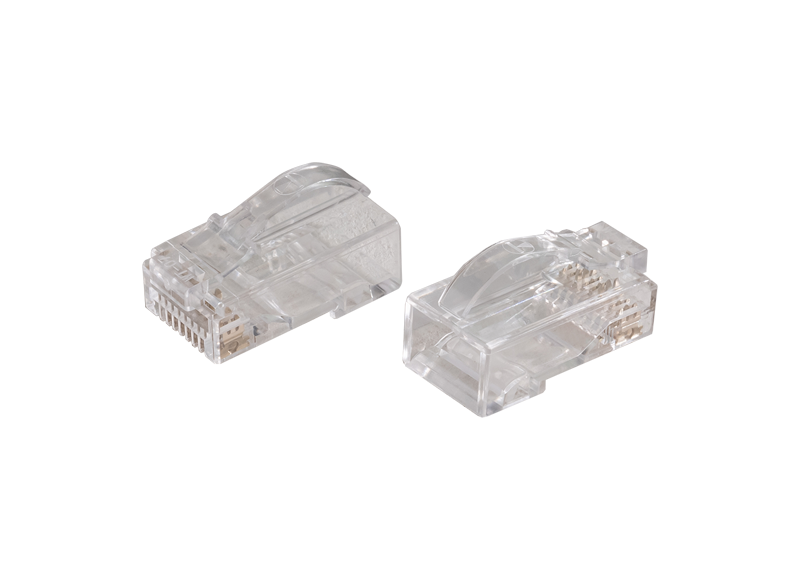

Our Category 6 UTP snagless RJ45 8p8c arc latch plug avoids the need for an anti-snag from the strain relief boot; leads can more easily be removed from panels or sockets without the encumbrance of rubber boots. Strain relief boots can be omitted without risking snagging.
Our Category 6 UTP snagless RJ45 8p8c arc latch plug avoids the need for an anti-snag from the strain relief boot; leads can more easily be removed from panels or sockets without the encumbrance of rubber boots. Strain relief boots can be omitted without risking snagging.
Net weight (including primary packaging): 82g
• Dimensions: 145 x 55 x 40mm (cardboard carton of 50)
• Colour: transparent
• Materials:
Housing: Polycarbonate UL94V-2
Contact blade: copper alloy
Contact pin: 50”µ/1.27 µm gold plating
• Unshielded
• Compliant with Category 6 patch cord standard
• Snagless arc latch design avoids tangling and breakage of latch
• Three prong pin fits stranded or solid cores 23 – 26 AWG / 0.573 – 0.404mm, with insulation OD 0.98 –
1.05mm
• Suitable for termination of solid or stranded UTP cables with sheath O.D. of 5.5 – 6.5mm
• Two piece design with 2 up 6 down configuration to maintain separation
| Colour | Transparent |
|---|---|
| Operating temparature | ‐20˚C ~+60˚C |
| Contact Resistance | 20 milliΩ max |
| Insulation Resistance | 500 MO (min.) |
| Product Name | 8p8c/RJ45 |
