This fully shielded 90 degree Category 6A plug with zinc alloy housing offers 8 way entry design with quick, easy and reliable termination.

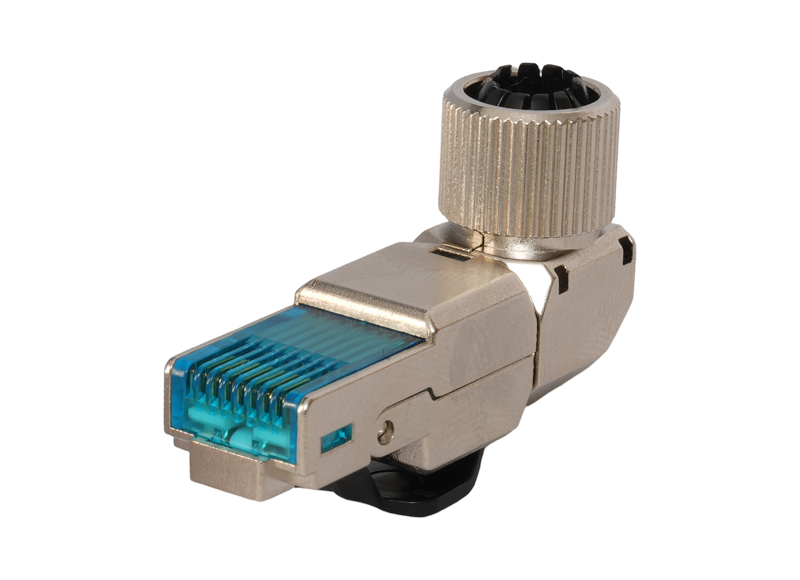

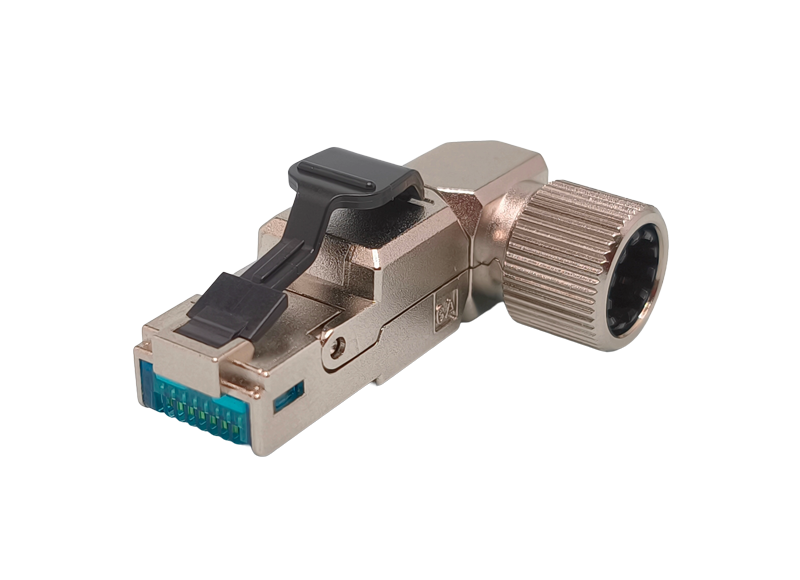

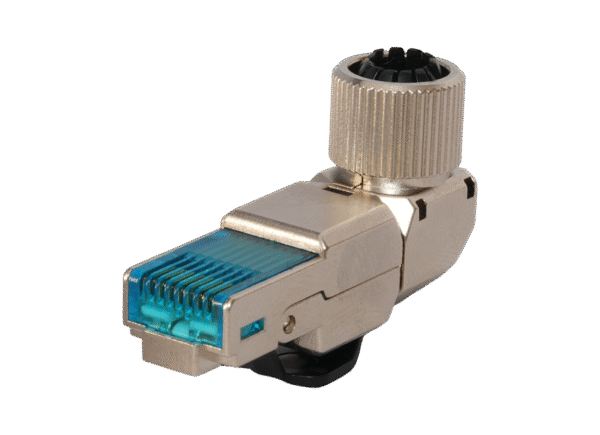

8 Way Angleable 90° Category 6A Toolless Plug
This fully shielded 90 degree Category 6A plug with zinc alloy housing offers 8 way entry design with quick, easy and reliable termination.
Features:

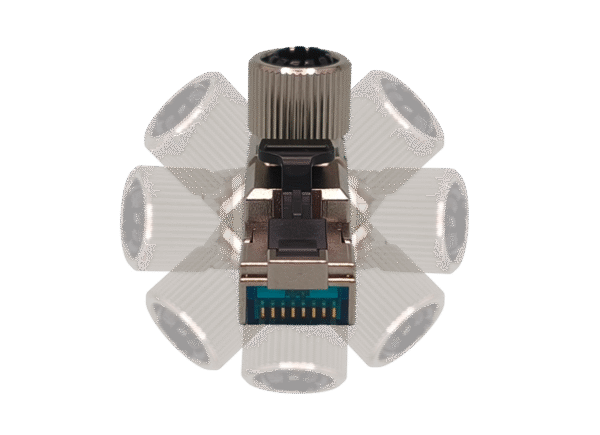

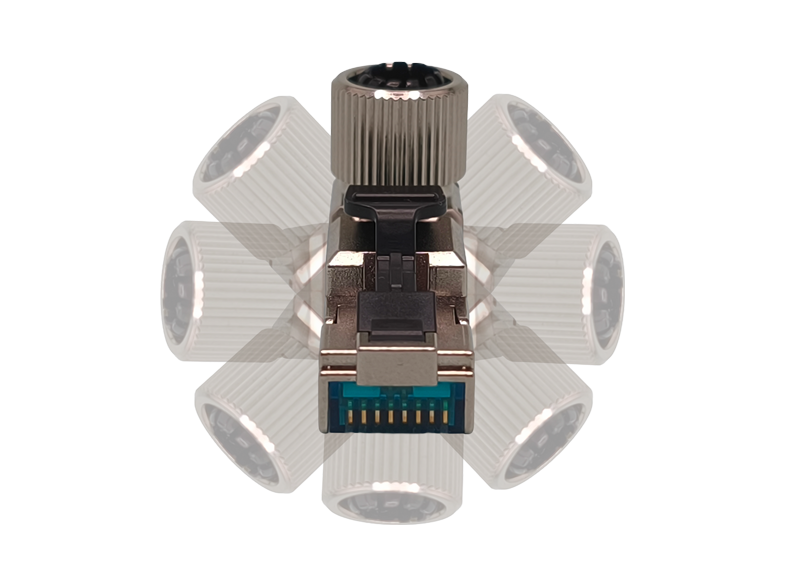

- Flexible cable entry design offers assembly in any one of eight directions
- Capable of multiple adjustment/re-termination if necessary
- High performance data throughput, meets Category 6A data transfer rates (so also suitable for Cat 5e and Cat 6)
- Fully shielded

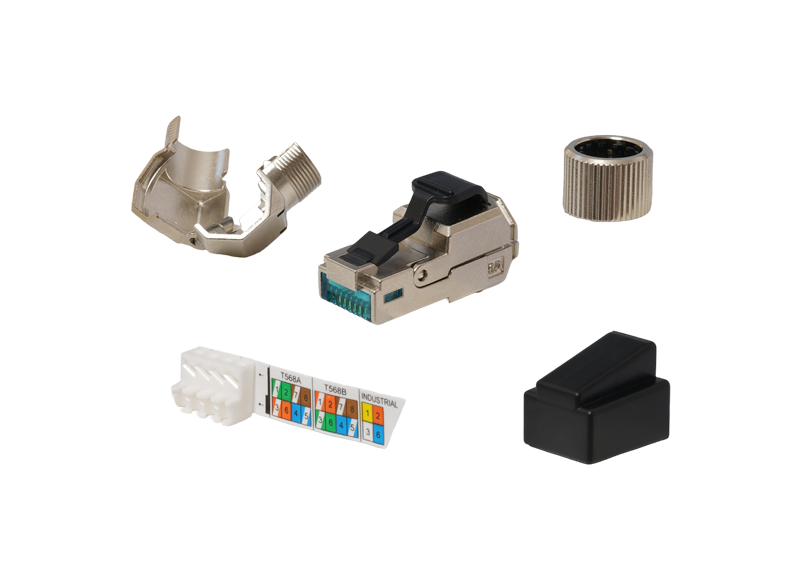

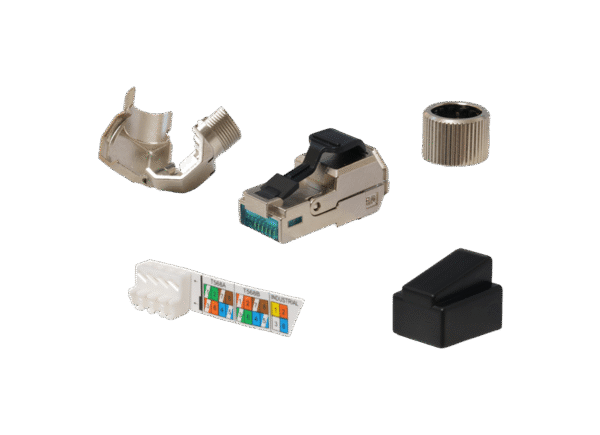

- Colour coded to enable T568A, T568B or Industrial (eg Profinet) wiring
- Suitable for cable O.D: 5.5~8.5mm
- Suitable for UTP 23~27 AWG / 0.40 – 0.57 mm stranded or solid cores (10 installation cycles with 23-26AWG; 5 installation cycles with 27AWG)
- Mating cycles: 750 minimum
- Suitable for assembly of angled patchleads
- Easy assembly – suitable for field termination, especially MPTL installations
- 4PPoE compliant
Specifications:
- Net weight 16g (including primary packaging):
- Dimensions: 120x90x15mm (in primary packaging)
- Colour: Silver and Black
- Materials: Contact: Phosphor bronze, 50u” Gold plating
- Housing: Zinc-alloy, Nickel Plated
- IDC Terminals: Phosphor Bronze, Tin Plated
- IDC Housing cover: Polycarbonate
| Colour | Silver and black |
|---|---|
| Weight (approx) | 16g |
| Packaging | Individual poly bags then in bags of 10 |
