LSA+ Type IDC Contacts

LSA+ Type IDC Contacts

3 way and 4 way PCB mount IDC contacts for LSA+ connections.

Product Code(s): B238, B239 Categories: ,
Specification PDF

3 way and 4 way PCB mount IDC contacts for LSA+ connections.

  • Net weight (including primary packaging):
    • B238: 1.65 B239: 2.83
    • B238#50: 82.50 B239#50: 141.5
  • Dimensions:

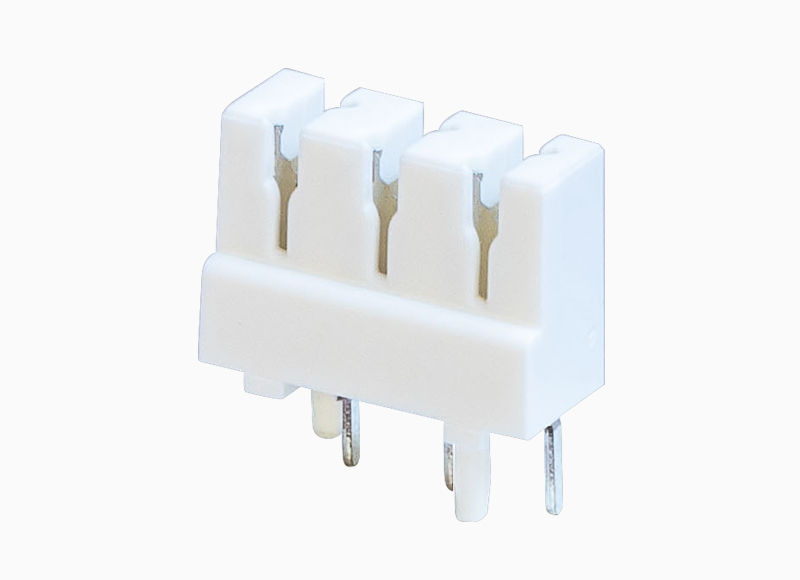

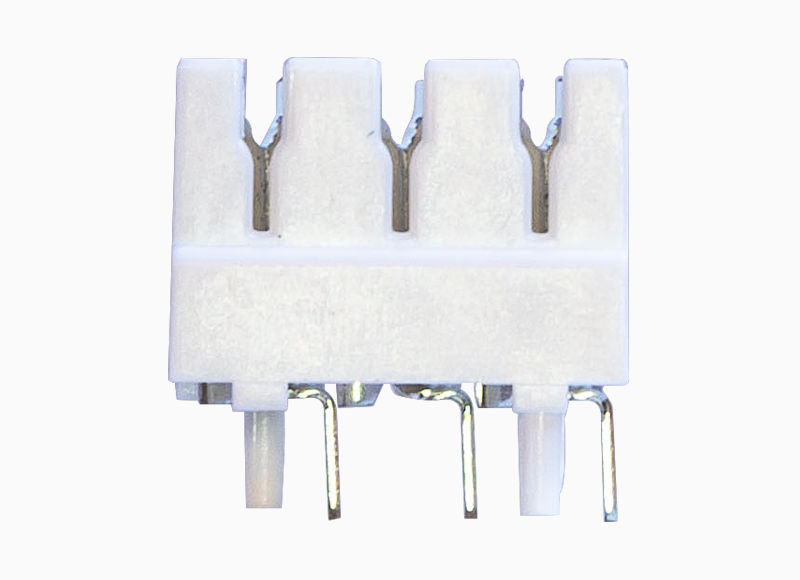

    • B238 (3 way): 16.72 x 21.8 x 7.2 mm

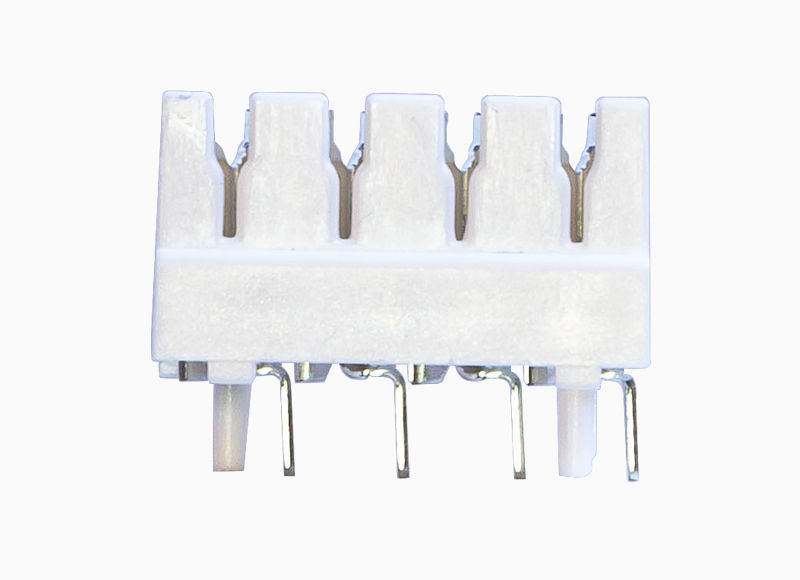

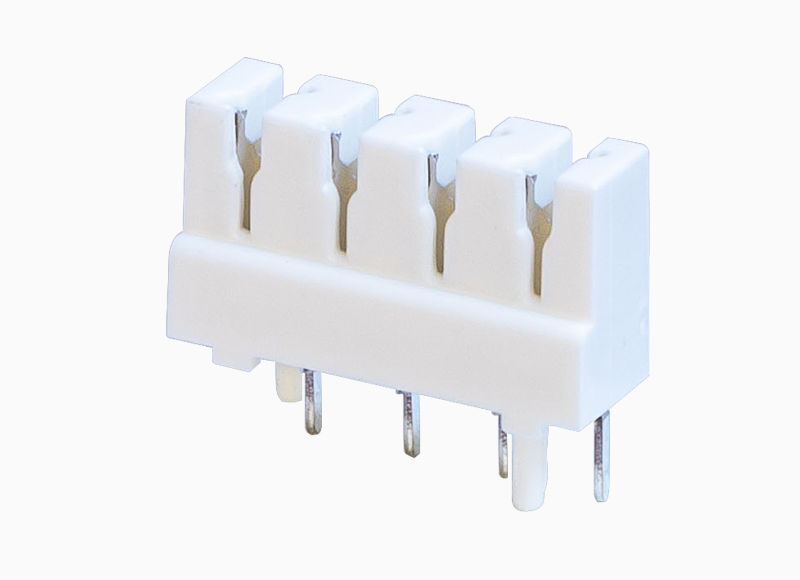

    • B239 (4 way): 16.9 x 21.8 x 7.2 mm
  • Colour: White
  • Materials:
    • Housing: PC UL94V-0
    • Contacts: Phosphor bronze with tin plating
  • Termination using LSA+ type punch down tool. No need for soldering or screw terminations
  • Includes PCB mount retaining posts for heat staking, ensuring a secure fit
  • Pitch of 5.08mm between contacts
  • Voltage rating of 60V AC RMS
  • Operating temperatures from -20° to 125°
  • Suitable for wave soldering
  • Known by BT codes 238A and 239A
  • B239 and B238 are alternatives to Krone 6048-1-001-04 and 6048-1-001-03
