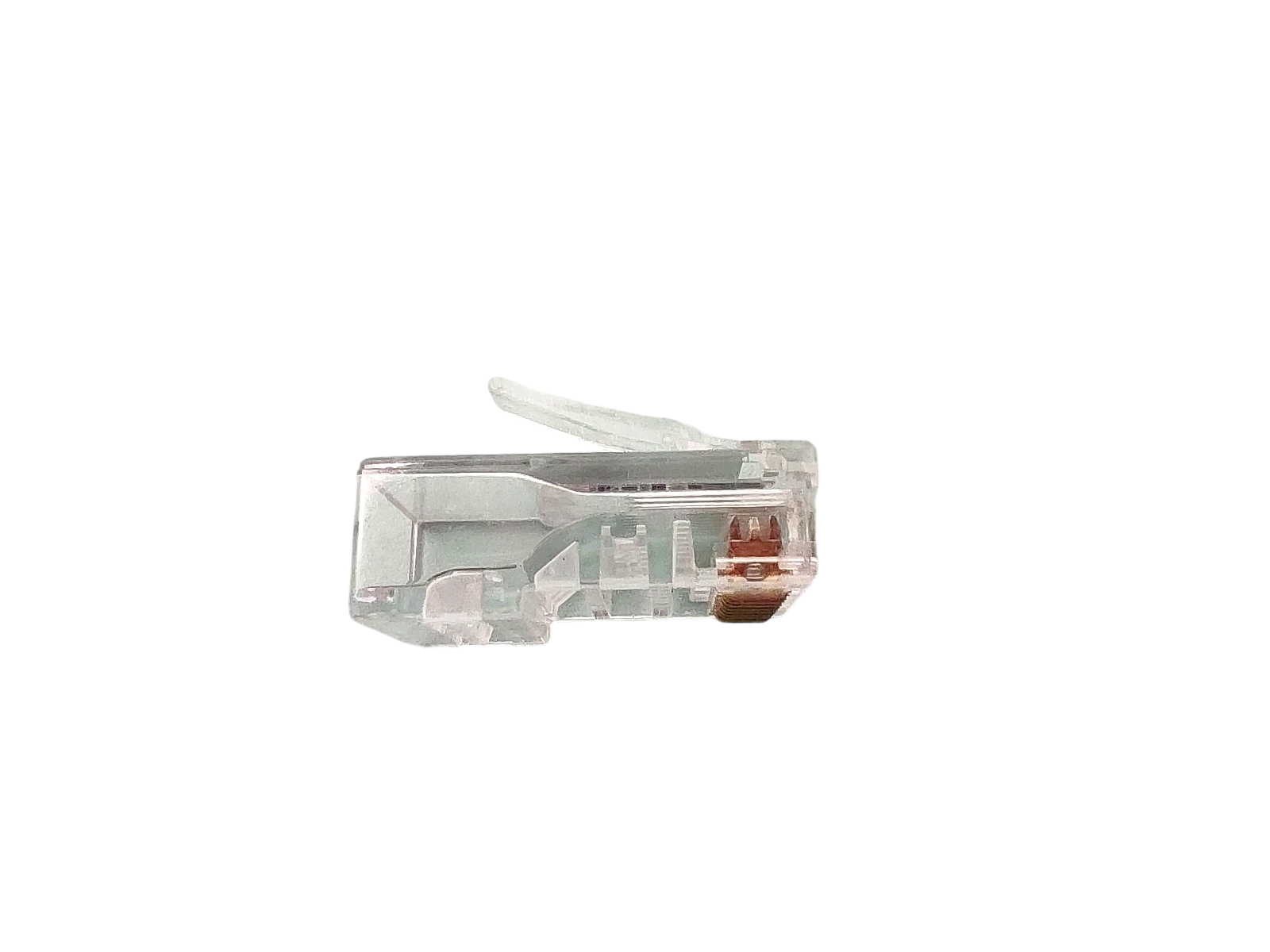

Modular Plug 8p8c RJ45

8 position 8 contact plug used mainly for data cabling systems (eg Category 3, 4 and 5e). Known mainly as RJ45 connector but also used in RJ48 and RJ61 applications.

Specification PDF

8 position 8 contact plug used mainly for data cabling systems (eg Category 3, 4 and 5e). Known mainly as RJ45 connector but also used in RJ48 and RJ61 applications.

•

• Suitable for round cable

• UL listed

• 3 prong contact blades are suitable for stranded and/or solid wire from 23 ~ 26 AWG

• Can be used for core O.D. 0.96 – 1.02mm

• Standard or higher gold plating versions available – increased gold plating is suitable for high number of insertions or for use with power over ethernet (POE)

Net weight (bag of 100): 152g approx..• Dimensions (bag of 100): 125 x 100x 45mm approx.• Colour: Transparent• Materials:
Housing: Polycarbonate UL94V-2
Contact blade: Copper alloy
Gold plating: P88RX15: 15µ”/ 0.38µm P88RX50: 50µ” / 1.27µm• Electrical specification:
UL applications: 250 Volts AC max. at 2 Amps.
Dielectric withstanding voltage: 1000 Volts AC. 60 secs
Insulation resistance: 500MΩ
Contact resistance: 20mΩ Max.
