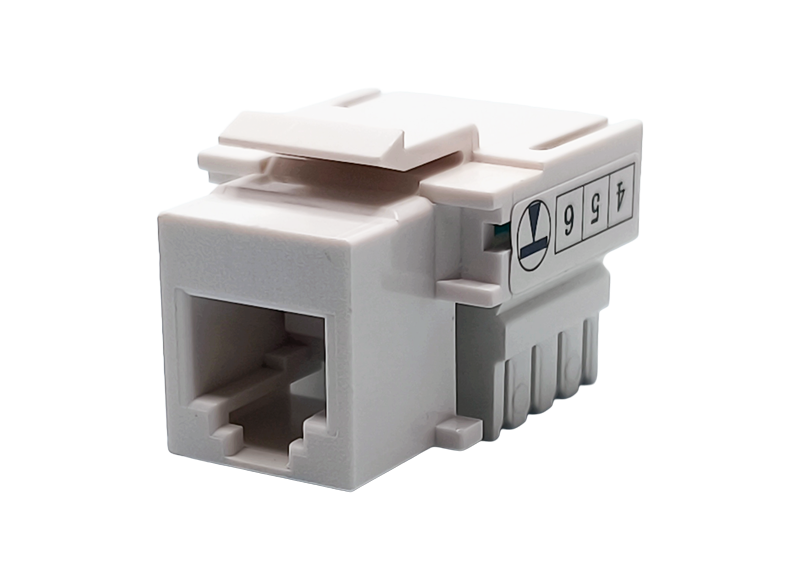

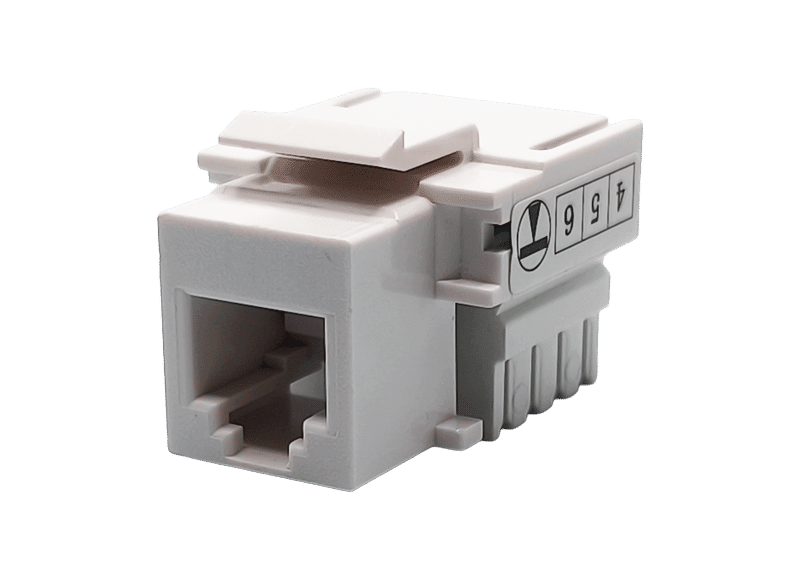

RJ12 6p6c keystone socket

RJ12 6p6c keystone socket

This keystone offers a convenient way to incorporate RJ11 or RJ12 socket into a variety of cabling situations. With its standardised dimensions, it can be used for easy snap-in mounting in e.g. a keystone patch panel, faceplate or surface-mount box.

Product Code(s): KSH66wh, KSH66bk Category:
Specification PDF

Distributor(s)

This keystone offers a convenient way to incorporate RJ11 or RJ12 socket into a variety of cabling situations. With its standardised dimensions, it can be used for easy snap-in mounting in e.g. a keystone patch panel, faceplate or surface-mount box.

– RJ11 and RJ12 high quality keystone socket
– Easy to use cable retention facility
– LSA+/110 dual type IDC contacts suitable for cable with solid wire cores measuring 26-24 AWG / 0.40- 0.51mm
– Also available in D Universal and Panel Mount versions

– Weight: 8g approx.
– Dimensions: 36.4 x 22.8 x 22.3mm approx.

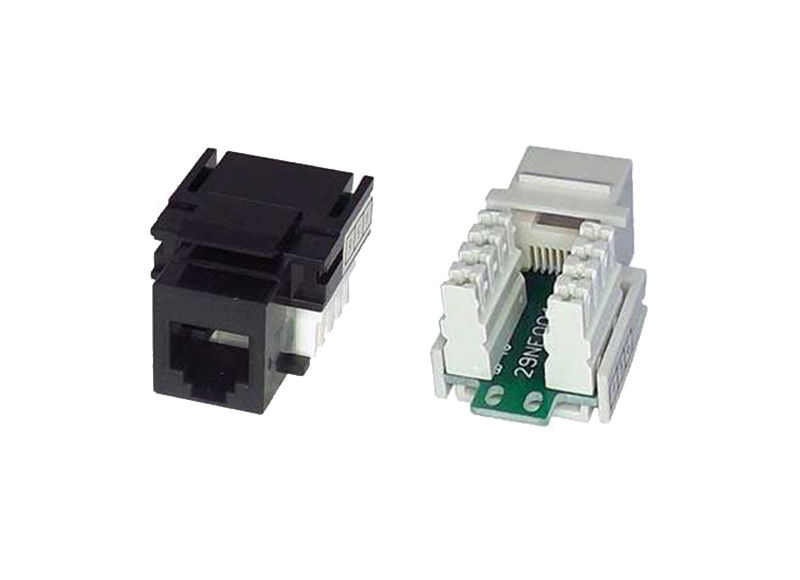

– Colour: black or white
– Operating temperature: -20˚C to 80˚C

– Housing: UL rated ABS
– Socket contact: gold-plated over nickel over phosphor bronze
– IDC housing: PC/ABS
– IDC contact: tin-plated phosphor bronze

Colour

Black and White

Weight (approx)

8g

Packaging

In individual poly bag with instructions, then bagged in 20’s
