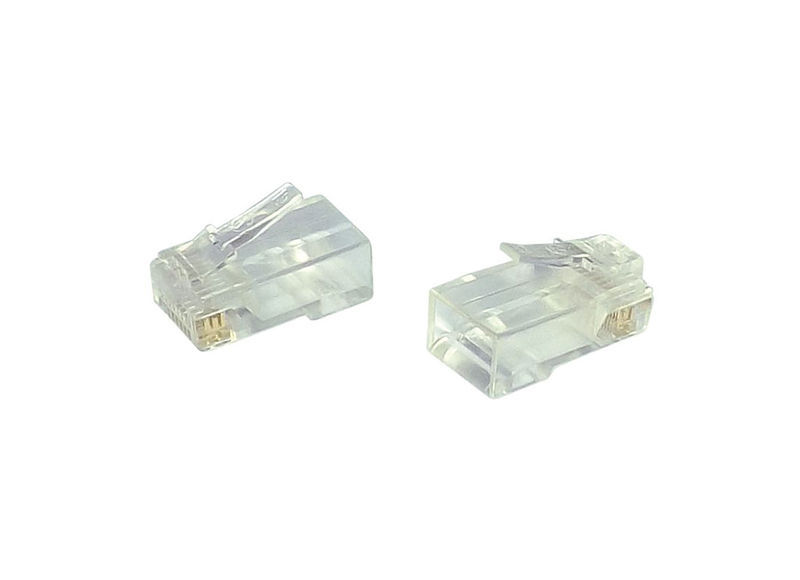

Category 6 SPEEDY RJ45 Plug

Category 6 SPEEDY RJ45 Plug

Our SPEEDY plugs are designed to simplify twisted pair terminations by allowing the wire pairs to be easily inserted through the plug and out of the front. This allows the installer to easily check the wiring order before crimping the connector. Twist is maintained more easily enabling a better performing crimp. Waste is minimized and the plugs are suitable for either stranded or solid wires.

THIS PLUG IS NOT SUITABLE FOR CRIMPING WITH OUR TOOL TRCSPDY3

Our crimping tools TRCSDPY, TRCSPDY2 or TRCSPDY4 are suitable for use with all SPEEDY feed through plugs

Product Code(s): PXSPDY6b Category: SPEEDY RJ45

Specification PDF

Distributor(s)

THIS PLUG IS NOT SUITABLE FOR CRIMPING WITH OUR TOOL TRCSPDY3

Our crimping tools TRCSDPY, TRCSPDY2 or TRCSPDY4 are suitable for use with all SPEEDY feed through plugs

– Housing: Polycarbonate UL94‐V0
– Contact pin: 50”µ/1.27 µm gold plating over nickel over phosphor bronze
– Shell: Phosphor bronze

Supplied in polybags of 10 then 100 then 500. Also available with reduced packaging as bags of 200
10: PXSPDY6b#10

100: PXSPDY6b#100

200: PXSPDY6b#200 (Supplied loose in bag)

500: PXSPDY6b#500

Colour	Transparent
Operating temparature	‐25˚C – 55˚C
Contact Resistance	30 milliΩ max.
Insulation Resistance	DC 300V, 100 megaΩ min
Product Name	Plugs
