Multimedia Connectors

D UNIVERSAL Series

D UNIVERSAL Series

TUK’s D UNIVERSAL series of connectors offers a wide variety of audio, video and data connectors all available for use in standard D Series XLR type cut-outs. All connectors are made to relevant standards.

Product Code(s): KCUABDpm, KCUAA2Dpm, KCUAAXDpm, KCUAA3bkDpm, KCUAA311whDpm, KCHDDpm, KCK66Dpm, KOCMMDpm, KOCSMDpm, KOLMMDXDpm, KOLSMDXDpm, KOTSMDpm, KOTMMDpm, SKmcDpm, FACK2Dpm, SACK2Dpm, FACK2SDSpm, SACK3SDSpm, SACK3SDSPM#24, SGKSsu+DSpm, SGACK2SDSpm, SGKSbtDSpm, SGACK2SDSPM#24, SGACK90DSpm, SGACK902DSpm, SEKeiDSpm, KBNC50Dpm, KSPbkDpm, KSPrdDpm, SKFDpm, SGKSjeDSpm, KSH66Dpm, KCFDpm, KGB1Dpm, KRCA*bkpm, KC3.5bkDpm, SLJbkDpm, KBNC1275bkDpm, KADkpk, KADKpk#20, KADscrew R/F, MDUbk, Category:
Specification PDF

Distributor(s)

TUK’s D UNIVERSAL series of connectors offers a wide variety of audio, video and data connectors all available for use in standard D Series XLR type cut-outs. All connectors are made to relevant standards.

Each connector supplied as a kit comprises of connector and D UNIVERSAL adaptor (KADpm or KADSpm)
For specifications of couplers and sockets, see separate web pages linked in the Spec Sheet.

TUK’s D UNIVERSAL series of connectors offers a wide variety of audio, video and data connectors all available for use in standard ‘D Series’ XLR type cut-outs. Designed for rear mounting, our connectors have a pleasing flush appearance when mounted in suitable panels. All items in the range can be mounted quickly without need for any securing nuts, as our PATENTED 26 x 31mm mounting plates (made from black polycarbonate or nickel plated PC/ABS according to connector type) are pre-threaded for M3 screws. All connectors are made to relevant standards. Category 6 and 6A connectors are produced, for example, to FCC68 and to TIA/EIA 568B and have an insertion life of >750 mating cycles. All products are CE compliant (i.e including ROHS and REACH) TUK seeks continuously to expand the range to ensure comprehensive coverage of established and new voice, A/V and data cabling technologies.

Code – Description

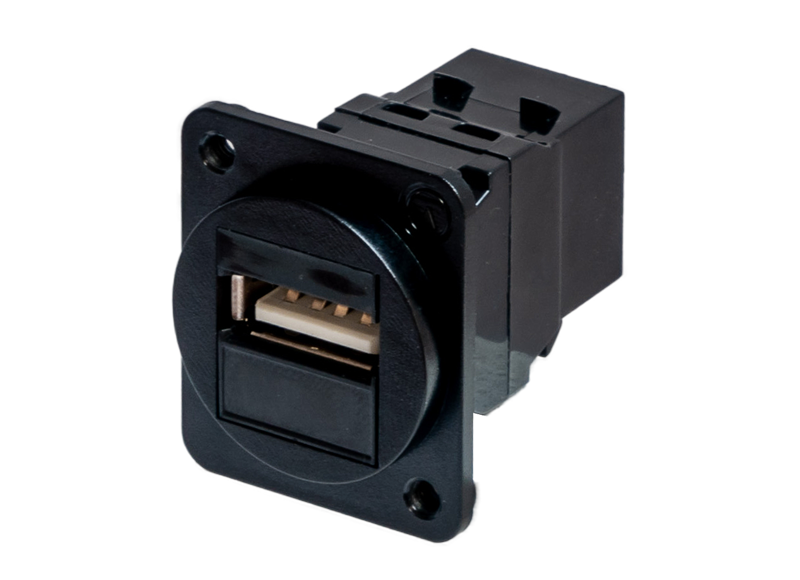

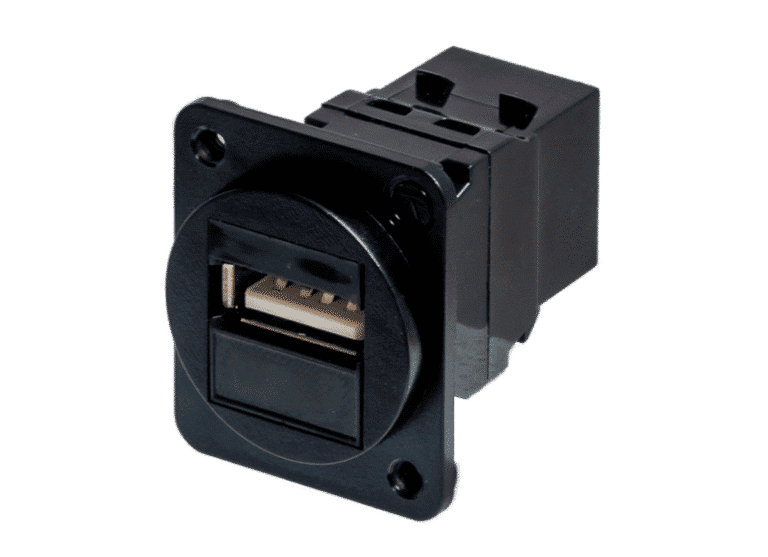

KCUABDpm – USB A female to B female adaptor, reversible
KCUAA2Dpm – USB2.0 A female to A female coupler
KCUAAXDpm – USB2.0 A female to A female coupler, either way insertion
KCUAA3bkDpm – USB3 female to female coupler, cross-wired
KCUAA311whDpm – USB3 female to female coupler, wired 1:1
KCHDDpm – HDMI female to female coupler
KCK66Dpm – RJ12 6P6C female to female coupler
KOCMMDpm – Fibre female to female coupler SC to SC, multi mode simplex
KOCSMDpm – Fibre female to female coupler SC to SC, single mode simplex

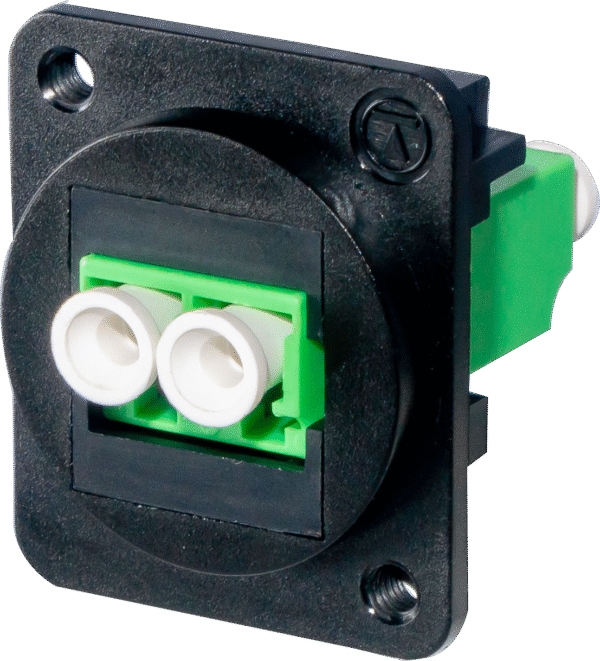

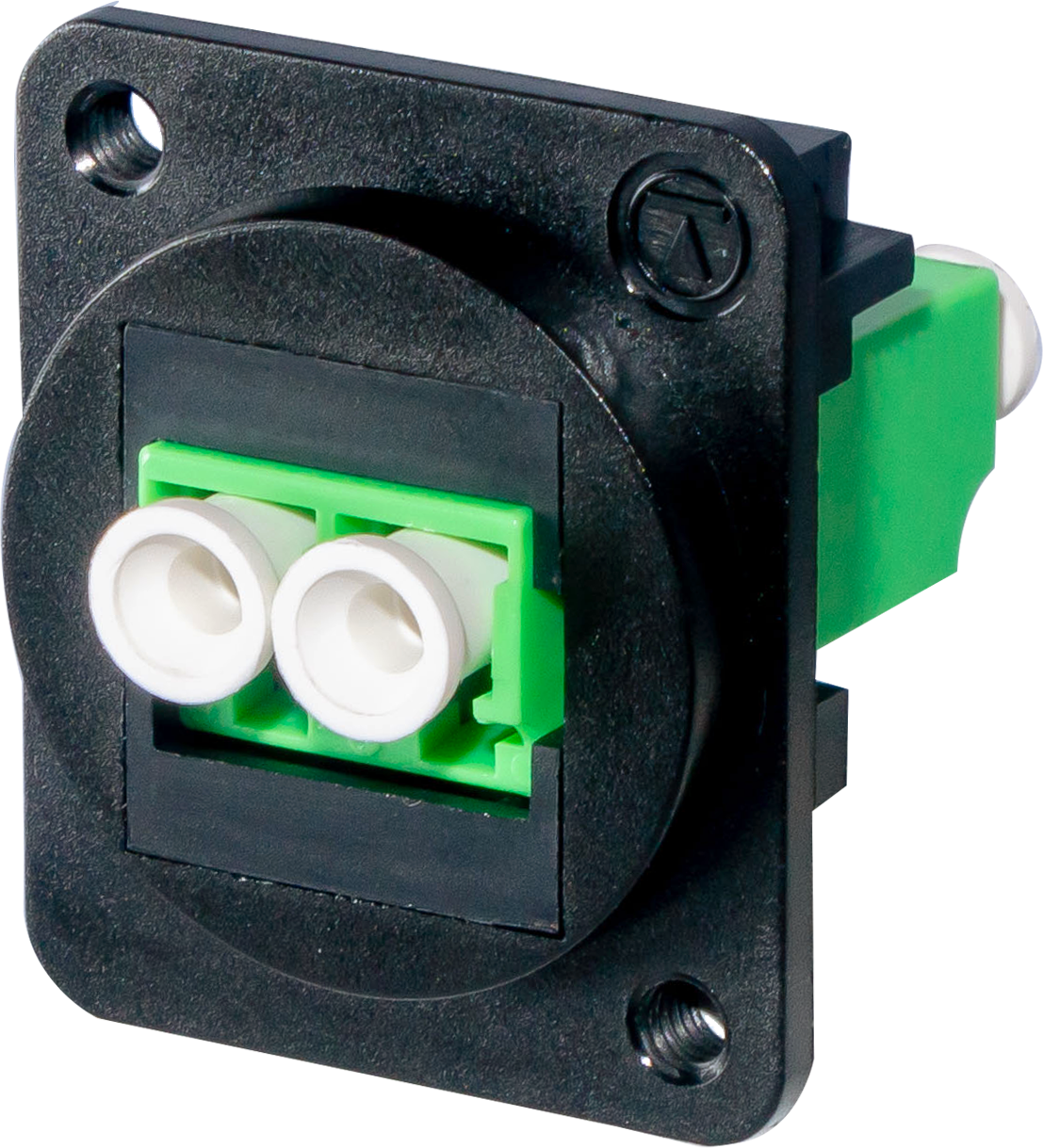

KOLMMDXDpm – Fibre female to female coupler LC to LC, multi mode duplex

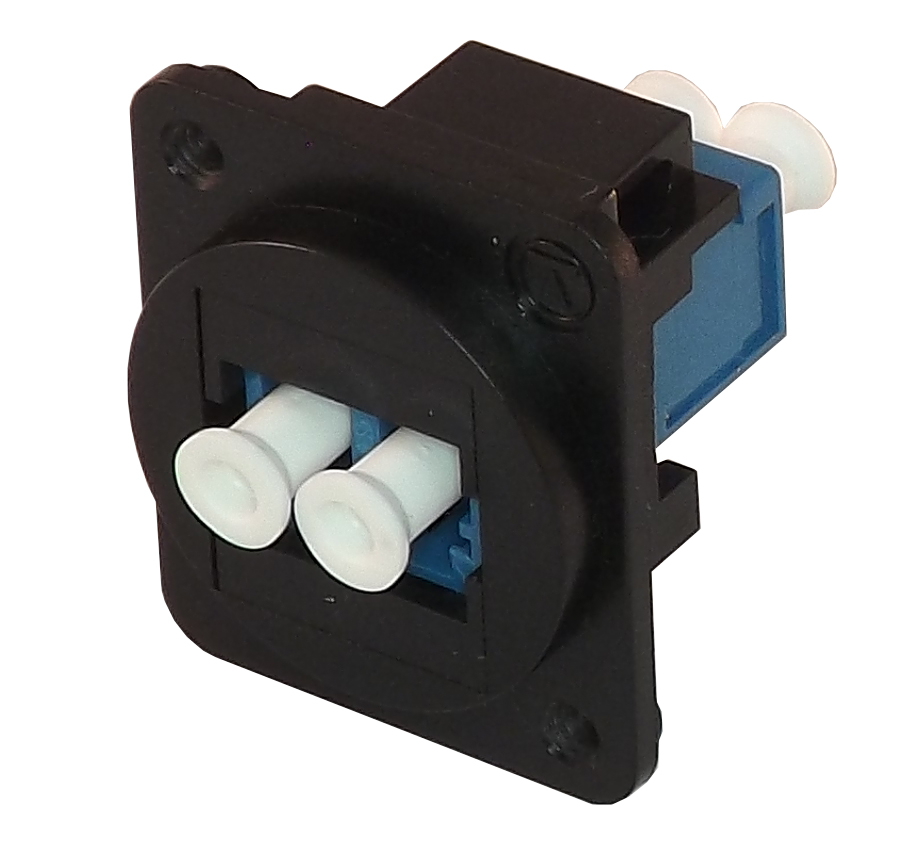

KOLSMDXDpm – Fibre female to female coupler LC to LC, single mode duplex

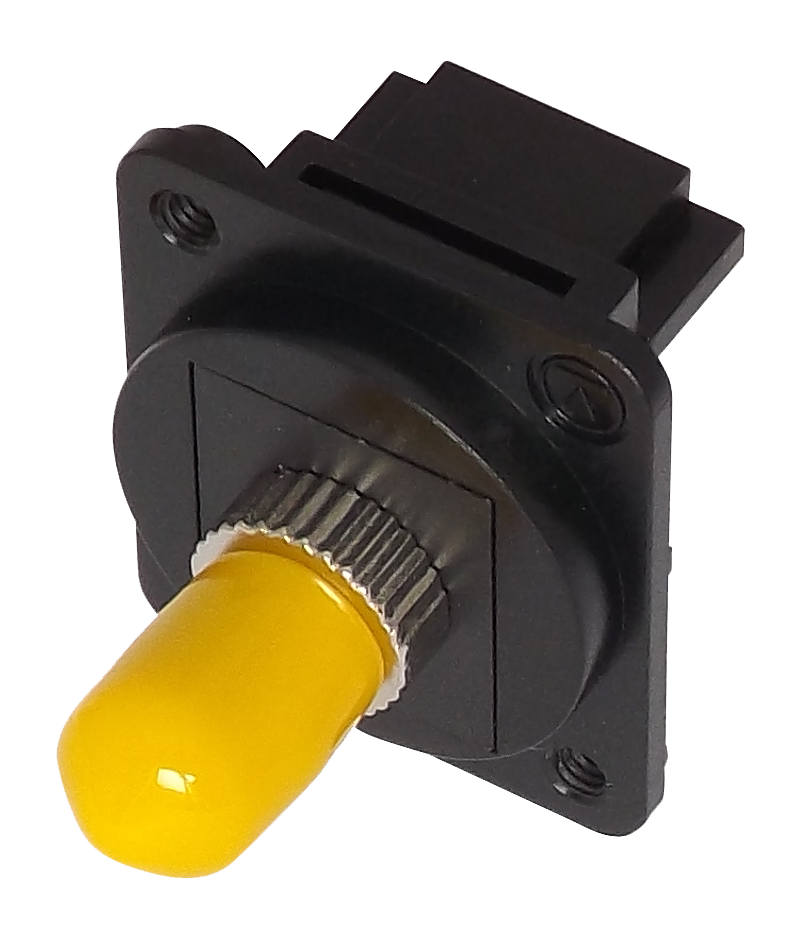

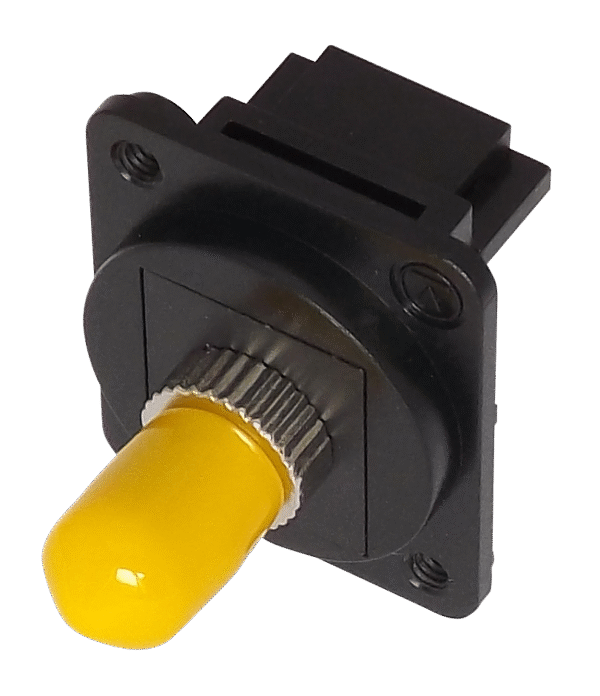

KOTSMDpm – Fibre female to female coupler ST to ST, single mode simplex, yellow dustcover
KOTMMDpm – Fibre female to female coupler ST to ST, multi mode simplex, black dustcover

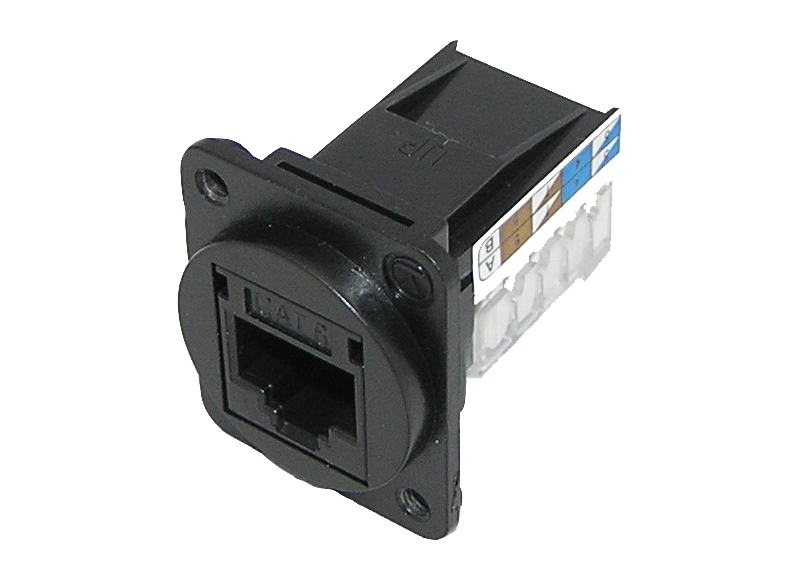

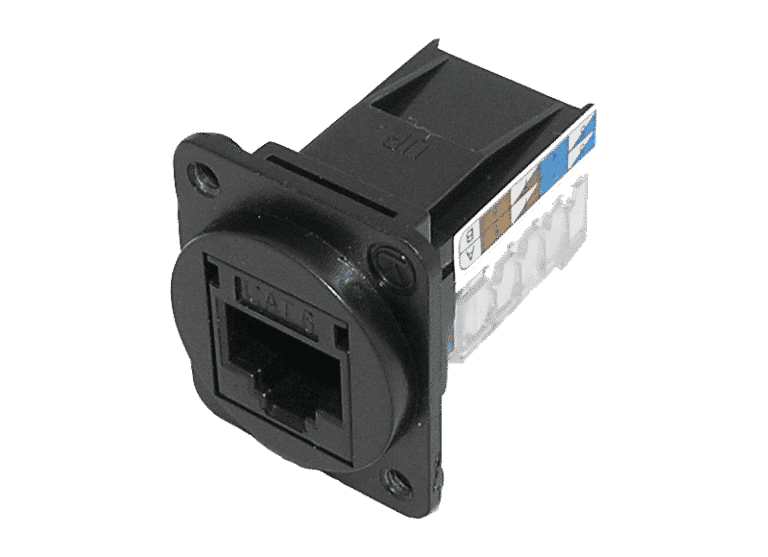

SKmcDpm – Category 6 IDC socket, LSA-Plus and 110 type termination, unshielded
FACK2Dpm – Category 5e female to female coupler, unshielded
SACK2Dpm – Category 6 female to female coupler, unshielded
FACK2SDSpm – Category 5e female to female coupler, shielded
SACK3SDSpm – Category 6 female to female coupler, shielded

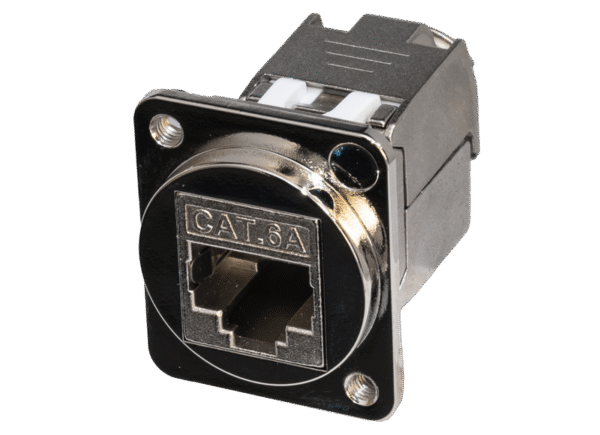

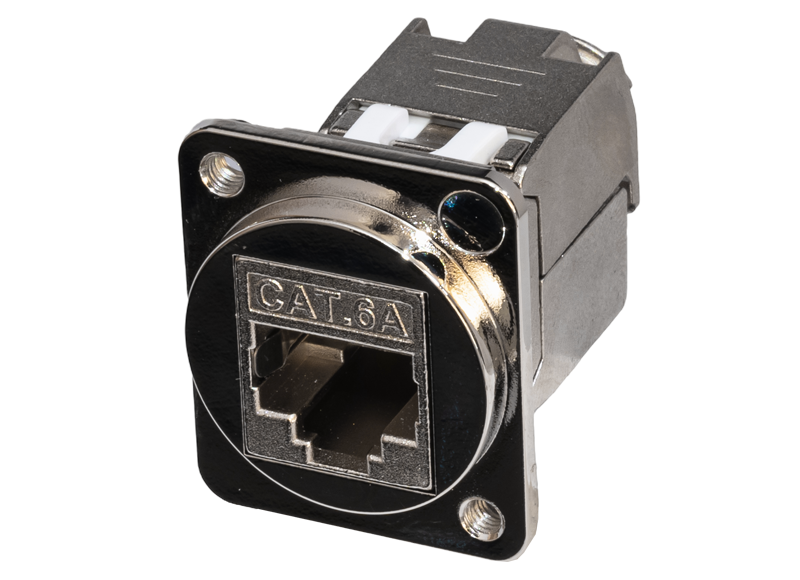

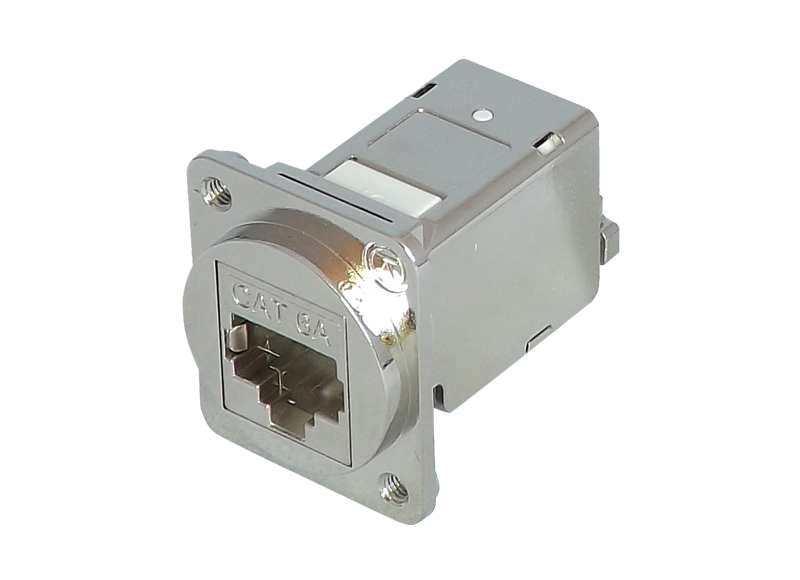

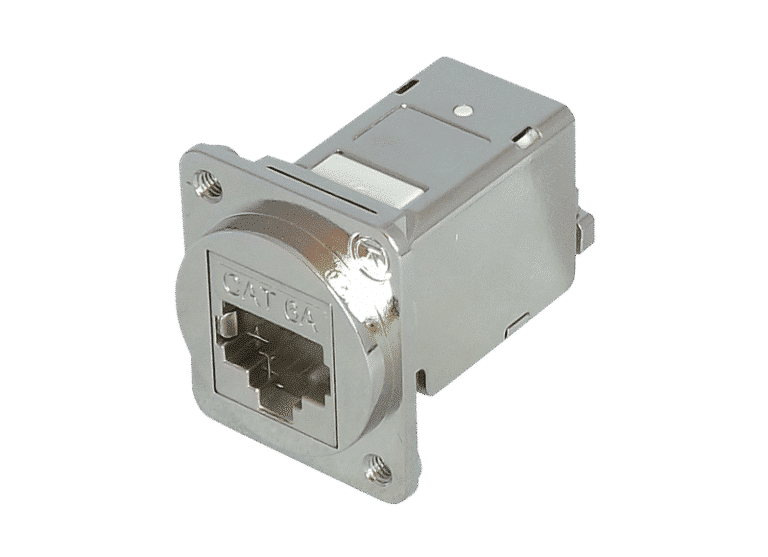

SGKSsu+DSpm – Category 6A tool-less socket, shielded
SGACK2SDSpm – Category 6A female to female coupler, shielded
SGACK90DSpm – Cat 6A female to female coupler, w/rear outlet 90° to front outlet, shielded
SEKeiDSpm – Category 8 tool-less socket, shielded
KBNC50Dpm – BNC 50 ohm female to female coupler
KBNC75Dpm – BNC true 75 ohm female to female coupler(capable of data rates up to 3 Gb/s or higher)
KSPbkDpm – Speaker module in black with black elastic identifier
KSPrdDpm – Speaker module in black with red elastic identifier
SKFDpm – Category 6 tool-less IDC socket, unshielded (Category 5e also available)
SGKSjeDSpm – Category 6A Shielded Keystone Jack
KSH66Dpm – RJ12 6p6c socket, LSA-Plus termination

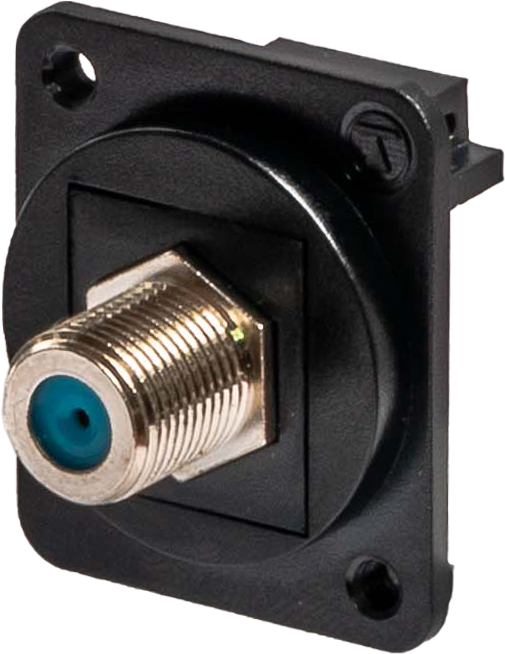

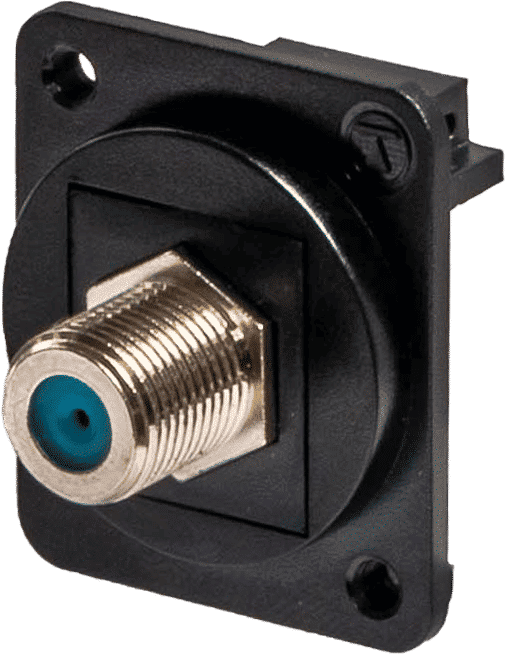

KCFDpm – F connector, female to female, coupler
KGB1Dpm – UK telephone socket – PSTN Master (Slave/Secondary version also available)
KRCA*bkpm – RCA coupler – available with black/white/yellow/red insert
KC3.5bkDpm – 3.5mm coupler
SLJbkDpm – LOKJAC Category 6 tool-less locking keystone
KBNC1275bkDpm – BNC coupler Ultra HD 75 ohm 12Ghz

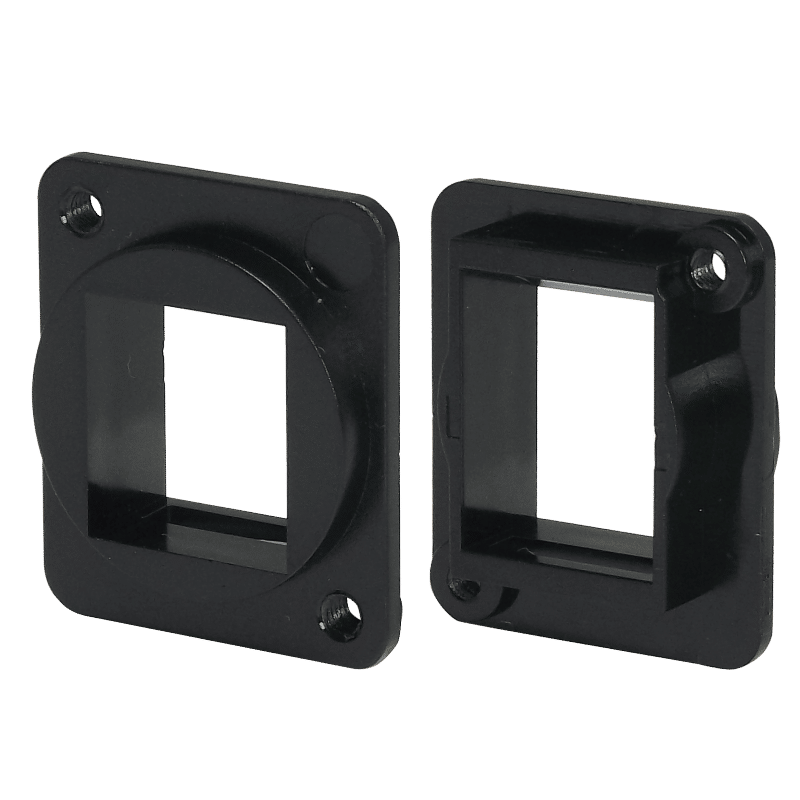

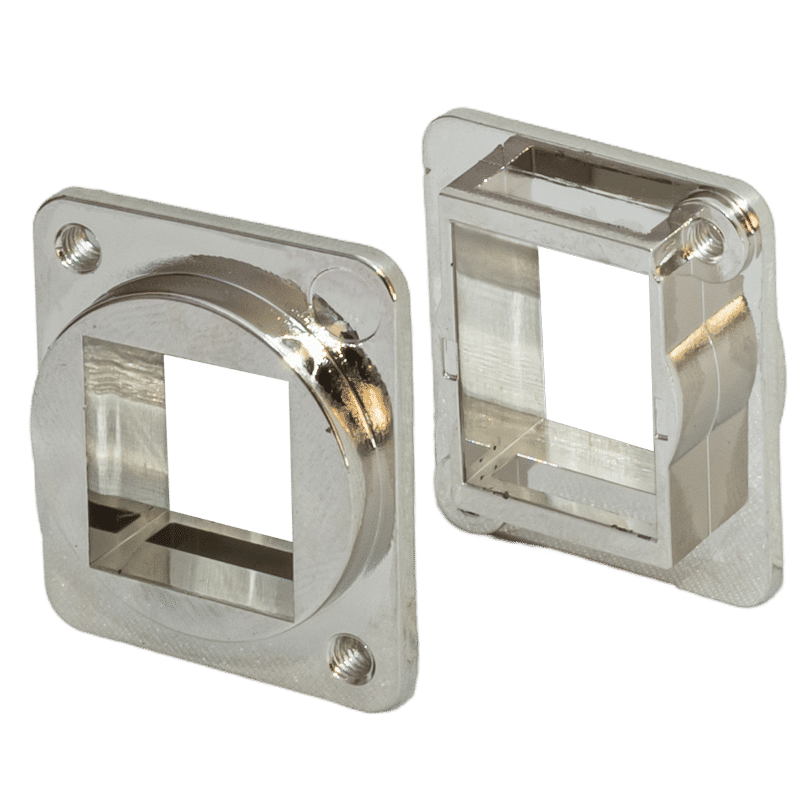

KADkpk – D UNIVERSAL Blank

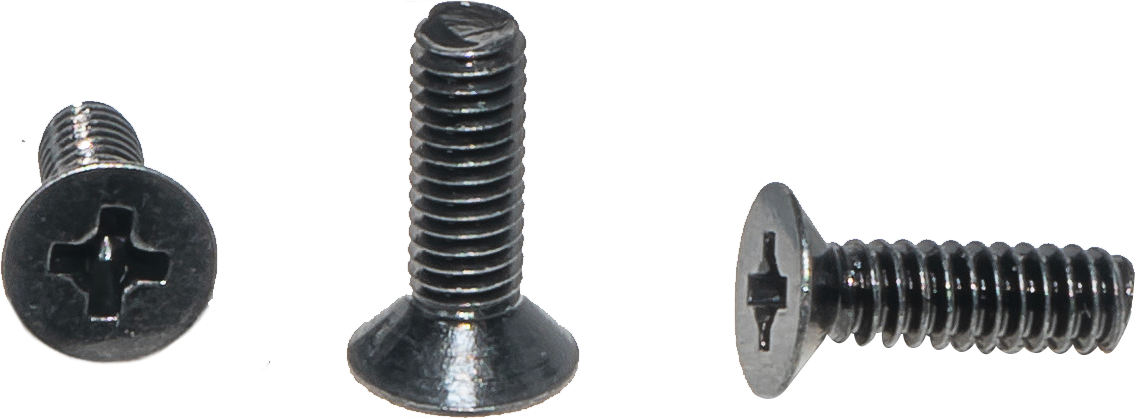

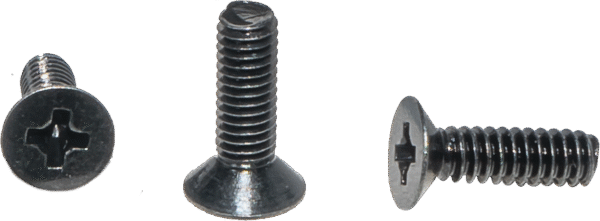

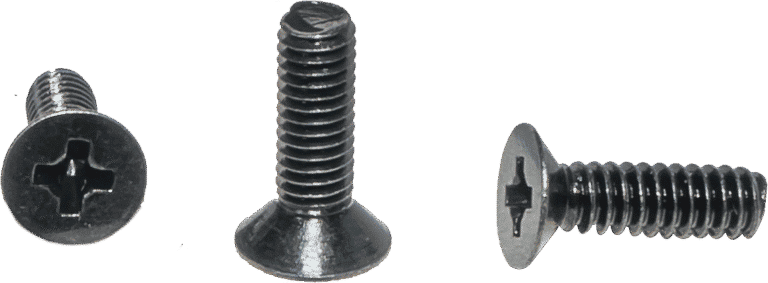

KADscrew R/F – M3 screw to fit standard panels (length: 10mm), in bag of 50 pieces; roundhead or flathead, black
Note : *: Black = bk, Red = rd, Yellow = yw, White = wh
