BNC keystone coupler 50 Ohm

BNC keystone coupler 50 Ohm

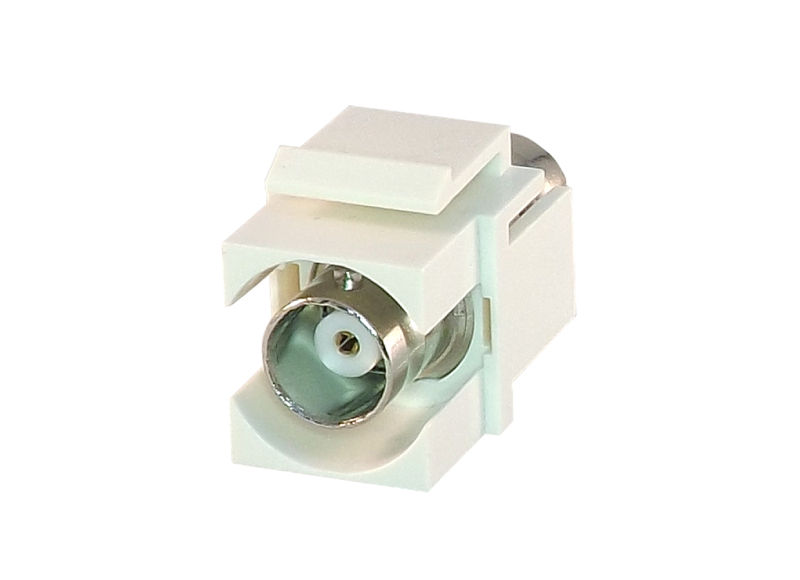

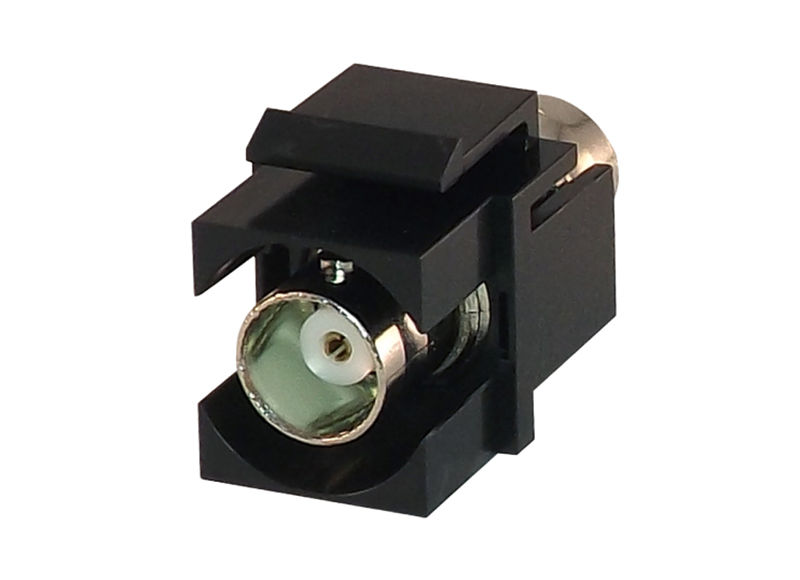

The 50Ω BNC keystone jack is designed to support CCTV and NTSC analog video signals and it snaps easily into any standard sized keystone outlets and patch panels. Available in black or white.

Product Code(s): KBNC50bk, KBNC50wh Category:
Specification PDF

Distributor(s)

The 50Ω BNC keystone jack is designed to support CCTV and NTSC analog video signals and it snaps easily into any standard sized keystone outlets and patch panels. Available in black or white.

– 50Ω feed through female to female connector
– Nickel plating for improved performance with superior signal quality with minimal noise
– Provides a clean and neat appearance installation
– Snap in keystone jack provides a fast and easy installation
– Designed to fit industry standard keystone outlets and patch panels
– Black and white versions available to match panel or faceplate colour
– Only designed for RF analog signals and 50Ω data cables. For digital and HD video signals the KBNC75 should be used
– Also available as part of our panel mount and D UNIVERSAL ranges

– Dimensions: 32.5×16.85x21mm (LxWxH)
– Weight: approx. 16.34g

– Keystone housing: ABS UL94V-0
– Adaptor body: tarnish resistant nickel plated brass
– Centre contact: gold plated zinc alloy
– Insulator: PP
– Impedance: 50Ω & Frequency: 0 – 4 GHz

Weight (approx)

17g

Packaging

Supplied in individual polythene bags, then in bags of 20
