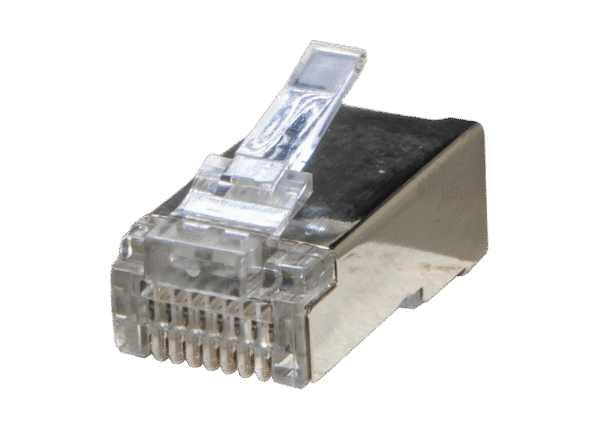

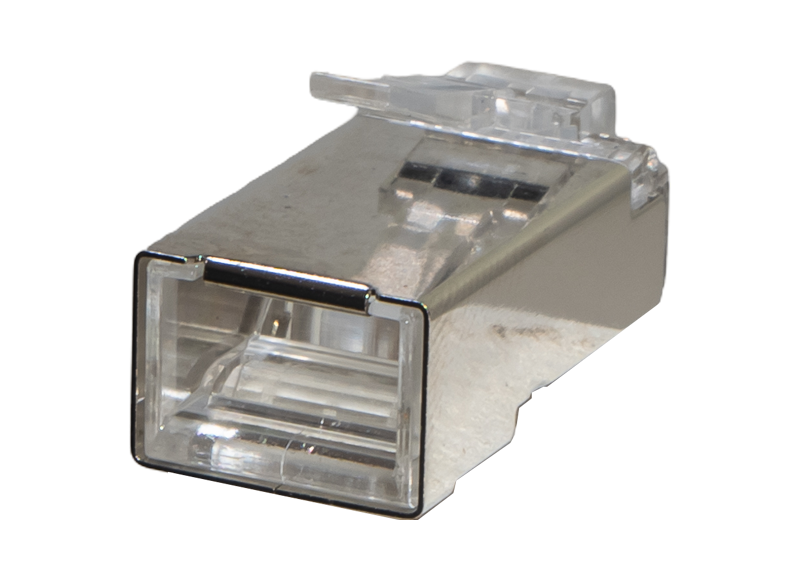

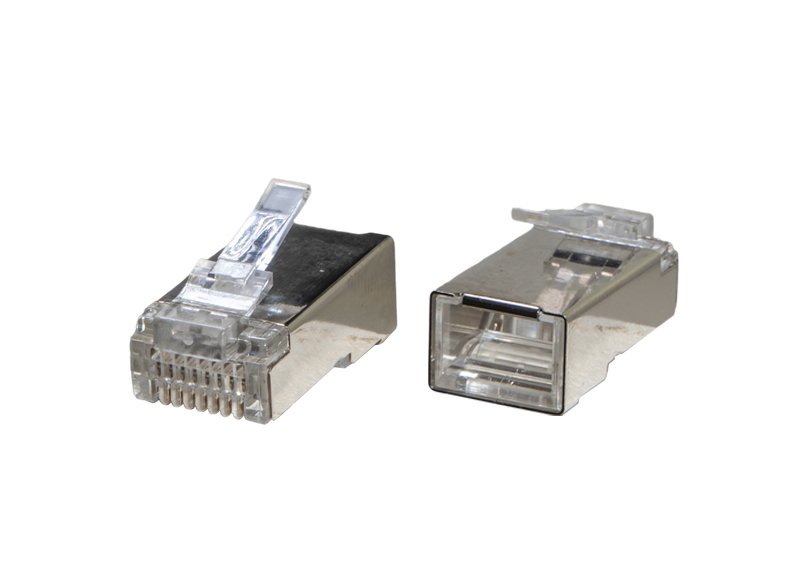

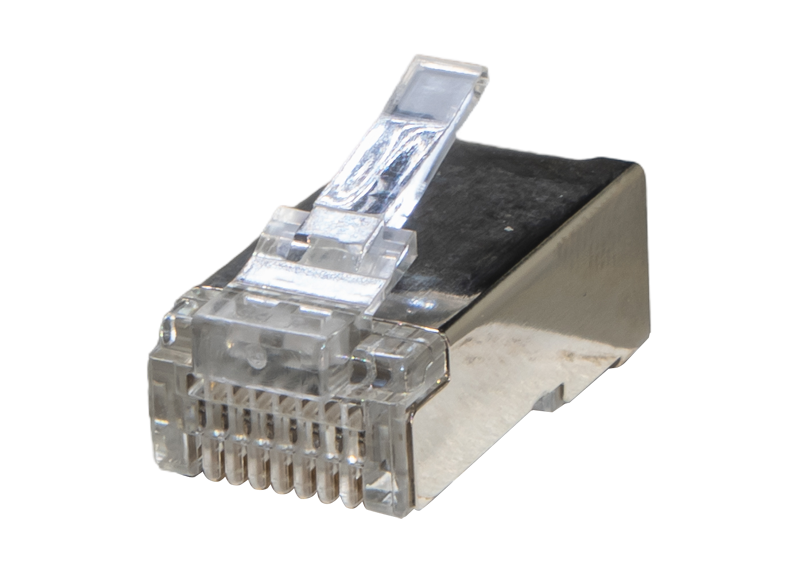

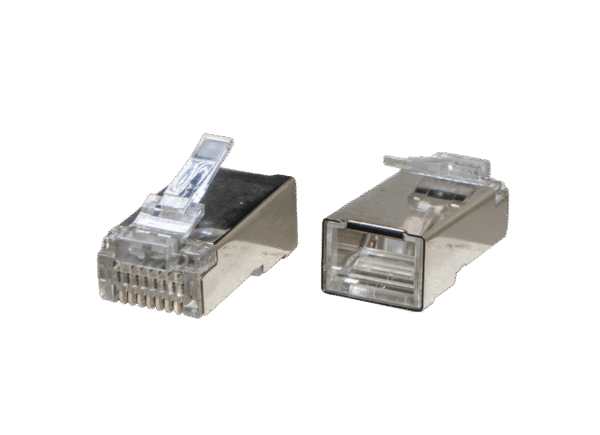

Shielded Modular Plug 8p8c RJ45

Shielded 8 position 8 contact plug used mainly for data cabling systems (eg Category 3, 4 and 5e). Known mainly as RJ45 connector but also used in RJ48 and RJ61 applications.

Specification PDF

Shielded 8 position 8 contact plug used mainly for data cabling systems (eg Category 3, 4 and 5e). Known mainly as RJ45 connector but also used in RJ48 and RJ61 applications.

• Suitable for round cable
• UL listed
• 3 prong contact blades are suitable for stranded and/or solid wire from 24 ~ 26 AWG
• Can be used for core O.D. 0.96 – 1.02mm, cable O.D. 6mm
• Suitable for use with power over ethernet (POE)

• Net weight: 124g (including primary packaging):
• Dimensions:150x130x15xmm
• Colour: Silver
• Materials:
o Housing: Transparent polycarbonate UL94V
o Shell: Copper nickel alloy
o Contact blade: Copper alloy with 50µ” / 1.27µm Gold plating

Packaging: Packed in 50s then in 1000s
