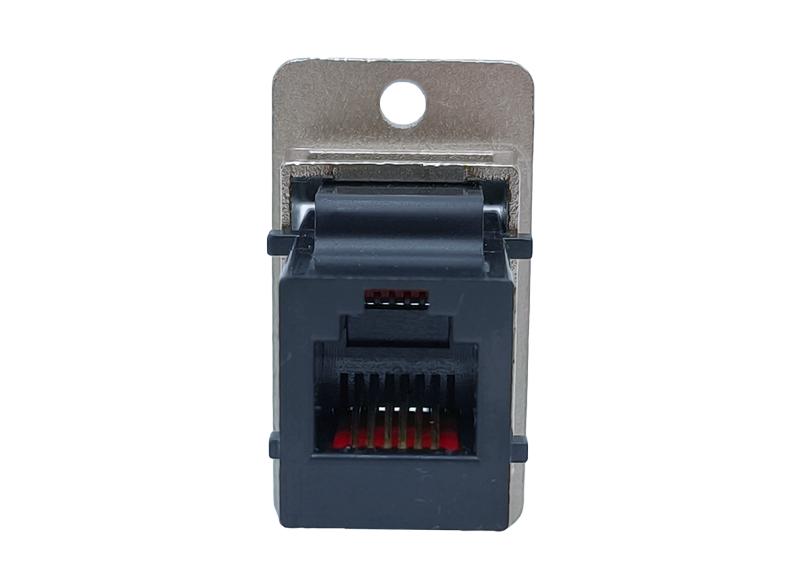

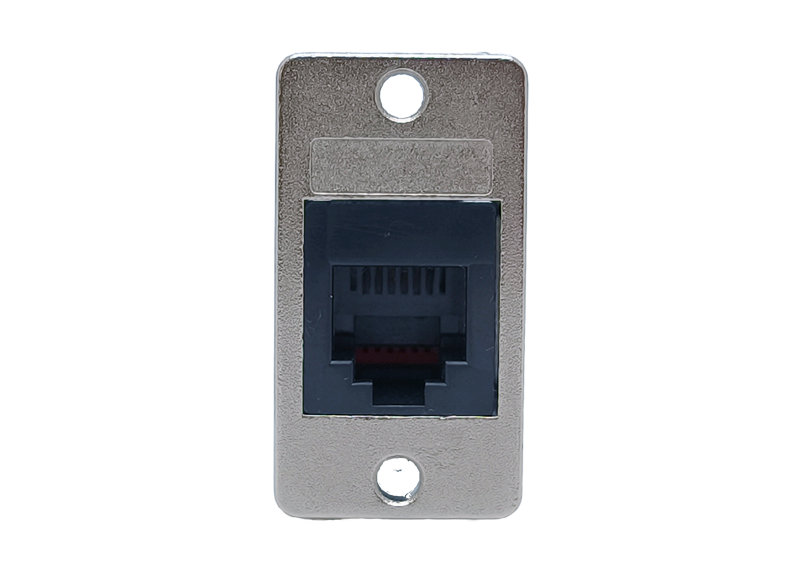

RJ11 and RJ12 (6p4c + 6p6c) high quality panel mount coupler
RJ12 6p6c panel mount through coupler
RJ11 and RJ12 (6p4c + 6p6c) high quality panel mount coupler
- RJ11 and RJ12 (6p4c + 6p6c) high quality panel mount coupler
- Easily mounted into panels of virtually any thickness
- Die cast adaptor is robust and ensures easy mounting into standard cut-out
- Mounting options: supplied with 2 sets of screws
- Weight: 16g approx.
- Dimensions: 19.12 x 35.50 x 26.5 approx.
- Colour: silver and black
- Material:
- Contacts: gold plated
Coupler housing: ABS
Panel mount adaptor: Zinc alloy
Supplied with 2 pairs of nickel-plated steel screws:
2 x round head self-tapping
2 x round head (4.40 x ¼”) machine
Packaging: Supplied as a kit in individual polythene bags then in bags of 20
| Colour | Silver and black |
|---|---|
| Contact Resistance | 20 milliΩ max |
| Insulation Resistance | DC 1000V, 500 megaΩ min |
| Weight (approx) | 14g |
