TUK’s range of keystone connectors offers a comprehensive selection of audio, video and data connectors. All connectors are made to relevant standards.

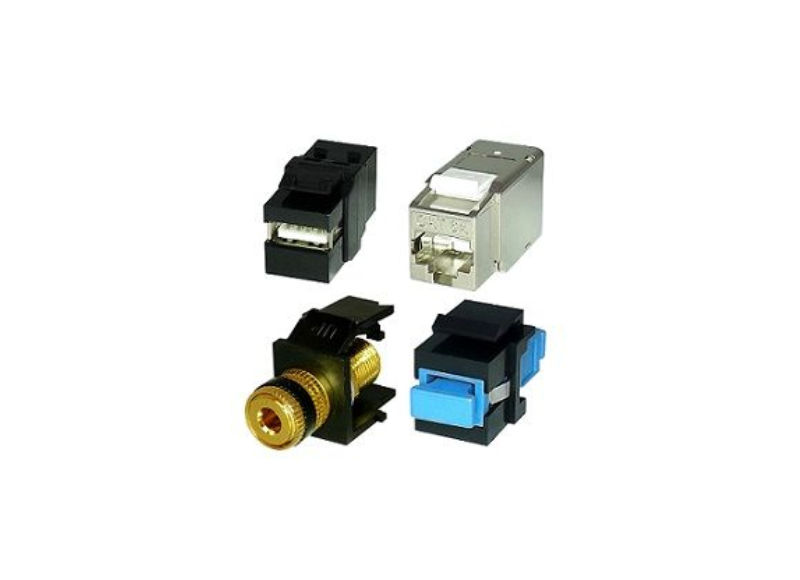

Keystone Connectors Range
TUK’s range of keystone connectors offers a comprehensive selection of audio, video and data connectors. All connectors are made to relevant standards.
– For detailed specifications see separate web pages as follows:
– Our keystones are designed for a standard cut-out measuring 14.86mm wide x 19.4mm high in a panel approximately 1.3mm thick. For aesthetic reasons, we recommend a twin walled panel, or an adaptor, like our KApma.
Code – Description(Color)
KCUABbk – USB A female to B female adaptor, reversible (Black)
KCUAA2* – USB2.0 A female to A female coupler (Black , White)
KCUAAXbk – USB2.0 A female to A female coupler, reversible (Black)
KCUAA3bk2 – USB3 female to female coupler, cross-wired (Black)
KCUAA311wh – USB3 female to female coupler, wired 1:1 (White)
KCHDbk – HDMI female to female coupler (Black)
KCK66 – RJ12 6P6C female to female coupler (Black)
KOCMM – Fibre female to female coupler SC to SC, multi mode simplex (Black , White)
KOCSM – Fibre female to female coupler SC to SC, single mode simplex (Black , White)
KOLMMDX – Fibre female to female coupler LC to LC, multi mode duplex (Black , White)
KOLSMDX – Fibre female to female coupler LC to LC, single mode duplex (Black , White)
KOTSM – Fibre female to female coupler ST to ST, single mode simplex, yellow dustcover (Black , White)
KOTMM – Fibre female to female coupler ST to ST, multi mode simplex, black dustcover (Black , White)
SKmc* – Category 6 IDC socket, LSA-Plus and 110 type termination, unshielded (Black , White)
FACK2* – Category 5e female to female coupler, unshielded (Black , White)
SACK2* – Category 6 female to female coupler, unshielded (Black , White)
FACK2S – Category 5e female to female coupler, shielded (Grey)
SACK3S – Category 6 female to female coupler, shielded (Grey)
SGKSsu+ – Category 6A tool-less socket, shielded (Grey)
SGACK2S – Category 6A female to female coupler, shielded (Cat 6 coupler, shielded also available) (Grey)
SACK90* – Cat 6 female to female coupler, w/rear outlet 90° to front outlet, shielded or unshielded (Black,Grey, White)
SEKei – Category 8 tool-less socket, shielded (Grey)
KBNC50* – BNC 50 ohm female to female coupler (Black , White)
KBNC75* – BNC true 75 ohm female to female coupler(capable of data rates up to 3 Gb/s or higher) (Black , White)
KSP* – Speaker module in black with elastic identifier (coloured, red or black)
SKF*/SKFS – Category 6 tool-less IDC socket (Category 5e also available)
KSH66 – RJ12 6p6c socket (Black)
KCF* – F connector, female to female coupler in black. (Black, White)
KGB-1* – UK telephone socket – PSTN Master (Slave/Secondary version also available) (Black , White)
KPK* – Clip-in blank (Black , White)
KRCA*wh/KRCA*bk – RCA coupler – available with black/white/yellow/red insert (Black , White)
KC3.5* – 3.5mm coupler (Black , White)
SLJ* – LOKJAC Category 6 tool-less locking keystone (Black , White)
Note : * Shielded = S , Black = bk , White = wh , Blue = bl , Orange = or , Red = rd , Green = gn , Yellow = yw
