Designed to be easily be mounted into panels of virtually any thickness. This coupler boasts high performance data throughput that meets Category 6 data transfer rates.

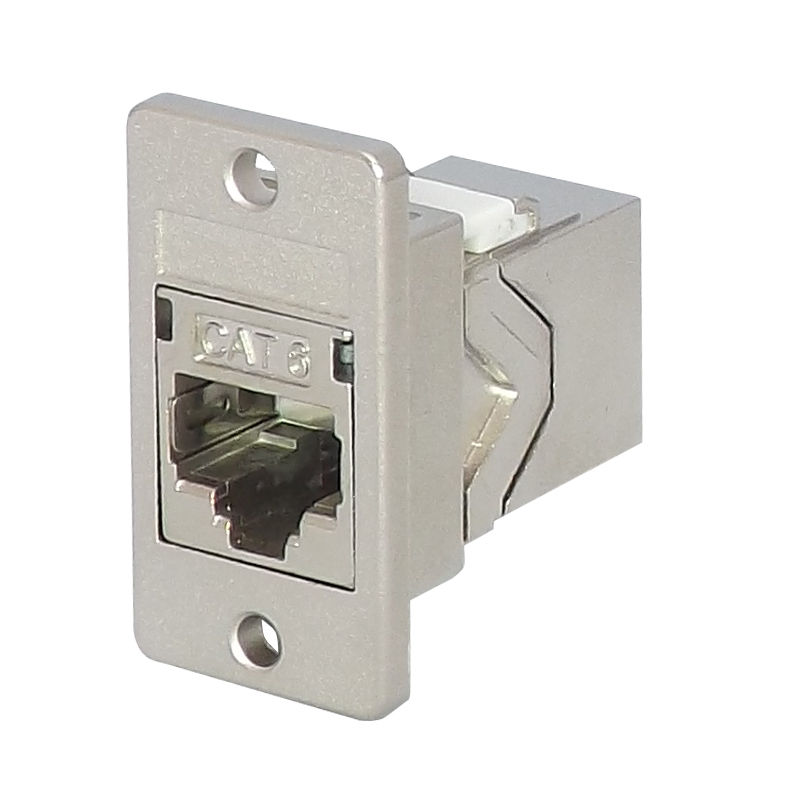

Category 6 Shielded Panel Mount Coupler
Designed to be easily be mounted into panels of virtually any thickness. This coupler boasts high performance data throughput that meets Category 6 data transfer rates.
- RJ45 complies with FCC68
- Operating temperature: ~40°C ~ +60°C
- Jack insertion life > 750 mating cycles
- High performance data throughput, meets Category 6 data transfer rate.
- Easily mounted into panels of virtually any thickness.
- Die cast adaptor is robust and ensures easy mounting and reliable earthing.
- Net weight: 30g
- Dimensions (h x w x d):40 x 70 x 25 mm
- Colour: Silver
- Coupler:
Housing: Nickle plated zinc alloy
Contacts: 50µ”/ 1.27µm gold plating over nickel plated phosphor bronze
Earthing lug material: Stainless steel SUS304 - Panel Mount adaptor: Zinc
