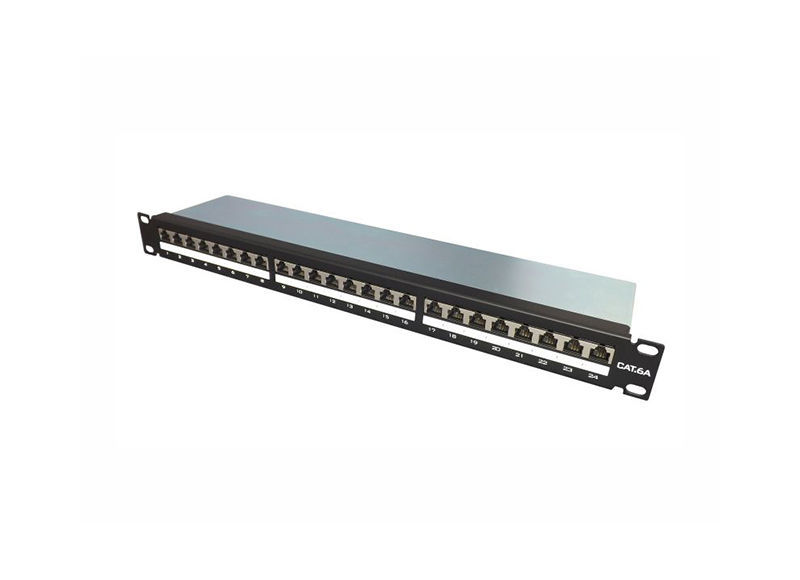

Category 6A 24 port patch panel shielded

TUK’s high density horizontal Category 6A FTP patch panel offers high performance at a competitive price. Connections are industry standard LSA+ type and are conveniently arranged horizontally to provide flexible cable management and space saving.

Product Code(s): SGF24 Category: Structured Cabling

Specification PDF

Distributor(s)

– Performs to Category 6A standard (permanent link level)
– Robust and high quality metal construction
– 19 inch rack mountable
– PCB construction allows more rapid termination by comparison with keystone-based panels
– Integral horizontal LSA+ type IDC’s for ease of termination, offset for greater signal separation
– Supplied with cable ties and cage nut set
– Fully shielded for FTP and STP installations
– Printed with numbered ports and labeling facility
– Competitive alternative to standard keystone based solutions”

– Electrical specifications
– Insulation resistance: ≥ 500Mμ
– Dielectric withstand voltage: 1000 VDC
– Contact resistance: ≤ 20mμ
– Current rating: 1.5A at 68°F
– Mechanical specifications
– Plug insertion life: ≥ 750 times plug in
– Contact force: 99.2g (3.5oz) FCC plug
– Plug retention force: 30lb (133n/13.3kg)
– IDC insertion force: 4.5kg minimum
– IDC retention force: 0.5kg minimum
– Temperature test: -40 to 150°F”
– Dimension: 482.6 x 44.45 x 111.4 mm (L x H x D)

– RJ45 contacts: 50μ”/1.27μm gold plated phosphor bronze
– Metal frame: Galvanized cold rolled steel (SGCC)
