Structured Cabling

Category 6A ‘6C’ and ‘Euro’ Outlet

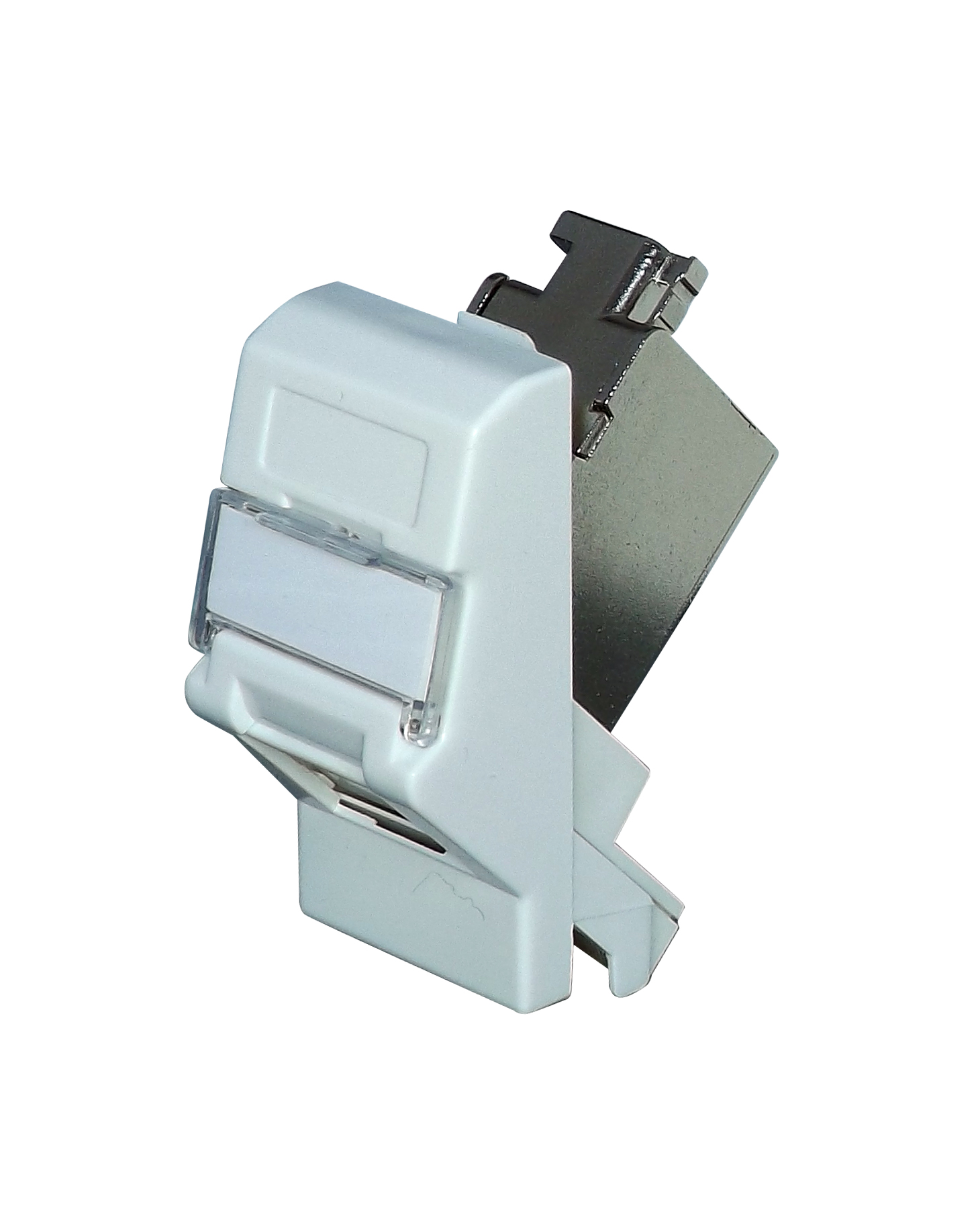

Category 6A ‘6C’ and ‘Euro’ Outlet

This Category 6A outlet is designed for use with “6C” 25 x 38 and industry standard “Euro” faceplates with 25 x 50 mm openings.

Product Code(s): SGKSsu-45wh, SGKSsu6-45bk Category:
Specification PDF

Distributor(s)

This Category 6A outlet is designed for use with “6C” 25 x 38 and industry standard “Euro” faceplates with 25 x 50 mm openings.

– High performance compliant with TIA/EIA 568-B.2-10 at component level
– Quick and easy tool-free lever termination
– Fully shielded die-cast socket body is robust as well as offering outstanding performance in eliminating alien cross-talk
– Compliant with IEC60512-99-001 – suitable for use with IEEE 802.3at (PoE+) applications
– Angled presentation minimizes issues with bend radius
-Supplied with a shuttered front aperture to reduce dust ingress Window and paper labelling feature

– Colour: White and silver (faceplate adaptor also available in black, to order)
– Dimensions: 54 x 40 x 25 mm
– Weight: 32 grams
– Supplied with cable tie and supplied as a kit

– Socket housing: Zinc alloy
– RJ45 contacts: 50µ”/1.27 µm gold plating over nickel over phosphor bronze
– Faceplate adaptor: ABS UL94-V0

Colour

White and silver

Weight (approx)

32g

Packaging

In individual poly bag with instructions, then bagged in 20’s
