Category 8 surface mount socket

These surface mount sockets enable Category 8 outlets to be quickly installed without the need for additional back box or trunking.

Product Code(s): SEKH1, SEKH2, SEKH4 Category: Structured Cabling

Specification PDF

These surface mount sockets enable Category 8 outlets to be quickly installed without the need for additional back box or trunking.

Transmission performance in compliance with the ANSI/TIA 568-C.2-1 specifications for Category 8 cabling systems (i. e. suitable for runs of 5 – 30 metres)

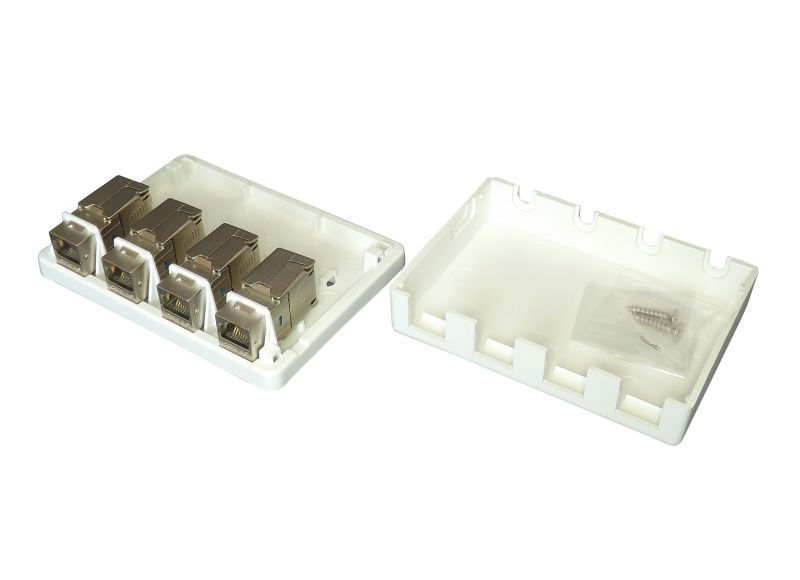

Utilises fully shielded Category 8 keystones with easy, rapid tool-less termination
Cable routing 180˚
Supplies with cable ties and adhesive pads for mounting
For more details about keystone housing range
For more details about Category 8 socket

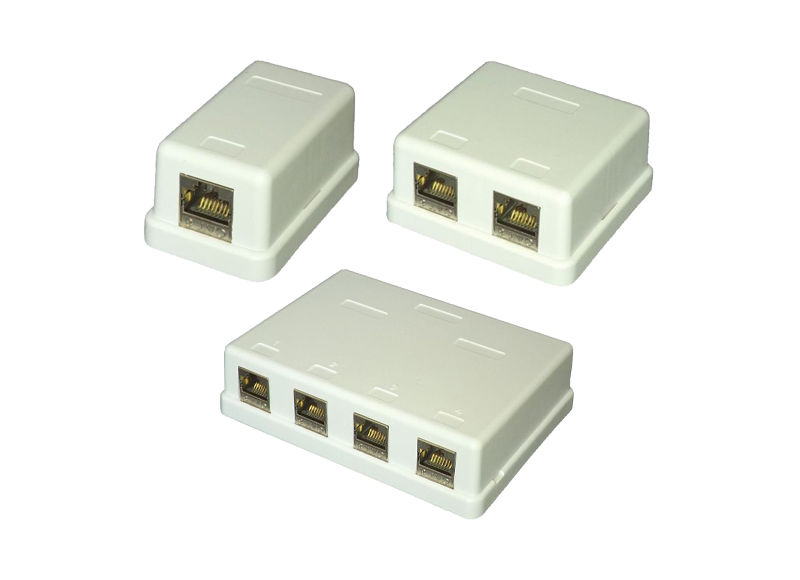

Product Code , Dimension(LxWxH) , Weight(Approx.) , Adhesive Pads
SEKH1 , 59 x 35.5 x 28.5 mm , 43g , 45 x 25 mm
SEKH2 , 59 x 61.5 x 28.5 mm , 50g , 45 x 40 mm
SEKH4 , 84 x 114 x 29.5 mm , 109g , 45 x 40 mm (2)

Housing: Fire resistant ABS UL 94V-0
Socket: Body: nickel-plated die-cast zinc
Contact: 50µ”/1.27µm gold plated phosphor bronze
IDC contacts: tin-plated phosphor bronze”
