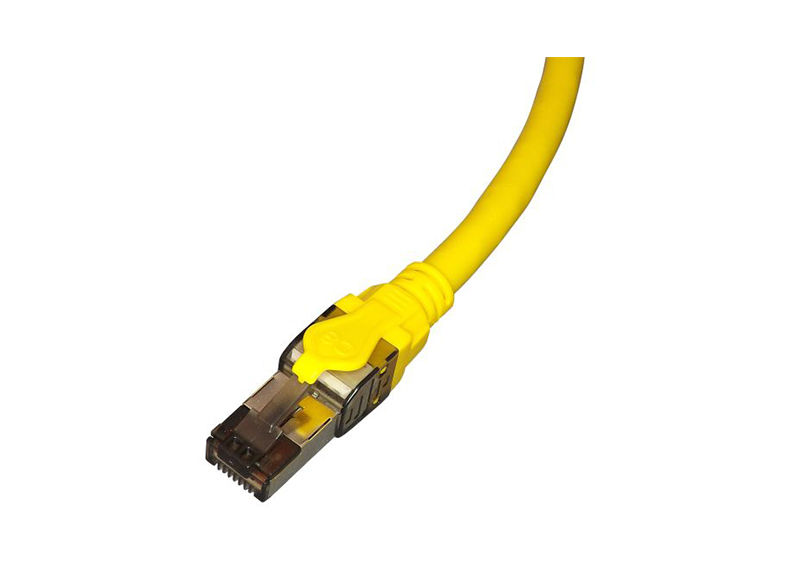

Category 8 Patch Leads, Shielded

Category 8 Patch Leads, Shielded

TUK’s Category 8 patch leads are designed, manufactured and tested in accordance with the ISO and TIA standards for Cat 8. Ideal for installation in areas that require high data transfer speeds exceeding 40Gbps. Factory manufacture ensures sensible pricing compared to equivalent product produced with field termination plugs.

Product Code(s): SEPZ1yw, SEPZ2yw, SEPZ3yw, SEPZ5yw Category:
Specification PDF

Distributor(s)

TUK’s Category 8 patch leads are designed, manufactured and tested in accordance with the ISO and TIA standards for Cat 8. Ideal for installation in areas that require high data transfer speeds exceeding 40Gbps. Factory manufacture ensures sensible pricing compared to equivalent product produced with field termination plugs.

– Transmission performance in compliance with the ANSI/TIA 568C.2-1 specifications for Category 8 cabling systems
– Consists of 4 twisted pairs of 24AWG screened stranded cable
– Terminated with high gold plated RJ45 shielded Category 8 plug
– Individually tested as part of a 30m channel – see graphic below

– Colour: Yellow
– Cable structure: Category 8 STP/FTP, 4 twisted pair
– Available in below lengths or to order:
1 metre SEPZ1yw
2 metre SEPZ2yw
3 metre SPEZ3yw
5 metre SEPZ5yw

– RJ45 plug
– Housing: PC, UL 94V-2, transparent black colour
– Contact material: Nickel plated phosphor bronze
– Contact finish: 50µ”/1.27µm gold plated on surface contact area
– Shield: copper with nickel plated
– PCB: UL 94V-0
– The structure complies with the IEC60603-7 requirement
– Strain relief PC, UL 94V-2, yellow colour (RAL1021) Cable
– Jacket: LSZH
– Conductor: 24 AWG/0.51mm stranded copper
– Shield: Aluminium foil on each pair, tinned copper clad with steel braid”

Colour

Yellow

Packaging

Individually polythene bagged and marked with length
