Panel Mount Connectors Range

Panel Mount Connectors Range

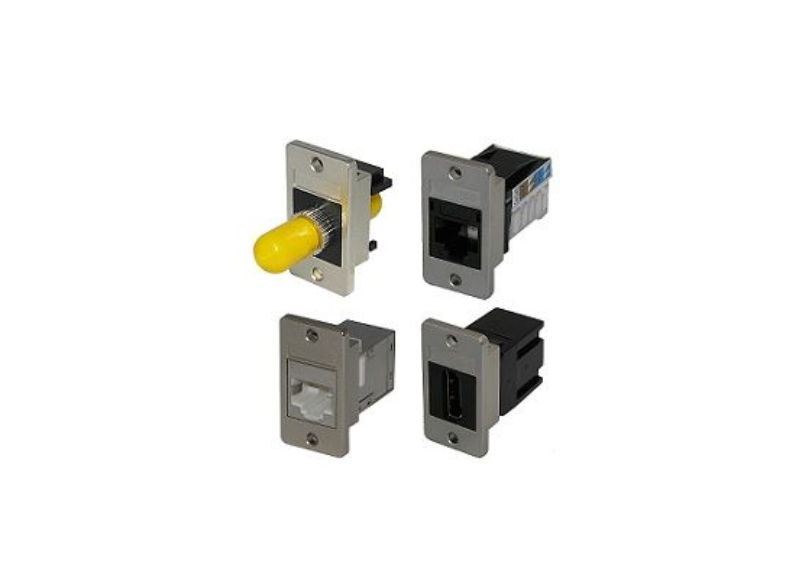

Our Panel Mount Connectors range offers an extensive variety of audio, video and data connectors which can easily be mounted into panels of virtually any thickness.

Product Code(s): FACK2Spm , FACK4bkpm , FKFbkpm , KBNC1275pm , KBNC50pm , KC3.5whpm , KCFbk , KCHD90pm , KCHDbkpm , KCK66pm , KCUAA290pm , KCUAA2bkpm , KCUAA311pm , KCUAA3bkpm , KCUABbkpm , KCUABBKPM#24, KCUABpm , KGB1pm , KGB3pm , KOCMMpm , KOCSMpm , KOLMMDXpm , KOTMMpm , KOTSMpm , KOTSMpm , KRCAwhwhpm , KSH66whpm , KSPrdpm , KUA2whpm , SACK3Spm , SACK4whpm , SEKjepm , SGACK2Spm , SGACK90pm , SGKSjepm , SGKSLJpm , SGKSsupm , SKFwhpm , SGKctpm , SKMcbkpm , SLJwhpm, KAPMA, KAPMA#20 Category:
Specification PDF

Distributor(s)

Our Panel Mount Connectors range offers an extensive variety of audio, video and data connectors which can easily be mounted into panels of virtually any thickness.

– Die cast adaptor is robust and ensures easy mounting (into standard cut-out) and reliable earthing
– Supplied with 2 pairs of screws
2 x round head nickel-plated steel self-tapping screws. T3.0x10
2 x round head nickel-plated steel machine screws. (4.40 x ¼”) M3x6

TUK’s Panel Mount Connectors Range offers a wide variety of audio, video and data connectors which can easily
be mounted into panels of virtually any thickness.
Die cast adaptor KApma is robust and ensures easy mounting (into standard cut-out) and reliable earthing. Can be
purchased separately in packs of 20 pcs. Specification drawing below.
Each connector is supplied as a kit. Kit includes coupler/connector, panel mount adaptor, pair of round head zincplated steel self-tapping screws and pair of round head zinc-plated steel M3 screws.
For USA style installations, users might prefer to use #4-40 UNC 2A machine screws, KAPMscr4. These are
available separately in zinc-plated steel in bags of 100. Specification drawing below.

– Weight: 12g approx. each
– Packs of 20: 245g approx
– Dimensions: 35.50 x 19.12 x 9.80 mm
– Colour: Silver
– Material: Nickel plated zinc alloy
– Kit includes coupler/connector, panel mount adaptor, pair of round head nickel-plated steel self-tapping screws and pair
of round head nickel-plated steel M3 screws
– For specifications of couplers and sockets, see separate web pages as follows:

Code Description
FACK2Spm Category 5e female to female coupler, shielded
FACK4bkpm Category 5e unshielded compact coupler
FKFbkpm Category 5e tool-less IDC socket, unshielded
KBNC1275pm BNC coupler Ultra HD 75 ohm 12Ghz
KBNC50pm BNC 50 ohm female to female coupler
KBNC75pm BNC true 75 ohm female to female coupler(capable of data rates up to 3 Gb/s or higher)
KC3.5whpm 3.5mm coupler
KCFbk F connector, female to female coupler
KCHD90pm 90˚ HDMI female to female coupler
KCHDbkpm HDMI female to female coupler
KCK66pm RJ12 6P6C female to female coupler
KCUAA290pm 90˚ USB2 A to A coupler
KCUAA2bkpm USB2.0 A female to A female coupler
KCUAA311pm USB3 female to female coupler, wired 1:1
KCUAA3bkpm USB3 female to female coupler, cross-wired
KCUABbkpm USB A female to B female adaptor, reversible
KCUABpm USB A female to B female adaptor, reversible
KGB1pm UK telephone socket – PSTN Master (Slave/Secondary version also available)
KGB3pm UK telephone secondary socket
KOCMMpm Fibre female to female coupler SC to SC, multi mode simplex
KOCSMpm Fibre female to female coupler SC to SC, single mode simplex
KOLMMDXpm Fibre female to female coupler LC to LC, multi mode duplex
KOTMMpm Fibre female to female coupler ST to ST, multi mode simplex, black dustcover
KOTSMpm Fibre female to female coupler ST to ST, single mode simplex, yellow dustcover
KOTSMpm Fibre female to female coupler ST to ST, single mode simplex, yellow dustcover
KRCAwhwhpm RCA coupler – available with black/white/yellow/red insert
KSH66whpm RJ12 6p6c socket
KSPrdpm Speaker module in black with red elastic identifier
KUA2whpm USB 2 A Screw Termination Socket
SACK3Spm Category 6 female to female coupler, shielded
SACK4whpm Category 6 unshielded compact coupler
SEKjepm  Category 8 socket
SGACK2Spm Category 6A female to female coupler, shielded (Cat 6 coupler, shielded also available)

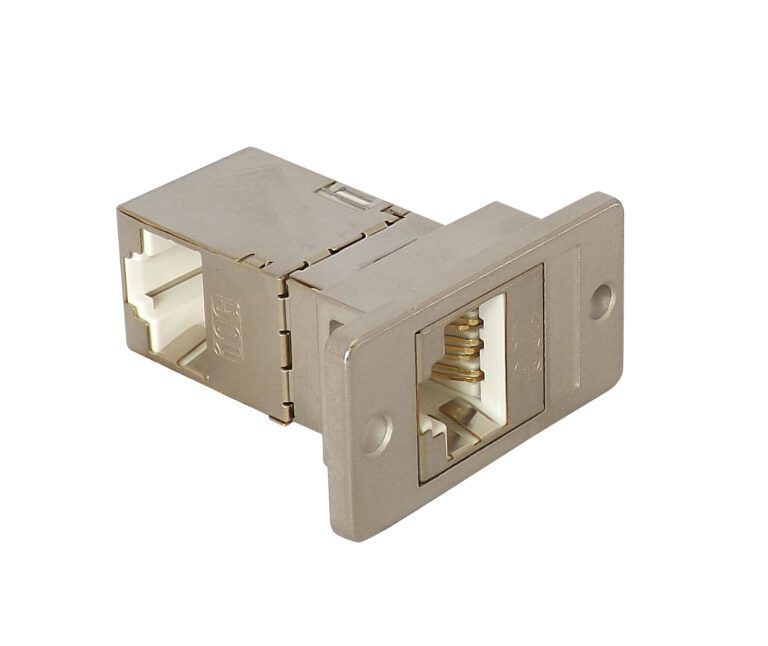

SGACK90pm Cat 6A female to female coupler, w/rear outlet 90° to front outlet, shielded (also available in UTP Cat 6 version)

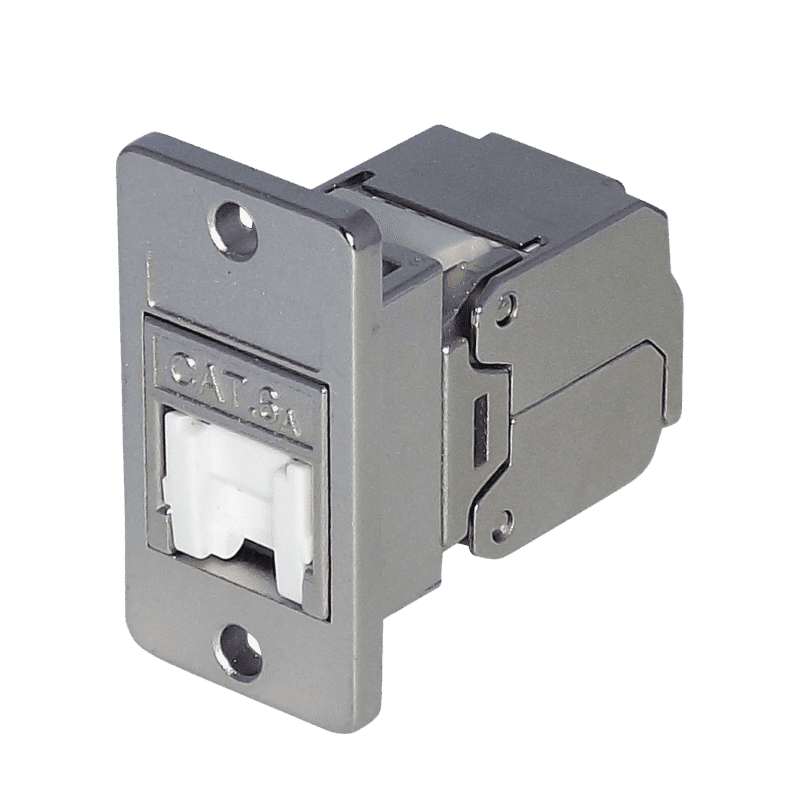

SGKSjepm  Category 6A Contractor grade Shielded Socket
SGKSLJpm LOKJAC Category 6A tool-less locking socket
SGKSsupm Category 6A tool-less component level socket
SKFwhpm Category 6 tool-less IDC socket, unshielded
SKMcbkpm Category 6 IDC socket, LSA-Plus and 110 type termination, unshielded

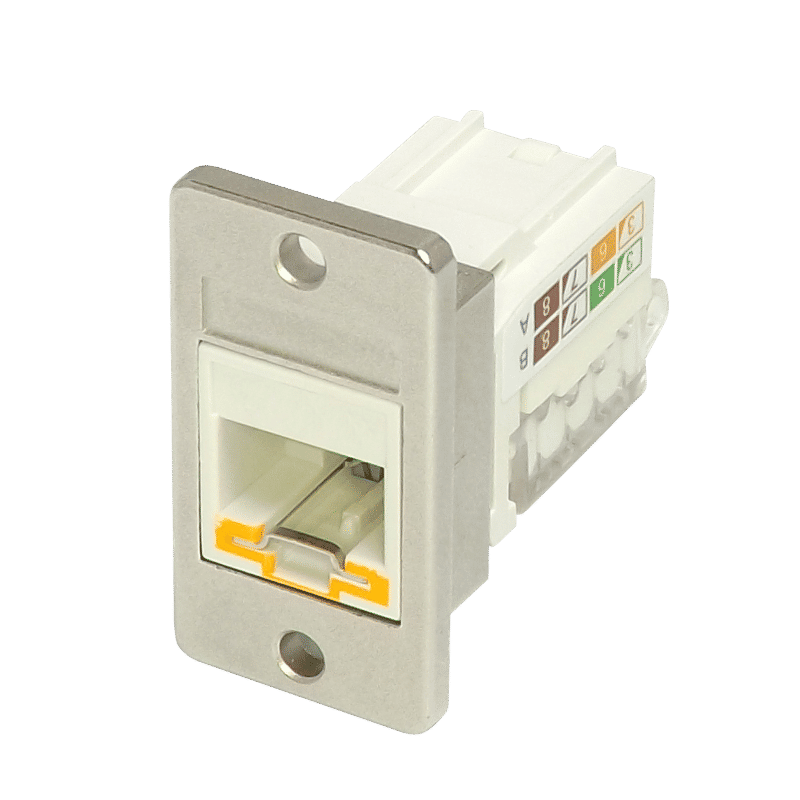

SLJwhpm LOKJAC Category 6 tool-less locking socket
