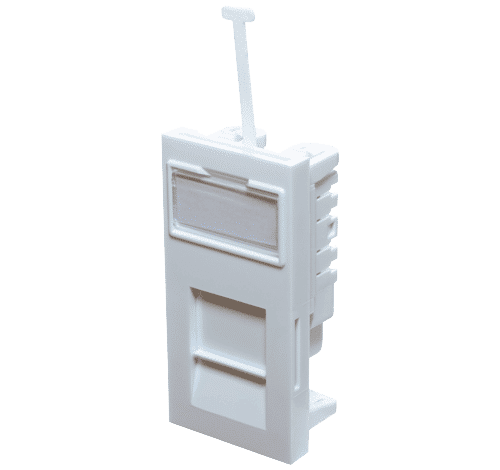

Low Profile Category 6 Euro Outlet

This affordable outlet which performs to Category 6 TIA/EIA-568-C.2-1 at permanent link level, can be quickly and easily terminated and fits into most standard faceplates.

Product Code(s): SJKjewh, SJKjewh#24 Categories: New Products, Structured Cabling

Specification PDF

This affordable outlet which performs to Category 6 TIA/EIA-568-C.2-1 at permanent link level, can be quickly and easily terminated and fits into most standard faceplates.

Performs to Category 6 at permanent link level
Low profile design, shuttered front aperture protects against dust

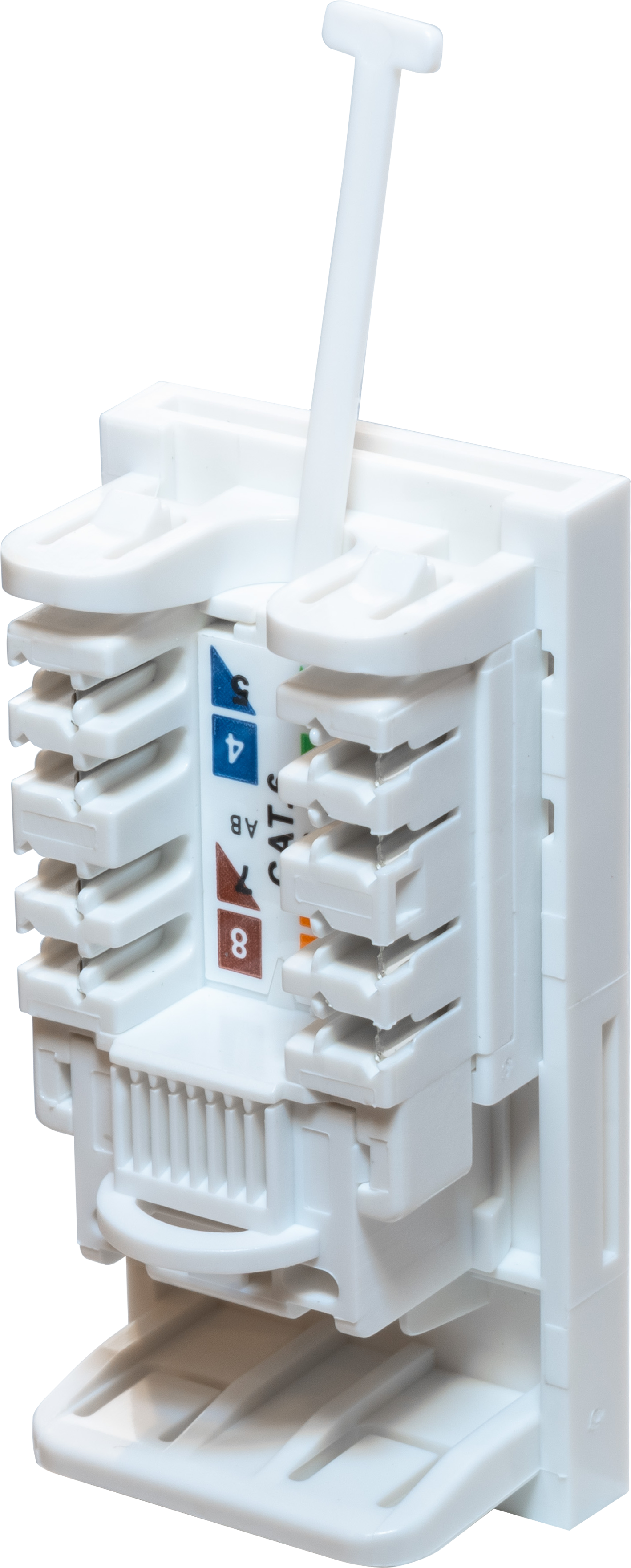

Fitted with industry standard Krone (LSA+) type IDC connections
Compatible with most ‘Euro-style’ 86 x 86 faceplates
‘Slip-in’ label facility for port identification

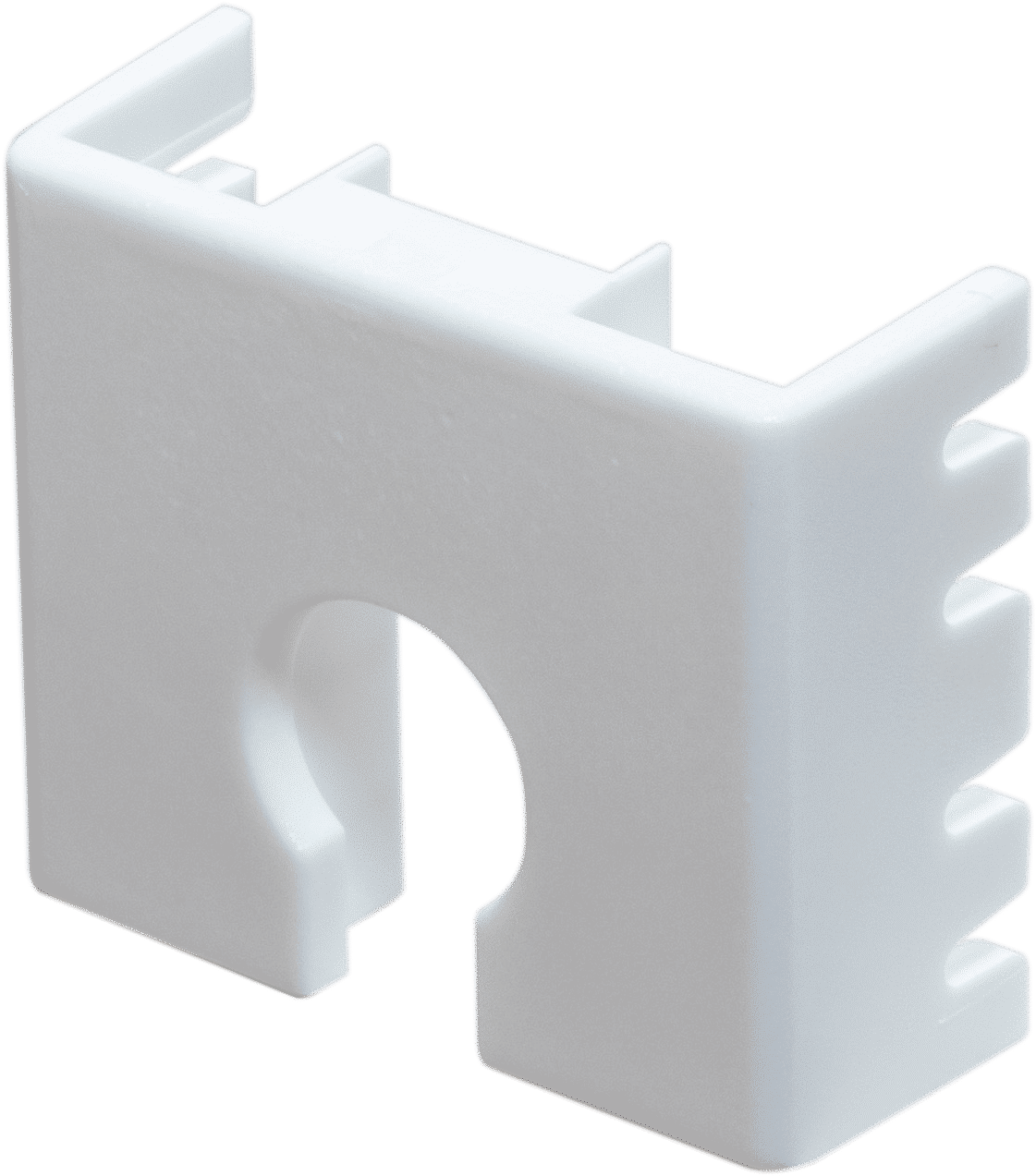

Integral cable tie point. Cable retention clip also supplied along with additional flexible cable tie facility.
Available in individual polythene bags or in “bulk packs” of 24 without individual poly bags

Weight:
SJKjewh: 12g approx.
SJKjewh#24: 288g approx.
Dimensions (as packed):
SJKjewh: 100 x 40 x 30mm
SJKjewh#24: 260 x 220 x 90mm
Colour: White (RAL 9003)
T568A and T568B wiring sticker
Insertion force: 20N max.
Retention strength: 7.7kg between jack and plug
Operating temperature: -10˚C to 60˚C
Suitable for 22-26 AWG stranded and solid wire with Krone (LSA+) type punch down tool.
