USB2 A Screw Termination Keystone Socket

USB2 A Screw Termination Keystone Socket

Suitable for field termination, repair and prototyping applications this ‘DIY’ socket enables an easy termination where a USB port is required. The ‘breakout’ board brings out all signal pins and the shield to screw-down terminal blocks for simple and reliable connection without the need for special tools.

Product Code(s): KUA2bk, KUA2wh Categories: ,
Specification PDF

Distributor(s)

Suitable for field termination, repair and prototyping applications this ‘DIY’ socket enables an easy termination where a USB port is required. The ‘breakout’ board brings out all signal pins and the shield to screw-down terminal blocks for simple and reliable connection without the need for special tools.

– USB2.0 A female connector to 4 x screw terminals and choice of 2 x earth points
– Easy-to-read marking simplifies correct termination
– Screw terminals accommodate wires 0.4-1.3mm (16-26 AWG) diameter
– Snap in keystone jack provides a clean and neat, fast and easy installation in a wide range of housings, outlets and patch panels
– Available as part of our Panel Mount and D UNIVERSAL ranges

– Rated to 500mA at 5V
– Suitable for transmission at speeds up to 60MB/sec
– Weight: 6g approx.
– Dimensions: 16.9 x 21.8 x 28.4mm

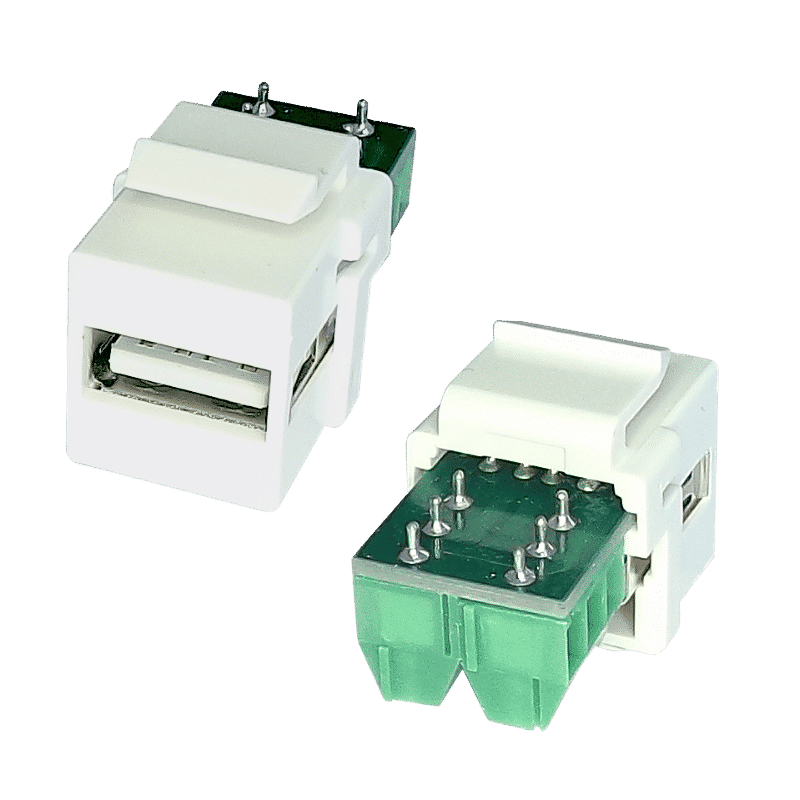

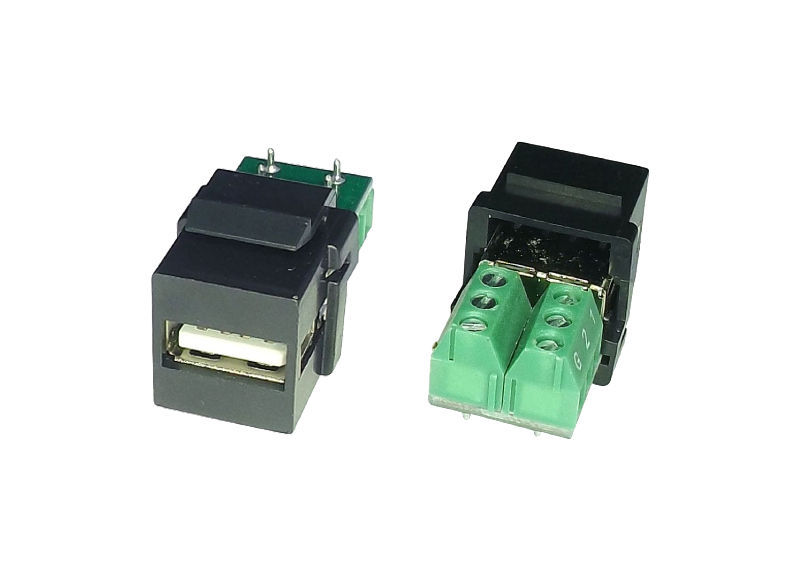

– Colour: available in black or white

– Housing: UL94V2 ABS
– USB socket: nickel-plated brass
– PCB: FR-4

Colour

Black and White

Weight (approx)

6g

Packaging

Individually bagged and then in 20’s
