This high performance fully shielded plug is suitable for Category 6A, Category 7 and Category 8 terminations of large core solid or stranded cable.

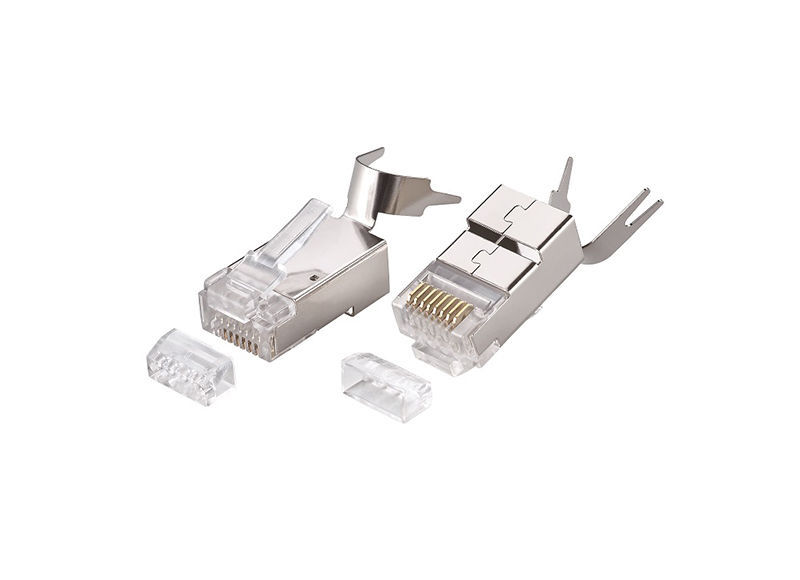

PESpc Category 6A/7/8 8p8c STP Plug
This high performance fully shielded plug is suitable for Category 6A, Category 7 and Category 8 terminations of large core solid or stranded cable.
Features:
- 2 part shielded plug
- Performs to Category 8 at channel level as well as Category 6A at patch cord level
- 2 prong contacts suitable for solid and stranded cable
- Suitable for cable O.D. up to 8mm and cores up to 1.6mm O.D. (not recommended for cores of less than 1.3mm O.D.)
- Backwards compatible for Category 6A and Category 7
- Compliant with IEC60512-99-001, FCC 68 Part F, ANSI/EIA/TIA-568, IEC-60603-7 – suitable for use as part of a Category 6A or Category 8 cabling installation in accordance with ISO/IEC 11801– and suitable for use with IEEE 802.3at (PoE+) applications
- Suitable for termination with TUK’s specialist single-action crimp tool for XL cable (T23PGSXL) https://tuk.co.uk/product/modular-crimp-tool-for-xl-cable or our ratchet crimp tool (TR2076) Ratchet Crimp Tool For Extra Large Shielded Cable – TUK Ltd
- For use with strain relief boot PS2**8 https://tuk.co.uk/product/strain-relief-over-boots/
• Weight including packaging: 56g (packed in 20s) – Weight of individual plug: 2g
• Dimensions:
Plug: 21 x 12 x 8mm – Plug with cable grip extended: 29 x 12 x 8mm
• Materials:
Housing: Polycarbonate UL-94V0
Shell: Nickel-plated Brass
Contacts: 50μ”/1.27μm gold plated
• Capable of handling over 240V AC or DC
• Contact resistance is 20mOhms maximum
• Insulation resistance is 500MOhms minimum
• Each contact can carry 0.6A (POE+ compliant)
Packaging: Supplied in bags of 20 then in bags of 100
| Colour | Silver |
|---|---|
| Operating temparature | ‐20˚C ~+60˚C |
| Contact Resistance | 20 milliΩ max |
| Insulation Resistance | 500 MO (min.) |
