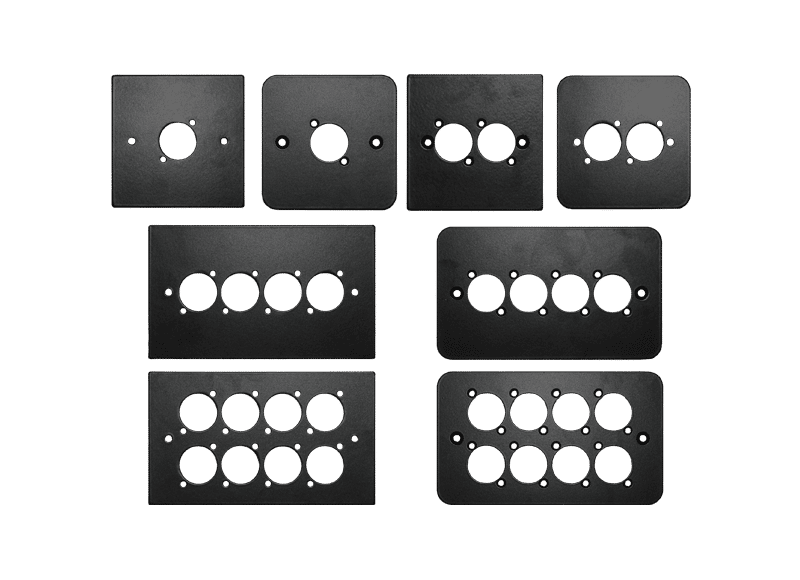

XLR Faceplates

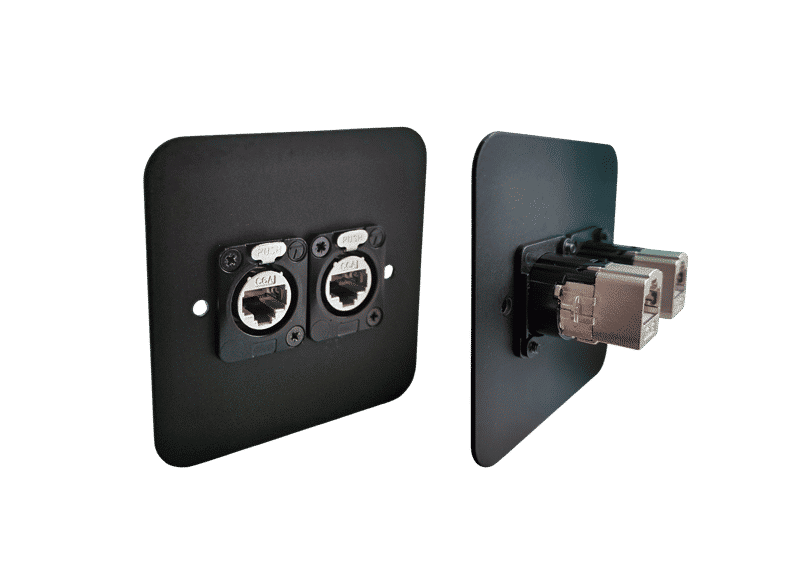

These XLR wall plates are compatible with standard single and double gang electrical back boxes provide an ideal solution for mounting XLR type and D UNIVERSAL 24mmØ chassis connectors. This makes them a versatile choice for various setups in industrial, theatre, broadcast and school environments. Come complete with fixing screws for easy installation.

Product Code(s): KPHD11.5, KPJD21.5, KPLD41.5, KPD81.5, KPHD110, KPJD210, KPLD410, KPD81O Categories: New Products, Structured Cabling

Specification PDF

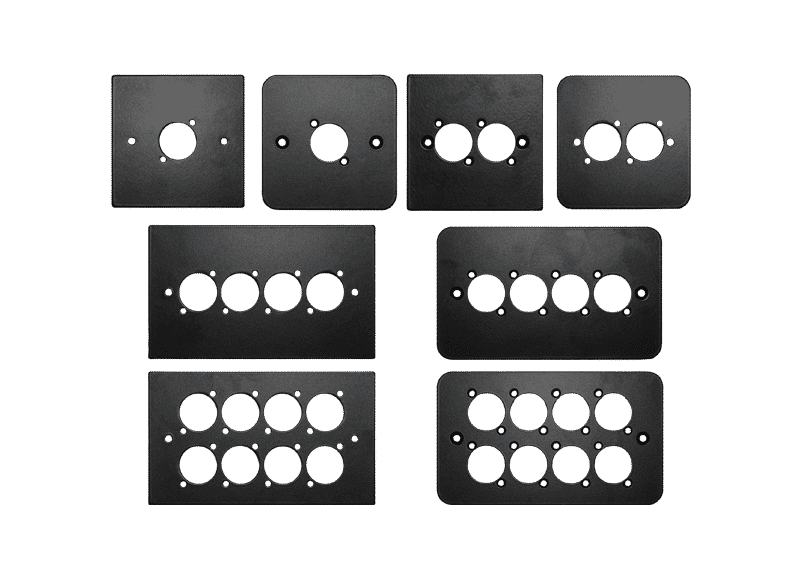

• Available in 1,2,4 and 8 port configurations
• Suitable for most D UNIVERSAL and XLR type connectors
• Supplied with M3.5 black fixing screws
• K**10: Rounded corners for metal clad electrical/industrial backboxes K**1.5: Square corners for standard backboxes (1.5mm radius)
• Countersunk holes for a professional finish

• Colour: black
• Materials: Steel powder painted black

TUK CODE	DESCRIPTION	EAN	Weight*	Dimensions*

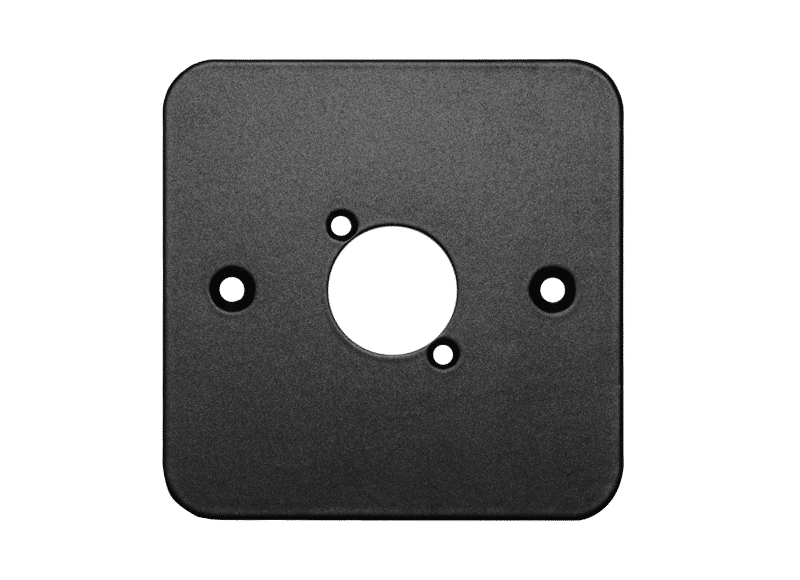

KPHD110	Single gang 1 port round corner XLR faceplate	5055386513137	88g	120x100x4mm

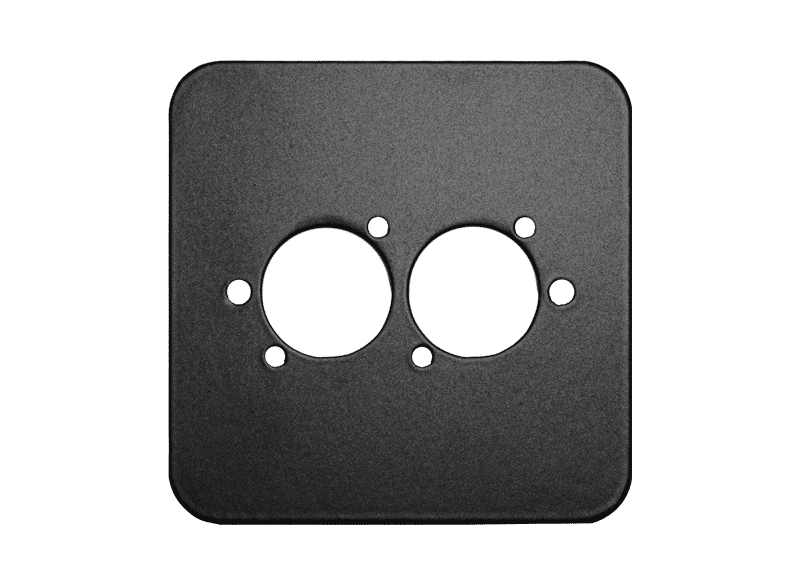

KPJD210	Single gang 2 port round corner XLR faceplate	5055386513151	82g	120x100x4mm

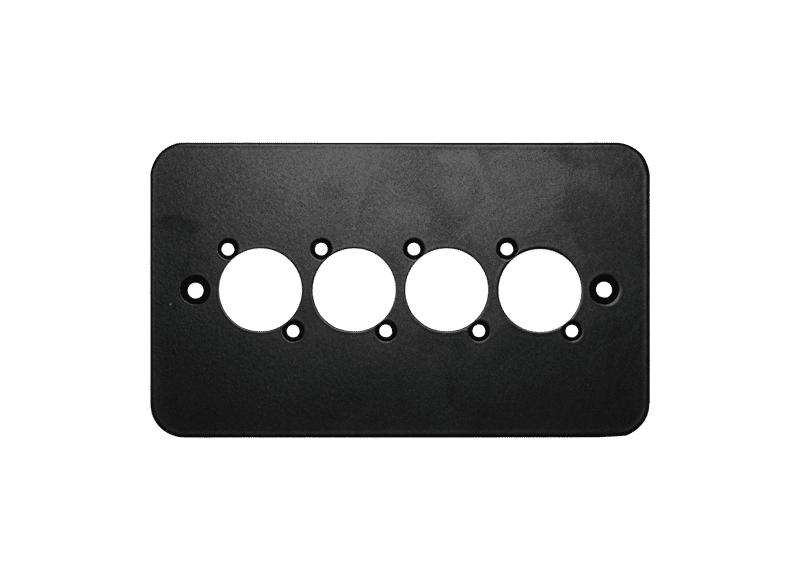

KPLD410	Double gang 4 port round corner XLR faceplate	5055386513175	130g	165x100x4mm

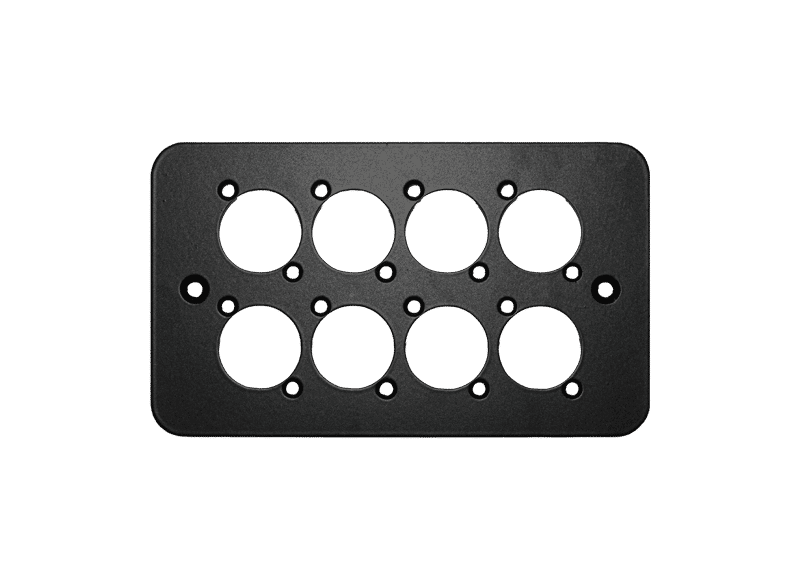

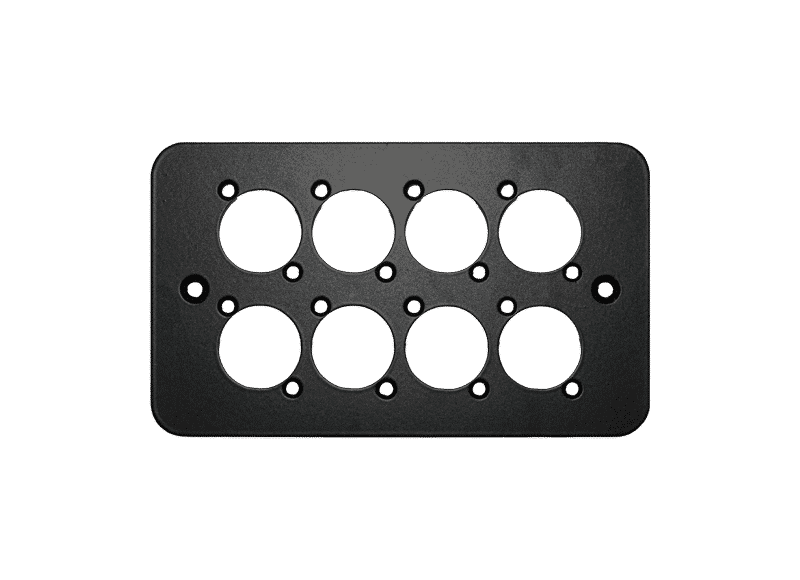

KPD81O	Double gang 8 port round corner XLR faceplate	5055386513199	105g	165x100x4mm
*In primary packaging

TUK CODE	DESCRIPTION	EAN	Weight*	Dimensions*

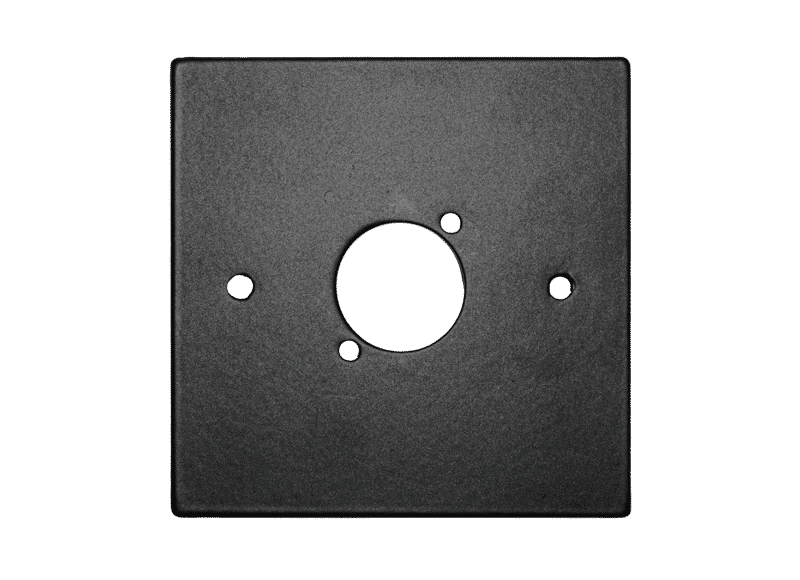

KPHD11.5	Single gang 1 port XLR faceplate	5055386513120	88.8g	120x100x4mm

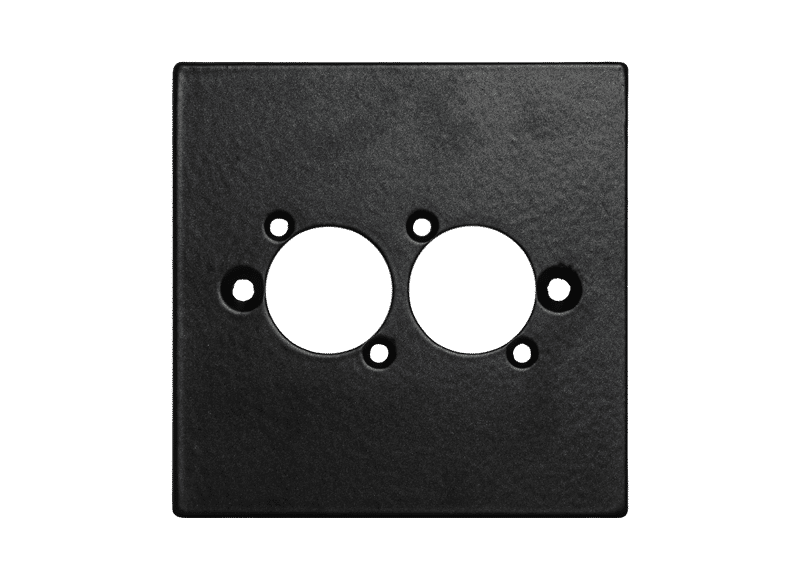

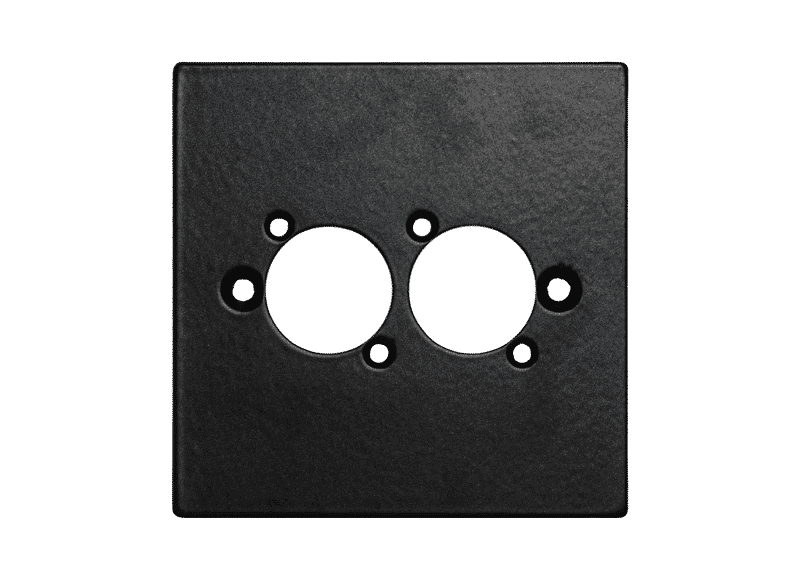

KPJD21.5	Single gang 2 port XLR faceplate	5055386513144	83g	120x100x4mm

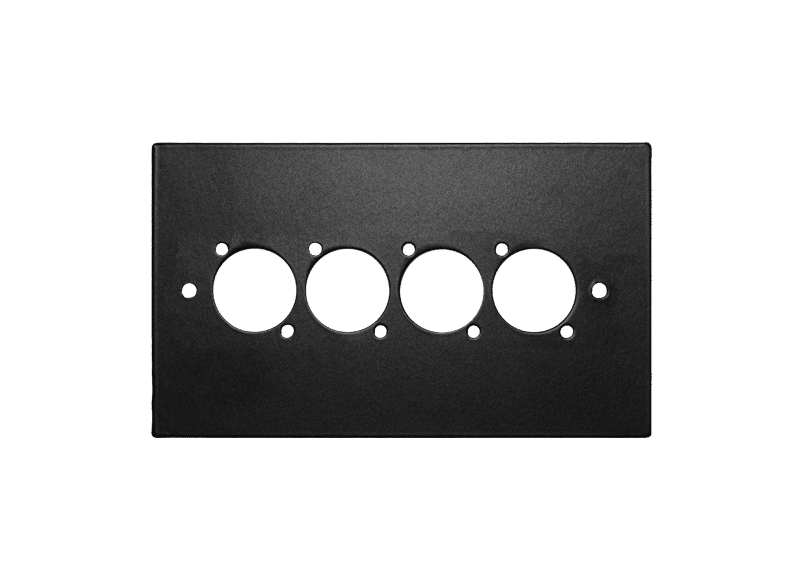

KPLD41.5	Double gang 4 port XLR faceplate	5055386513168	127g	165x100x4mm

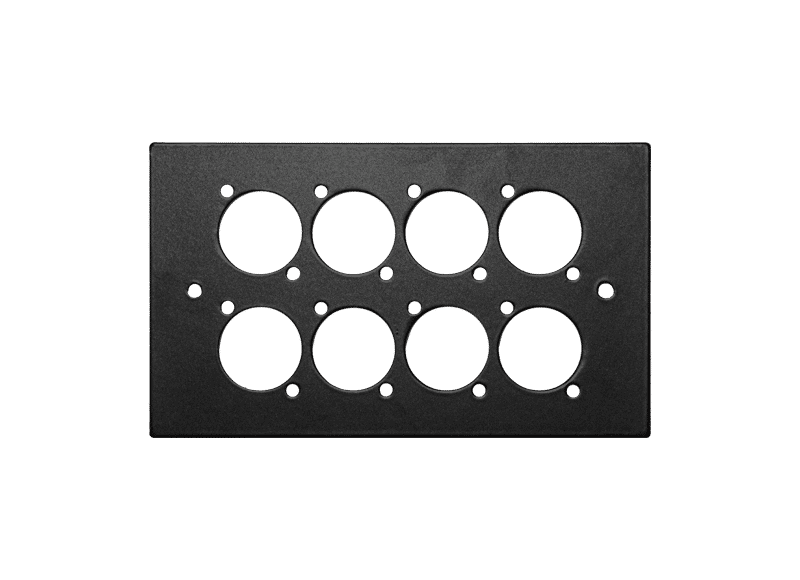

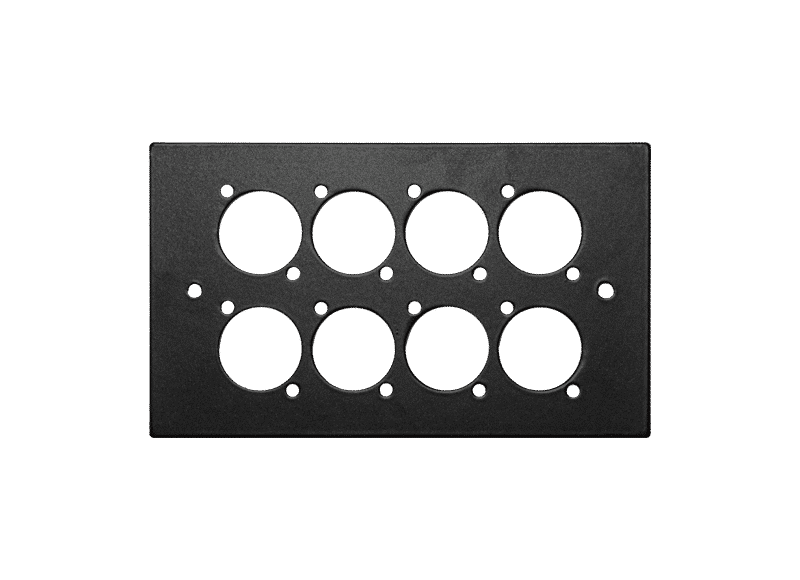

KPD81.5	Double gang 8 port XLR faceplate	5055386513182	106g	165x100x4mm
*In primary packaging
