These LOKJAC surface mount sockets enable Category 6 outlets to be quickly installed without the need for additional back box or trunking. The locking facility makes them particularly suitable for locations where vibration or interference is a concern.

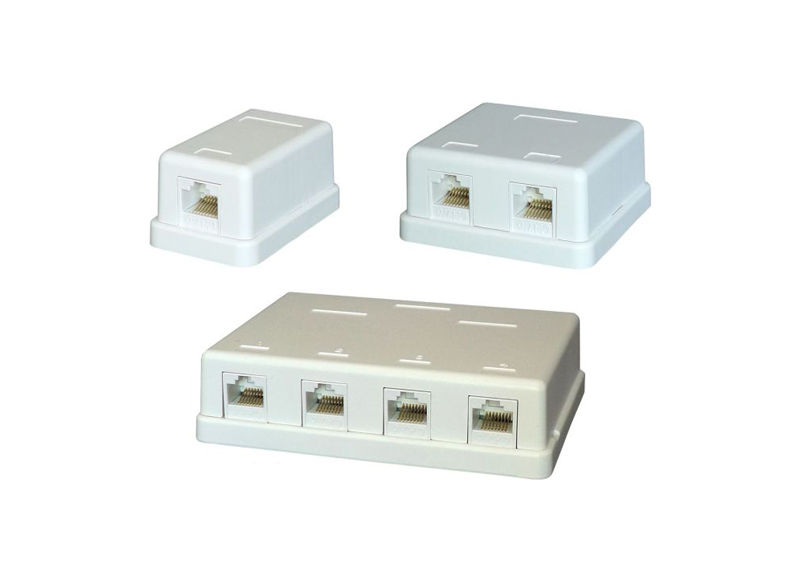

LOKJAC Category 6 Surface Mount Socket
These LOKJAC surface mount sockets enable Category 6 outlets to be quickly installed without the need for additional back box or trunking. The locking facility makes them particularly suitable for locations where vibration or interference is a concern.
Distributor(s)
– High performance data throughput, meets Category 6 data transfer rates at permanent link level
– Utilises LOKJAC Category 6 locking keystone for secure retention of cables
– High speed tool-less termination
– Cable routing 180˚
– Supplied with cable ties + adhesive pads for mounting
– Requires key “TLJ” – supplied separately
– N.B. Cannot be used without LOKJAC key (TLJ)
Product Code , Dimensions(LxWxH) , Weight(Approximately) ,Adhesive-pads
SKH1LJ , 59×35.5×28.5mm , 24g , 45 x 25 mm
SKH2LJ , 59.0×61.5×28.5mm , 40g , 45 x 40 mm
SKH4LJ , 84.0×114.0x29.5mm , 112g , 45 x 40 mm (2)
– Housing: Fireproof ABS UL 94V-0
– Socket Body: ABS UL 94V-0
– Contact: 50µ”/1.27µm gold plating
– Lock bar: Cold rolled steel (SPCC)”
Colour | White |
---|
