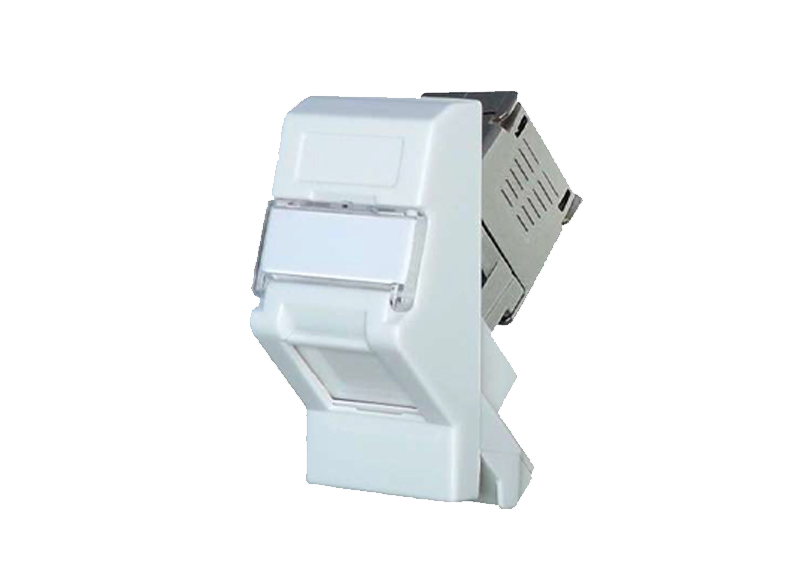

Category 8 ‘6C’ and ‘Euro’ Outlet

These Category 8 outlets are perfect for use with “6C” 25 x 38 and “Euro” 25 x 50 faceplates and POD/GOP boxes.

– Transmission performance in compliance with the ANSI/TIA 568-C.2-1 specifications for Category 8 cabling systems (i.e. suitable for runs of 5 – 30 metres)
– Provides quick and easy tool-less lever “butterfly style” termination
– Compliant with IEC60512-99-001 – suitable for use with IEEE 802.3at (PoE+) applications
– Angled presentation minimizes issues with bend radius
– Supplied with a shuttered front aperture to reduce dust ingress
– Suitable for 0.51 – 0.65 mm/ 22 – 24 AWG stranded and solid wire
– Window and paper labelling facility

– Colour: White and silver (faceplate adaptor also available in black, to order)
– Dimensions: 53 x 40 x 25 mm
– Weight: 36 grams
– Supplied with cable tie and supplied as a kit

– Socket housing: nickel-plated die-cast zinc
– RJ45 contacts: 50µ”/1.27 µm gold-plated phosphor bronze
– IDC contacts: tin-plated phosphor bronze
– Tape: copper foil
– Faceplate adaptor: ABS UL94-V0
