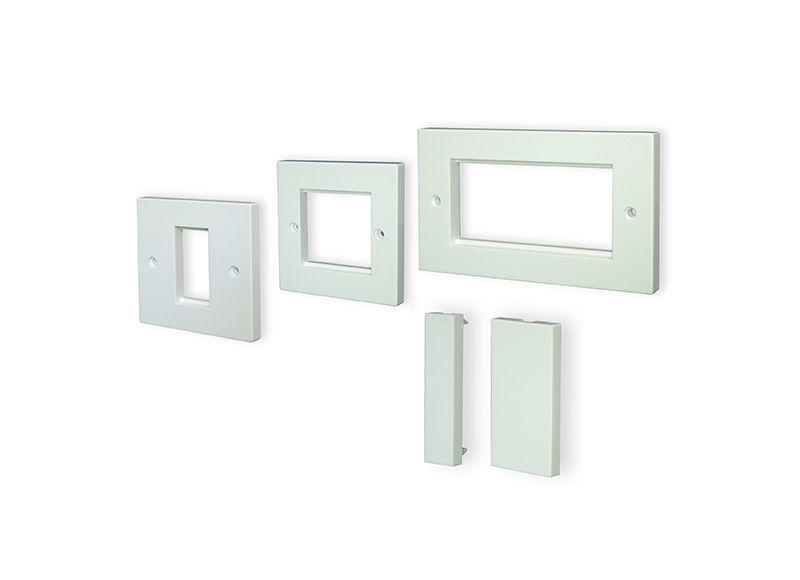

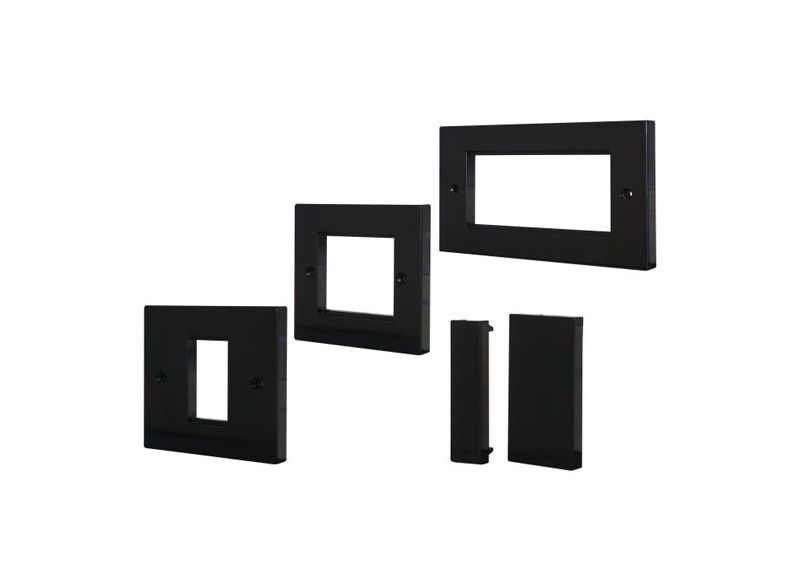

‘Euro Style’ Faceplates

The TUK ‘Euro Style’ 25×50 range of faceplates are manufactured in flame retardant, UV stable ABS in high gloss finish. Their standardised dimensions make them compatible with the vast majority of voice and data modules used on the UK market and they are complemented by our range of adaptors for keystones. The faceplates are supplied with fixing screws for installation.

Product Code(s): KPH1bk, KPJ2bk, KPL4bk, KPR0.5bk, KPR1bk, KPH1wh, KPJ2wh, KPL4wh, KPR0.5wh, KPR1wh Category: Structured Cabling

Specification PDF

Distributor(s)

– Flame retardant
– UV stable

– Colour: Black in high gloss finish (bk) , White BT1p in high gloss finish (wh)

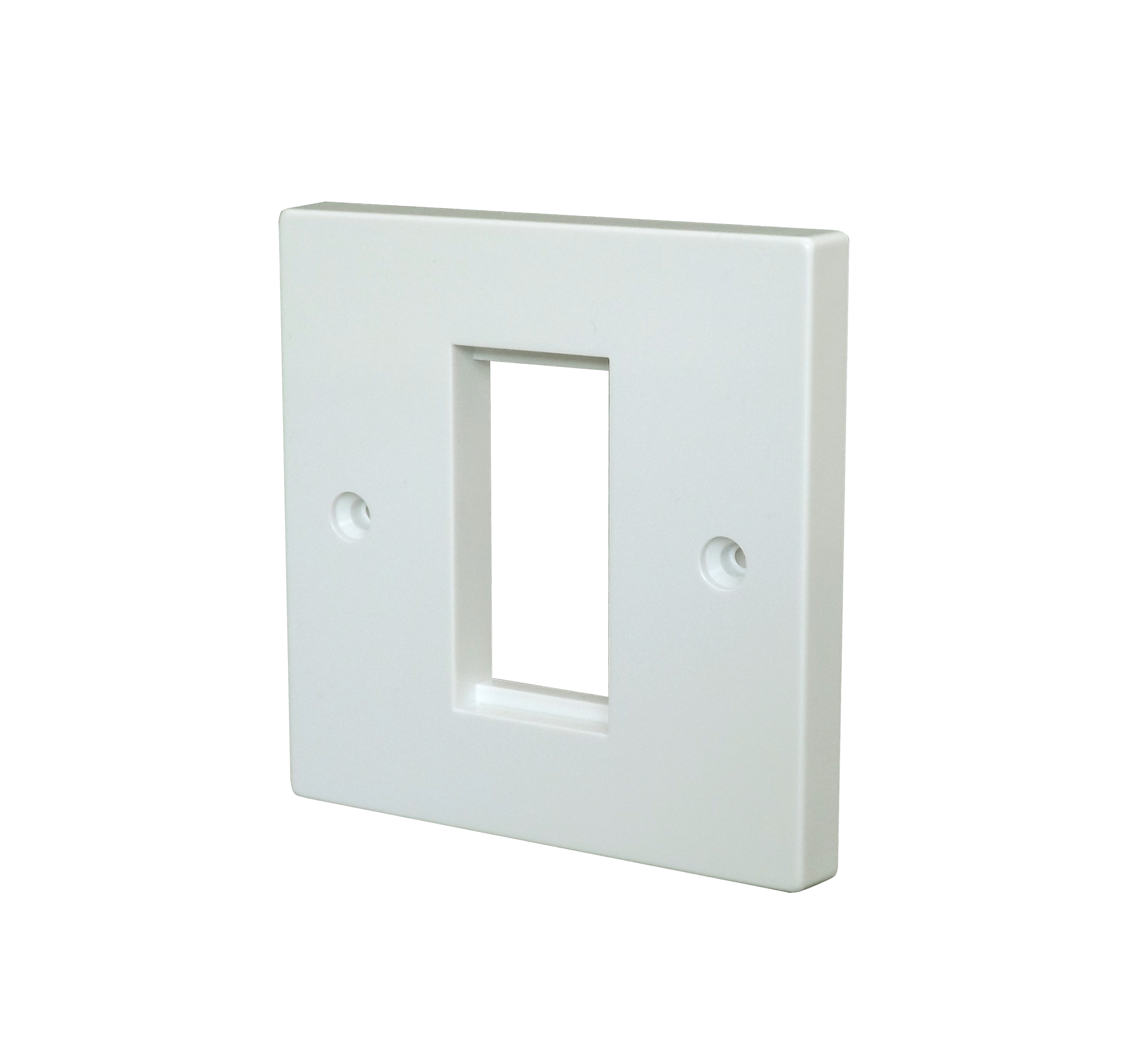

– Dimensions: Faceplate for one snap-in ‘Euro’ type module (KPH1bk or KPH1wh)
Weight: 26g approx.
Dimensions: 86 x 86 x 9.5 mm
Inner dimensions: 50 x 25 mm
Faceplate for two snap-in ‘Euro’ type module (KPJ2bk or KPJ2wh)
Weight: 24g approx.
Dimensions: 86 x 86 x 9.5 mm
Inner dimensions: 50 x 50

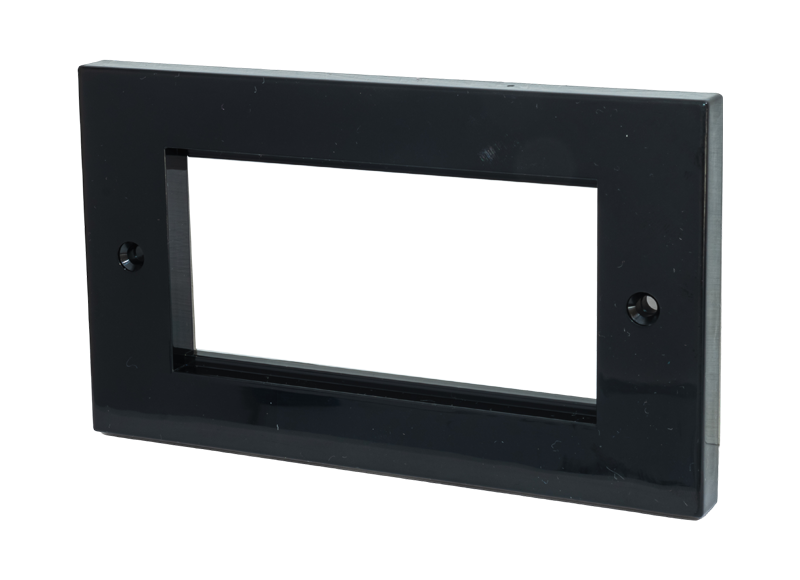

Faceplate for four snap-in ‘Euro’ type module (KPL4bk or KPL4wh)
Weight: 34g approx.
Dimensions: 146 x 86 x 9.5 mm
Inner dimensions: 100 x 50 mm

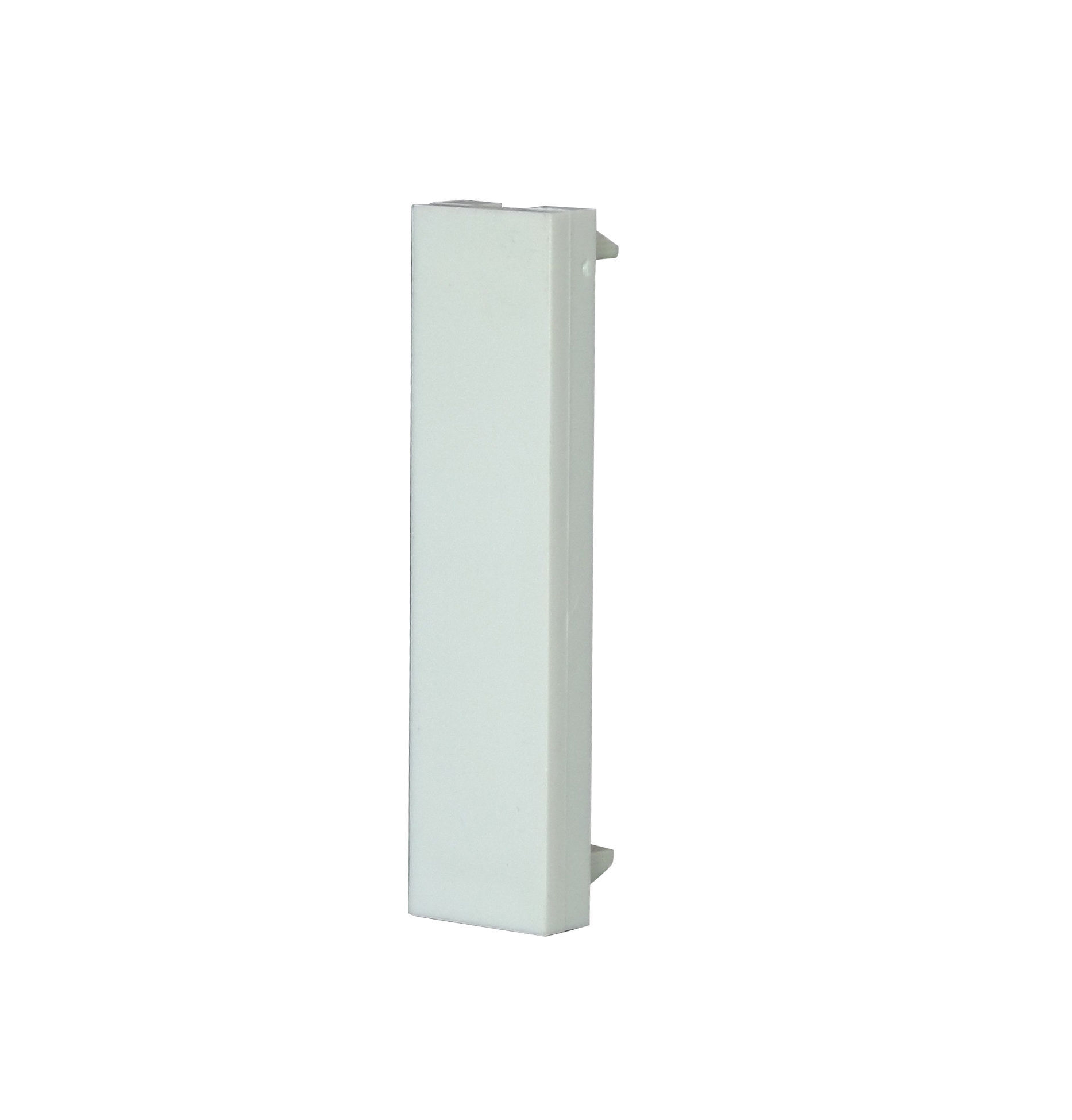

Half ‘Euro’ type blank (KPR0.5bk or KPR0.5wh)
Weight: 2g approx.
Dimensions: 12.5 x 50 x 13 mm

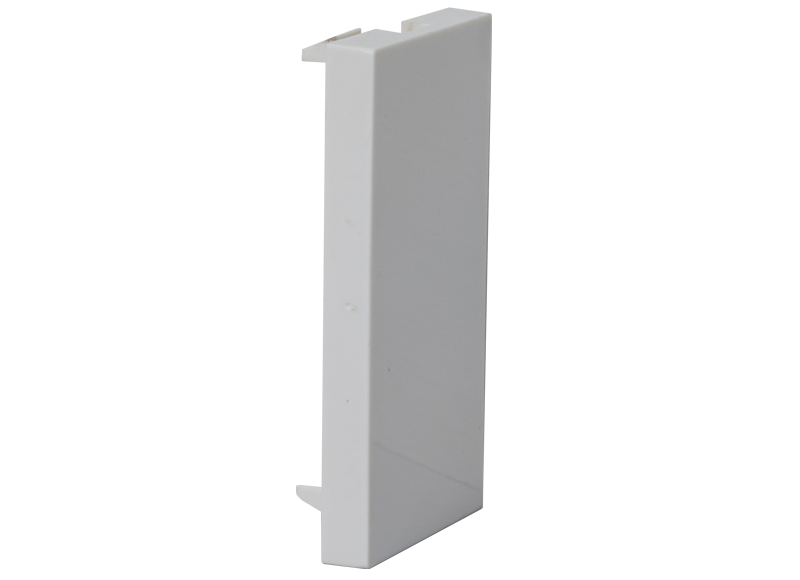

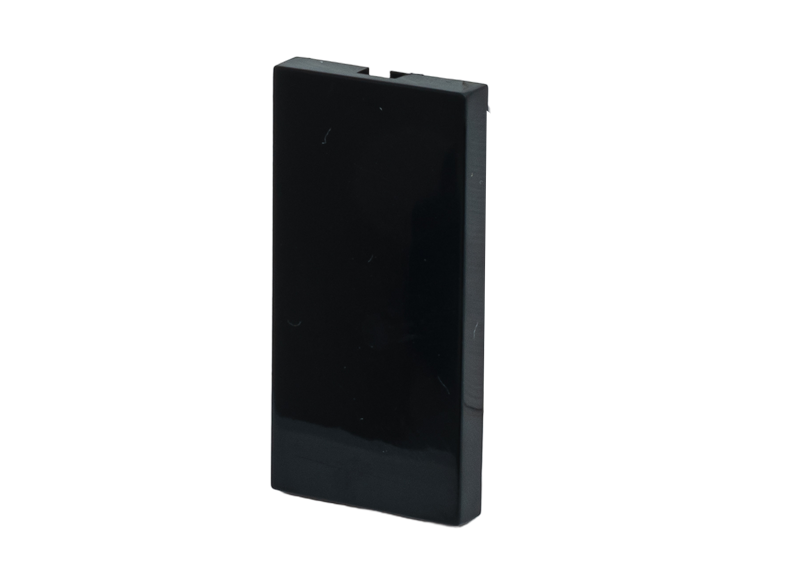

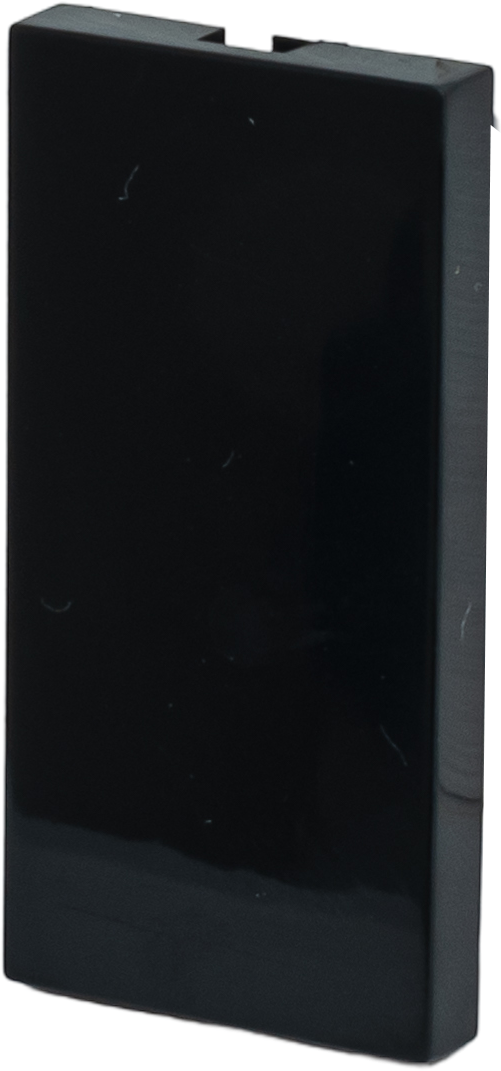

Single ‘Euro’ type blank (KPR1bk or KPR1wh)
Weight: 2g approx.
Dimensions: 25 x 50 x 13 mm
Dimensions are accurate to +/- 0.5%”
– Weight (approx): 26g
