Structured Cabling

Back Boxes

Back Boxes

Range of high quality flexible backing boxes for use by voice and data installers. Available in 21, 32, 37 and 45mm depths and in single and double gang variants.

Product Code(s): 3L21, 3L32, 3L32bk, 3L37, 3L45, 3L32G2, 3L32G2bk, 3L37G2, 3L45G2 Category:
Specification PDF

Distributor(s)

Range of high quality flexible backing boxes for use by voice and data installers. Available in 21, 32, 37 and 45mm depths and in single and double gang variants.

– Our range of plastic back boxes are cost effective solutions for a wide range of surface mount applications. Manufactured in tough ABS, they are much less brittle than traditional electrical back boxes and, so, less prone to damage during installation.
– Single gang variants are designed for use with 86mm x 86mm faceplates and are available in four depths (21mm, 32mm, 37mm and 45mm).
– Double gang variants accept 146mm x 86mm faceplates and are available in three depths (32mm, 37mm and 45mm).

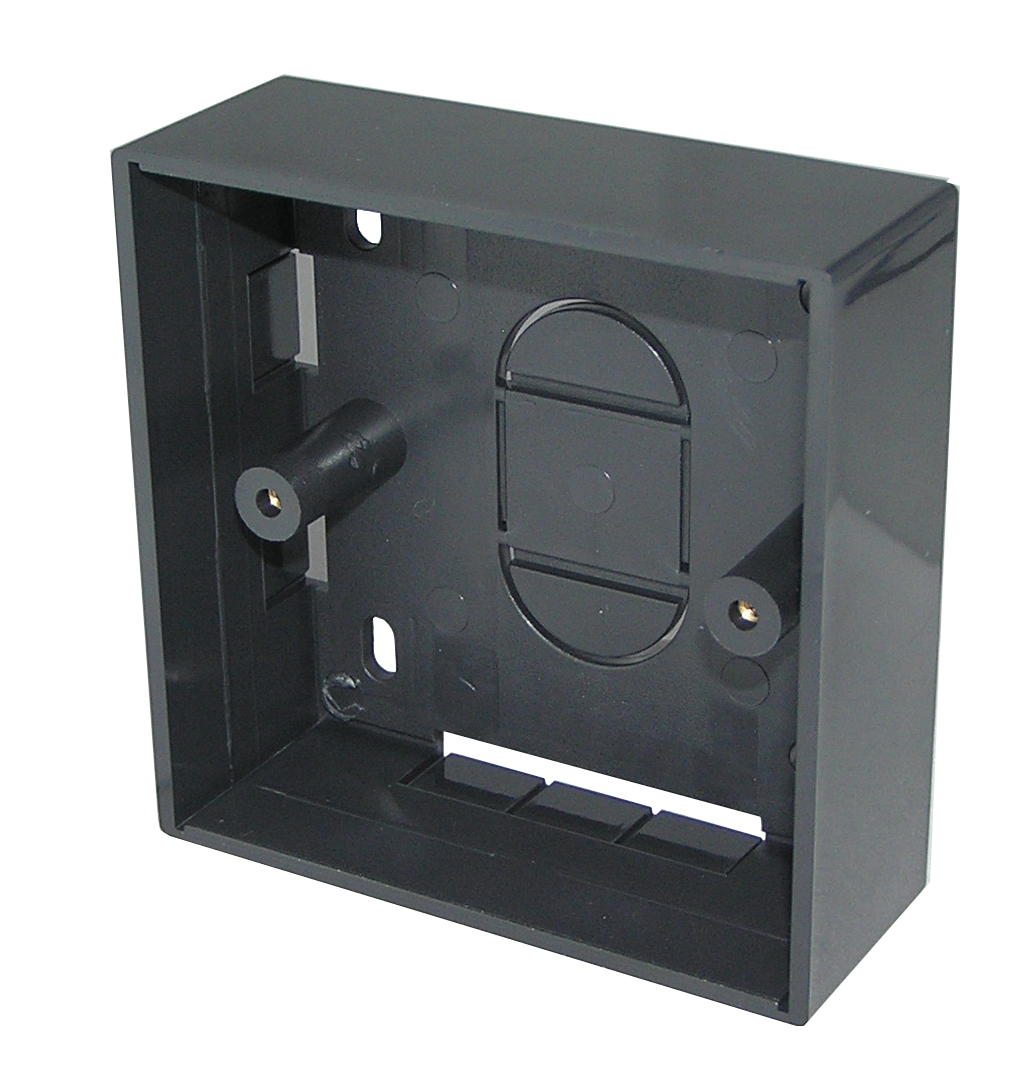

– The standard colour for all variants is bright white but 3L32bk and 3L32G2bk are also available in black.
– All variants feature a selection of mounting holes for ease of installation. – There are cable entry knockouts on all sides of the back box as well as the base for maximum flexibility.
