Structured Cabling

Faceplates Category 5e & Category 6

Faceplates Category 5e & Category 6

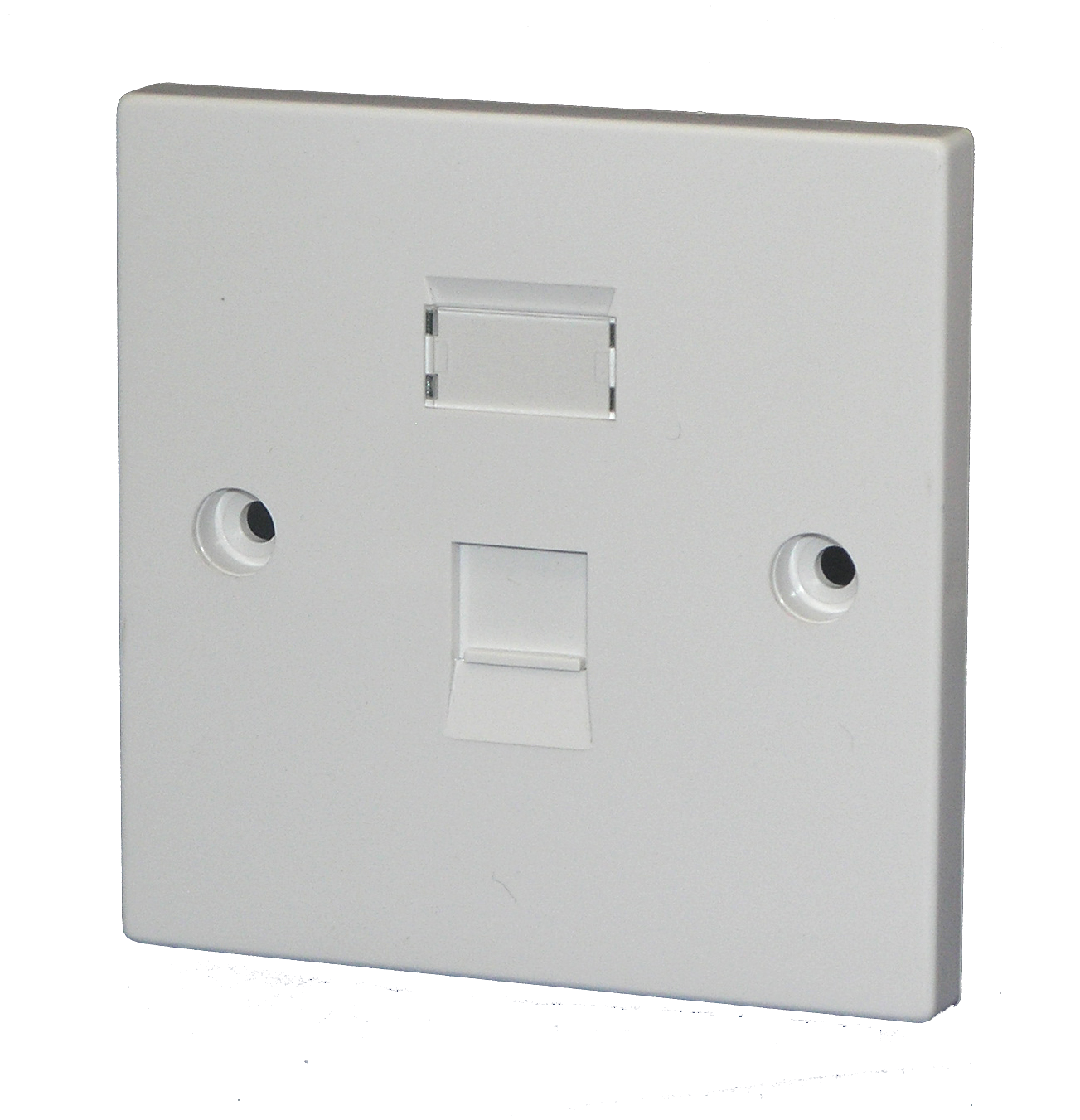

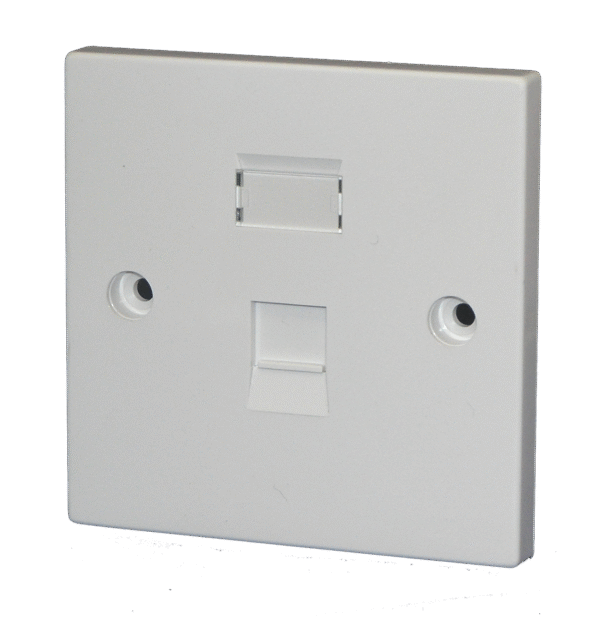

Cat5e/Cat 6 component level socket mounted in a single or double port faceplate and requiring a standard back box for installation. For additional security and improved appearance the sockets are supplied with screw caps to discourage unauthorised tampering. The shuttered front aperture protects against ingress of dust. A ‘slip-in’ labelling field is located above each outlet for port identification.

Product Code(s): FJL1, FJP2, SJL1, SJP2 Category:
Specification PDF

Distributor(s)

Cat5e/Cat 6 component level socket mounted in a single or double port faceplate and requiring a standard back box for installation. For additional security and improved appearance the sockets are supplied with screw caps to discourage unauthorised tampering. The shuttered front aperture protects against ingress of dust. A ‘slip-in’ labelling field is located above each outlet for port identification.

– Performs to Category 5e/Category 6 specifications
– Very compact design – both versions fit standard UK 86x86mm back box
– Industry standard LSA+ type terminations, colour coded to T568B
– Labelling facility
– Supplied with cable ties, screws, screw caps

– TUK codes: Cat5e single FJL1, double FJP2, Cat6 single SJL1, double SJP2
– Dimensions: 86x86x19mm
– Colour: Bright white
– Weight: Single outlet 42g, double outlet 51g

– faceplate – ABS, PCB – FR4

Colour

White
