These housings can be used with keystones to create a junction box, a wall socket or an enclosure. With their standardized dimensions, they are suitable for easy snap-in mounting of one, two, four, six, eight or twelve keystone modules and are perfect for multimedia installations.

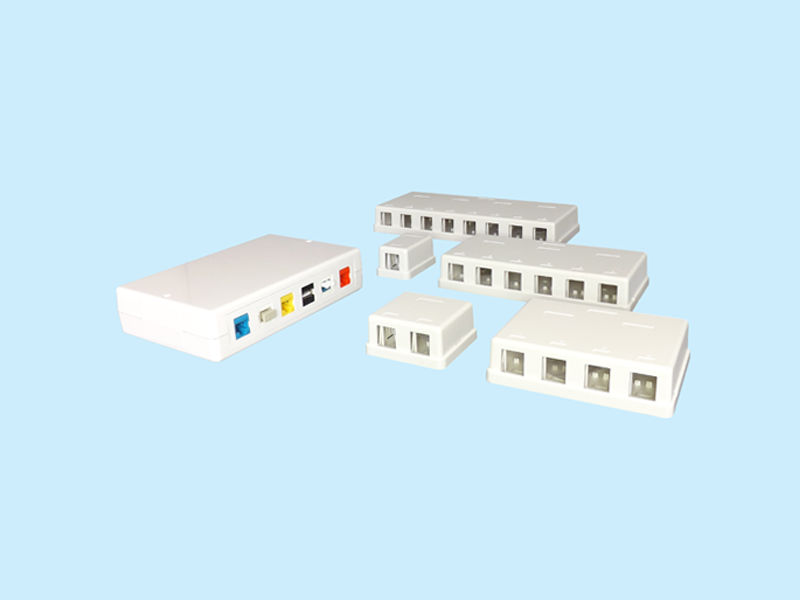

Keystone Housing Range
This range of housings enable all kinds of connectivity to be accommodated, in a junction box, in a wall socket or in an enclosure. The vast majority of our wide range of voice, data and AV keystone connectors can be used with these housings and indeed, they are perfect for multimedia installations. Versions are available for easy snap-in mounting of one, two, four, six, eight or twelve keystone modules.
Distributor(s)
- 1, 2, 4, 6, 8 or 12 keystone ports 19.2 x 14.9mm
- Cable routing 180˚
- KH12 can accommodate six keystones with 180˚ cable routing, or twelve keystones. (Additional insert provided for 180˚ routing)
- Integrated labeling facility
- Operational temperature: -40˚C ~ +70˚C

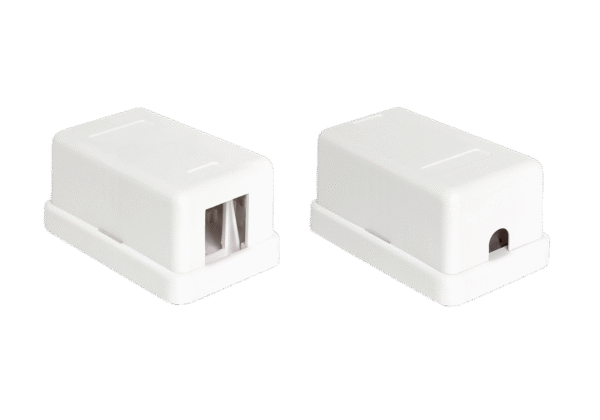

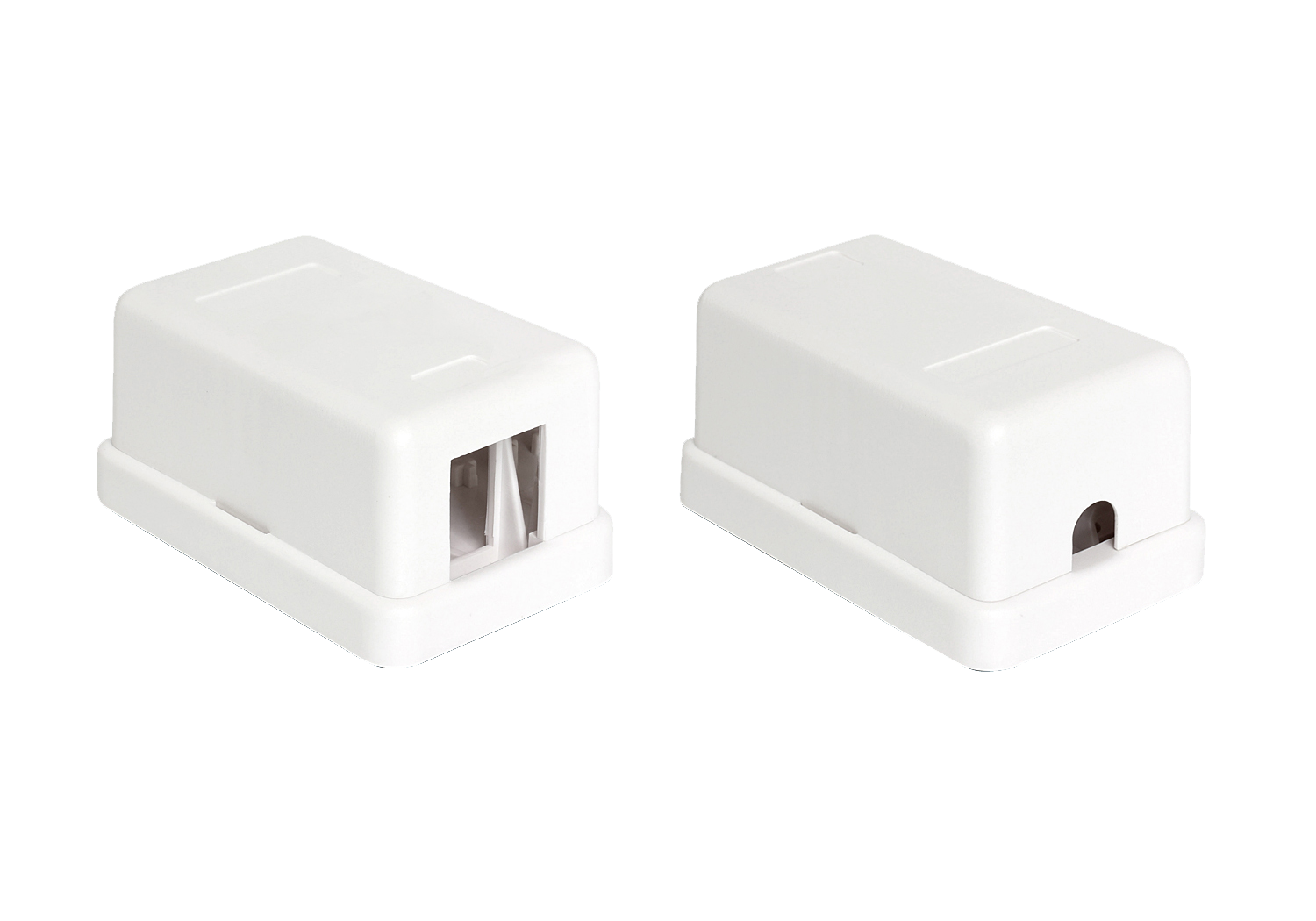

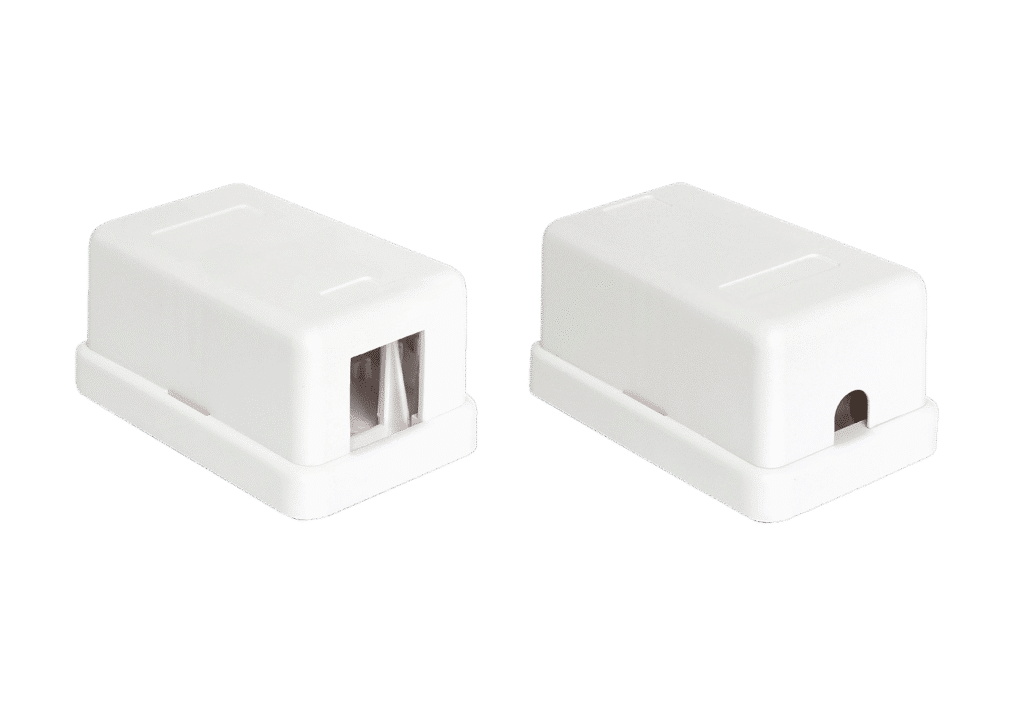

KH1
- Dimensions: 59 x 3.5 x 28.5 mm
- Weight approx: 14g
- Adhesive pad: 15 x 20 mm

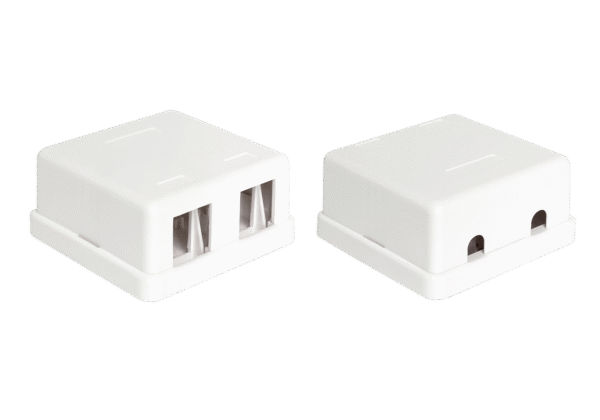

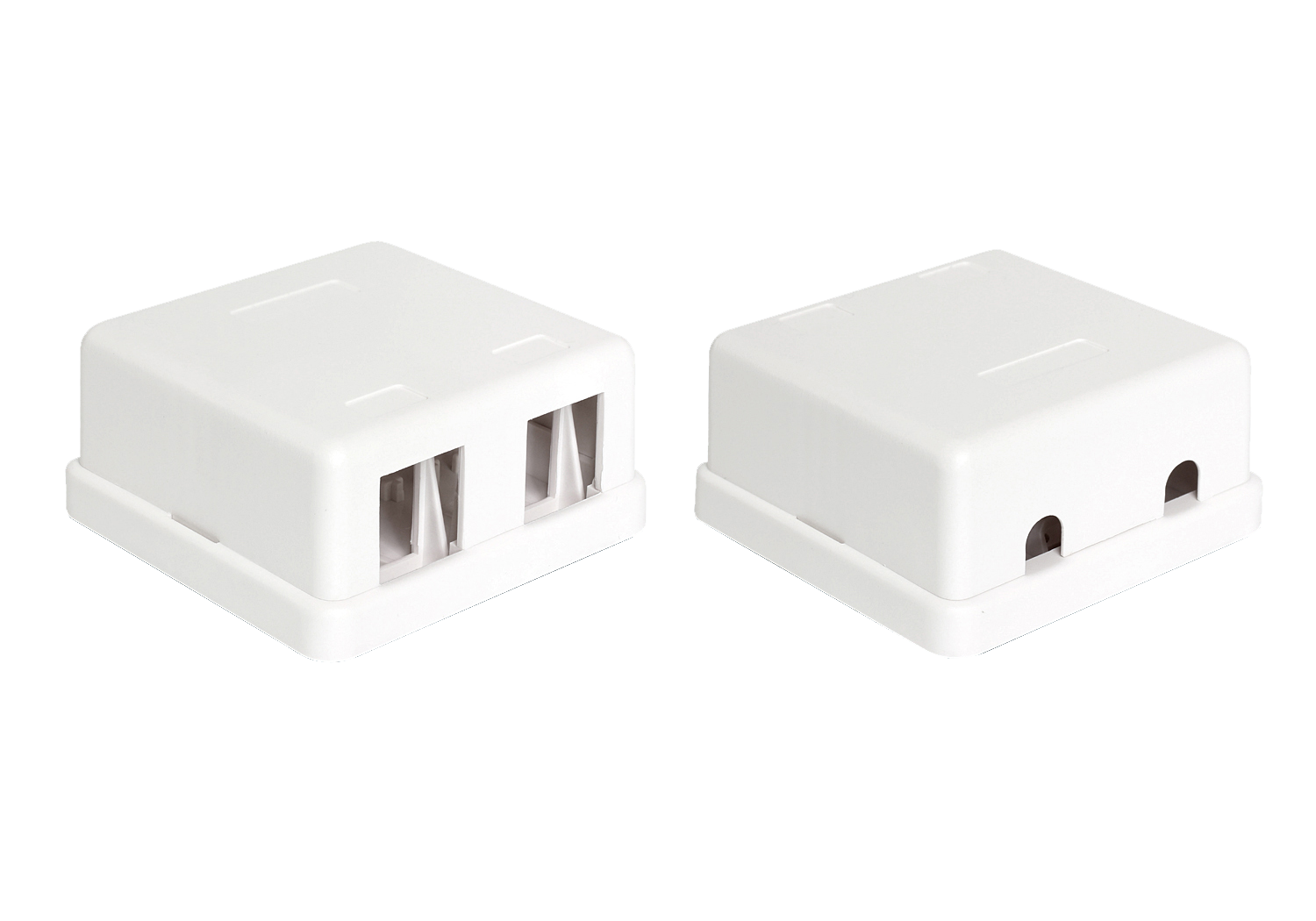

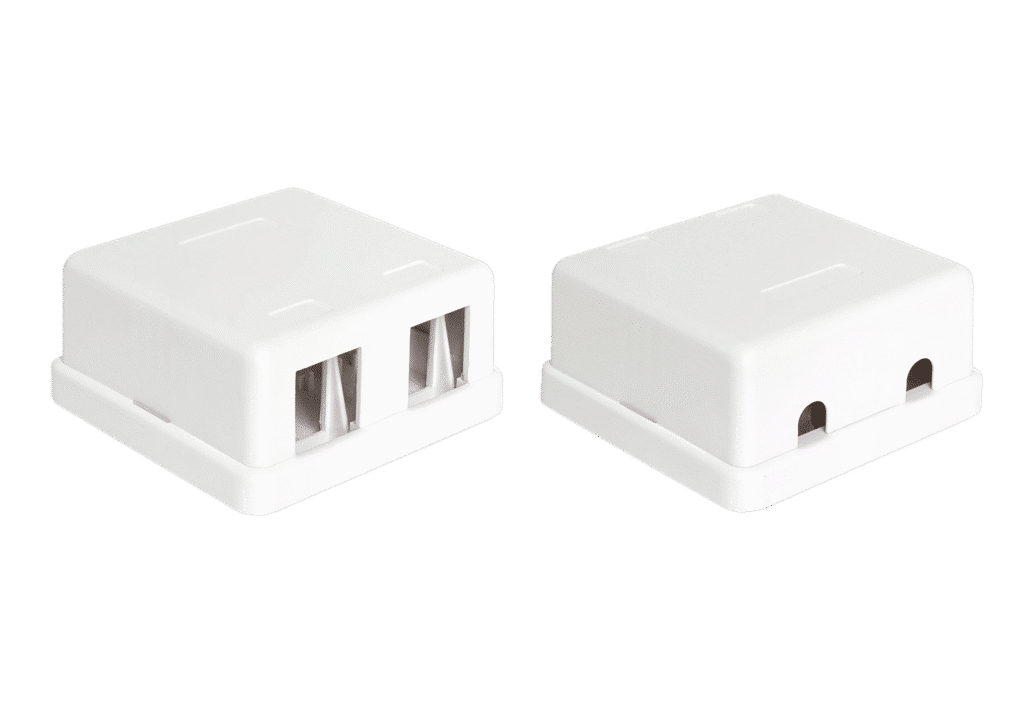

KH2
- Dimensions: 59 x 61.5 x 28.5 mm
- Weight approx: 22g
- Adhesive pad: 45 x 40 mm

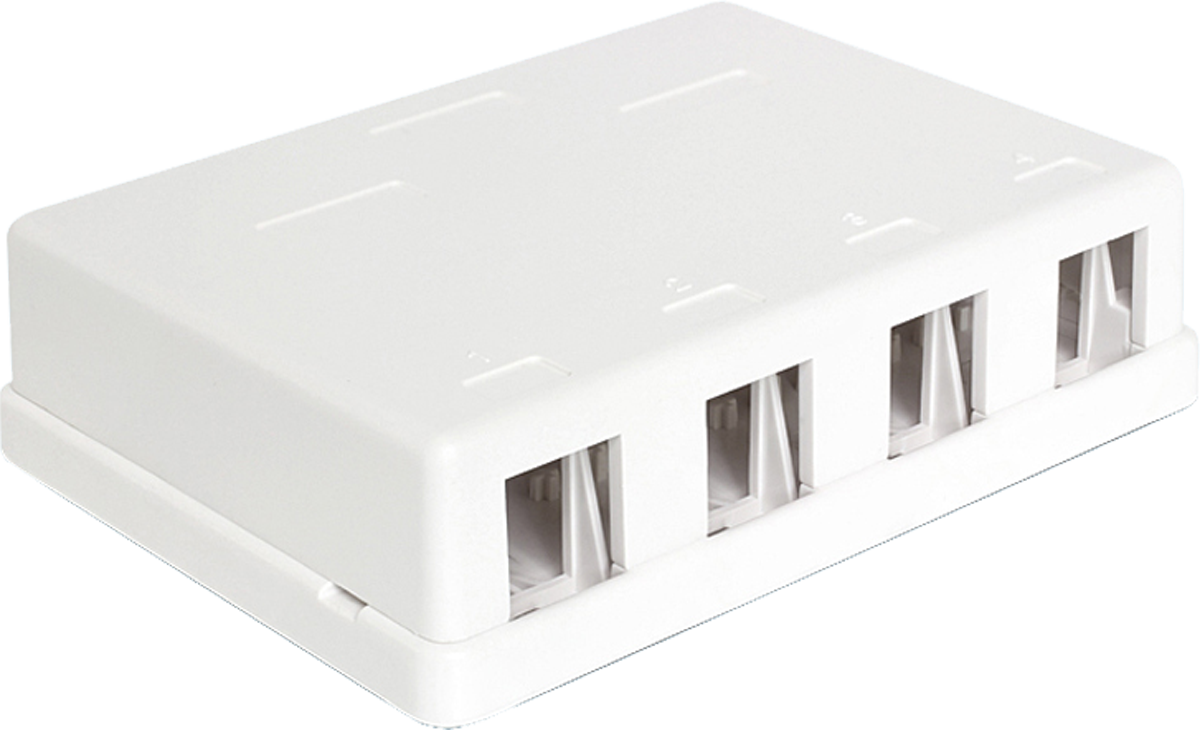

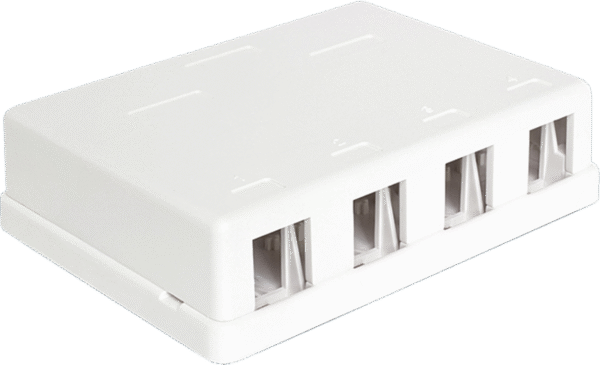

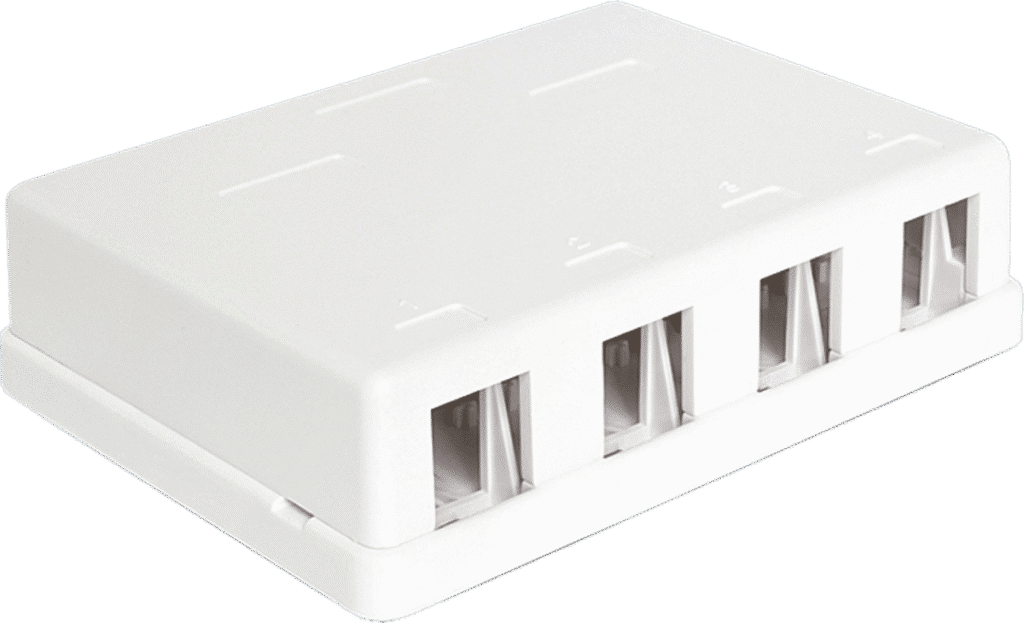

KH4
- Dimensions: 84 x 114 x 29.5 mm
- Weight approx: 78g
- Adhesive pad: 45 x 40 mm (2)
- 2 x Screws
KH6
- Dimensions: 84 x 166 x 30 mm
- Weight approx: 120g
- Adhesive pad: 45 x 40 mm (2)
- 2 x Screws

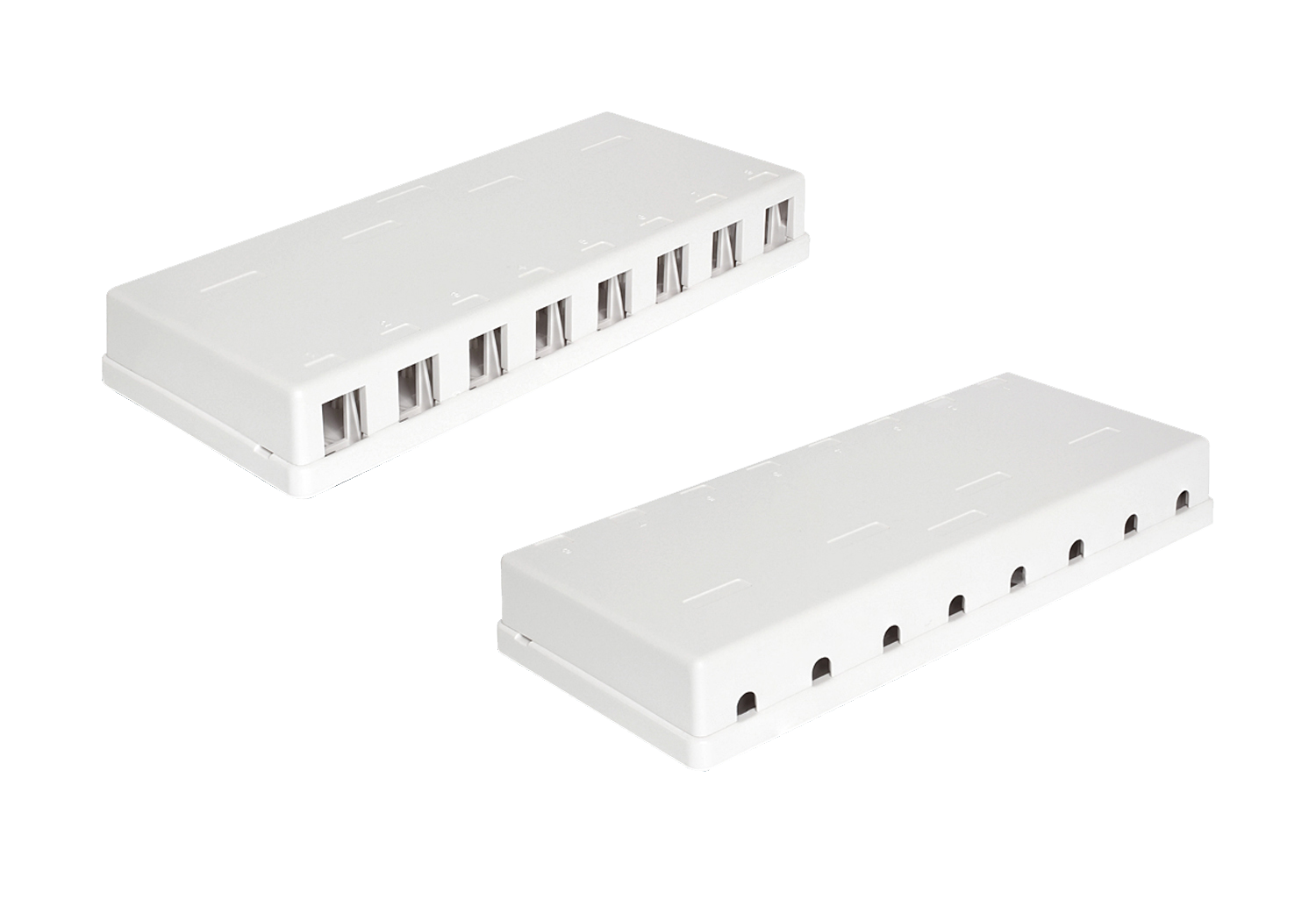

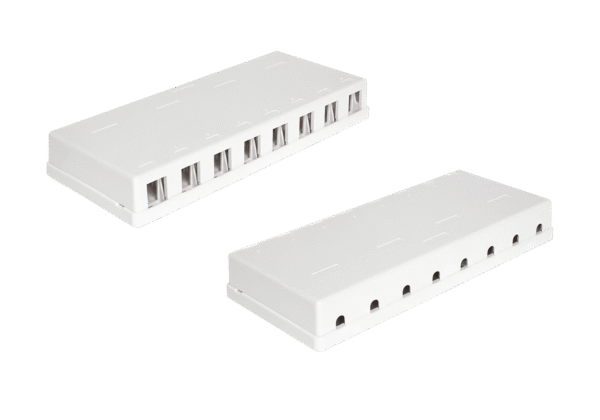

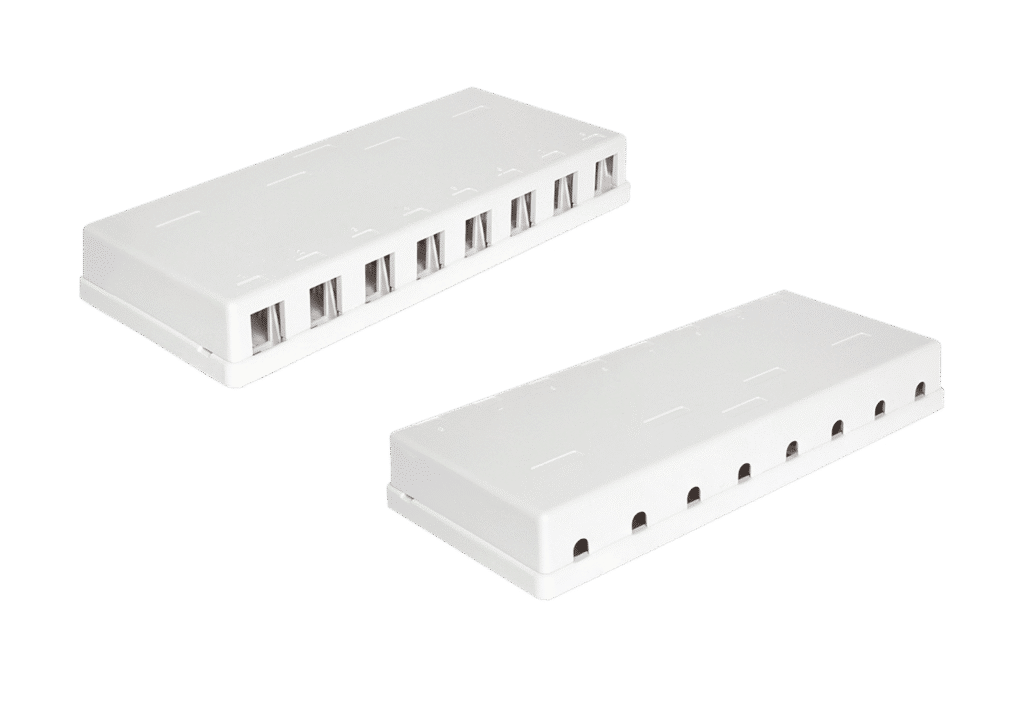

KH8
- Dimensions: 94 x 218 x 30.5 mm
- Weight approx: 180g
- Adhesive pad: 45 x 40 mm (2)

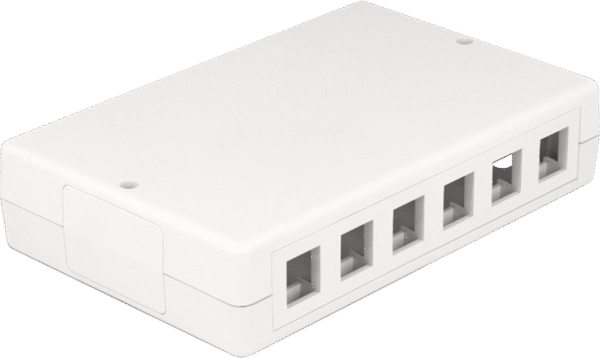

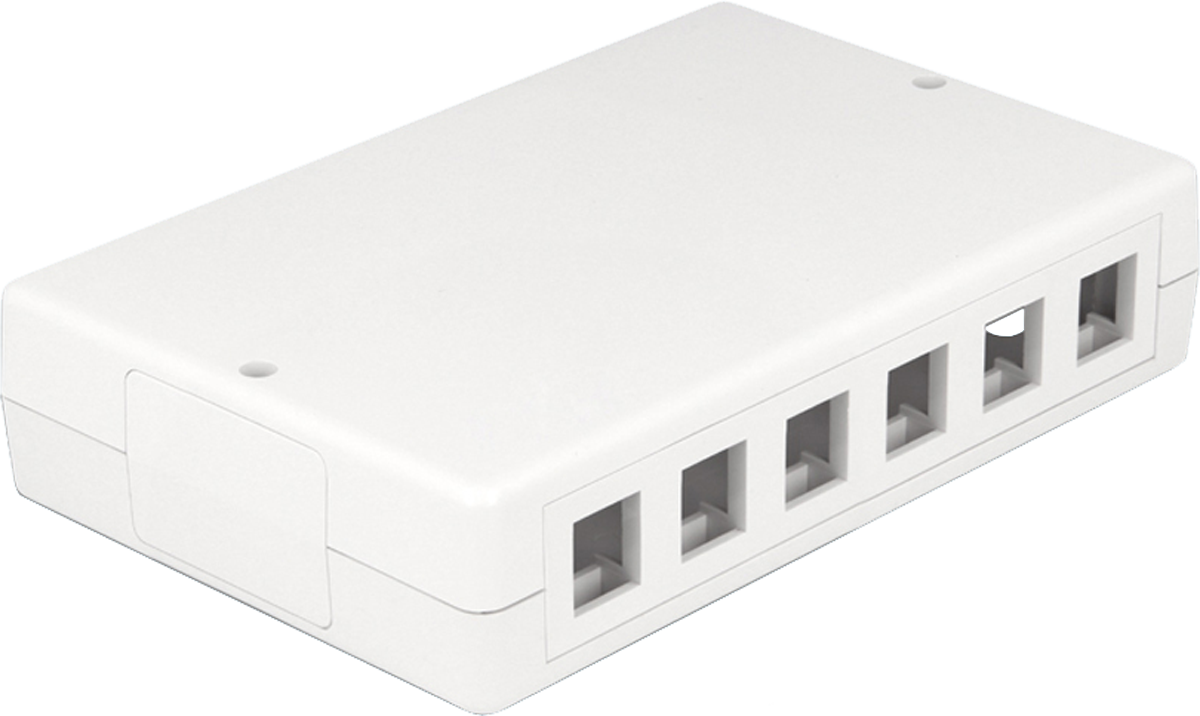

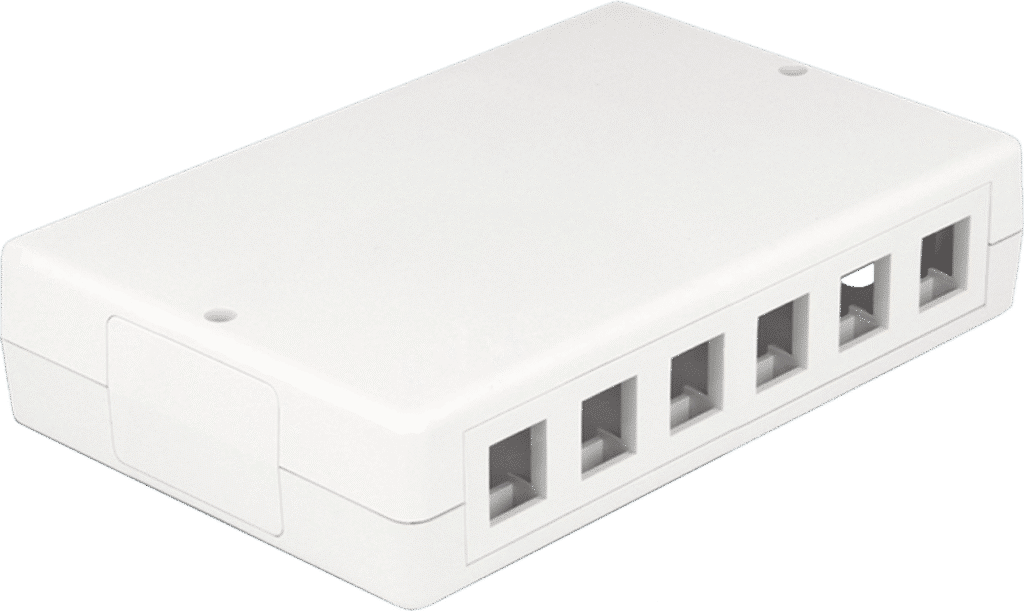

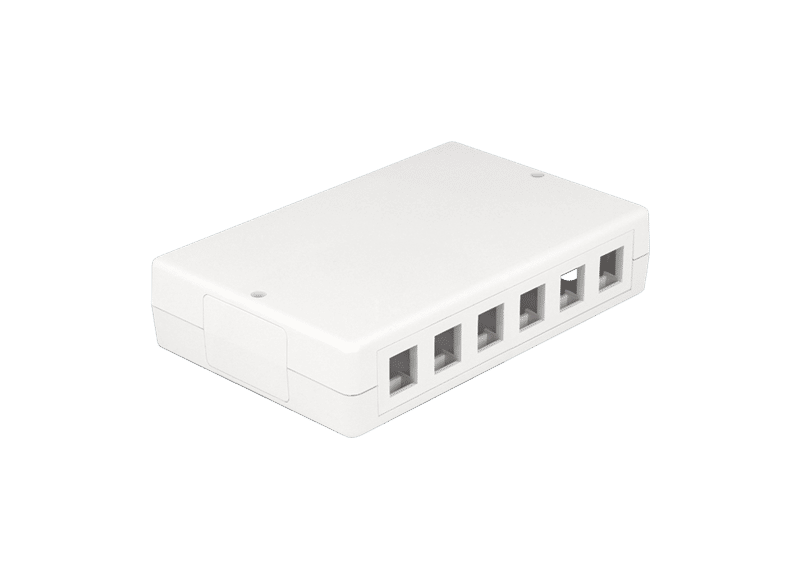

KH12
- Dimensions: 171 x 111.6 x 38 mm
- Weight approx: 158g
- 6 x Screws
